0366-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .048-.064 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness

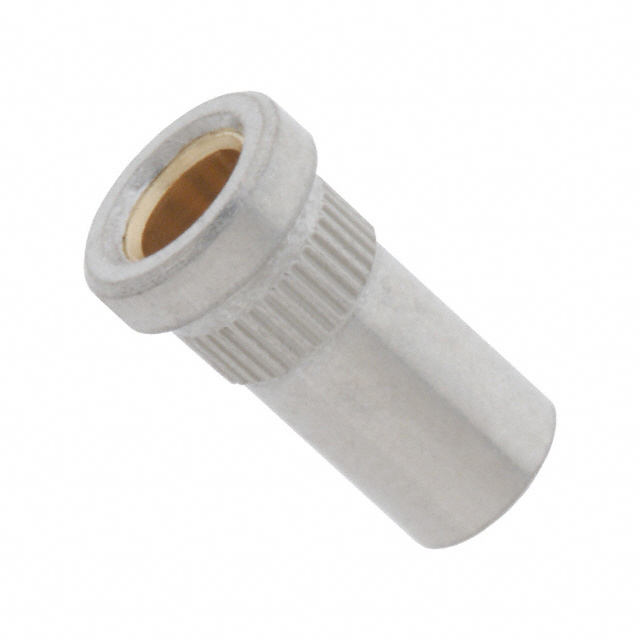

Mill-Max Manufacturing Corp. 0366-0-15-15-13-27-10-0	-55 C	125 °C	Beryllium Copper	3.48 mm	0.137 in	No Tail	6.35 mm	0.25 in	2.77 mm	0.109 in	1.22 mm	0.064 in	0.048 in	1.63 mm	Gold	Press-Fit	2.24 mm	0.088 "	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0366-0-15-80-13-27-10-0	-55 C	125 °C	Beryllium Copper	3.48 mm	0.137 in	No Tail	6.35 mm	0.25 in	2.77 mm	0.109 in	1.22 mm	0.064 in	0.048 in	1.63 mm	Gold	Press-Fit	2.24 mm	0.088 "	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0366-0-15-01-13-14-10-0	-55 C	125 °C	Beryllium Copper	3.48 mm	0.137 in	No Tail	6.35 mm	0.25 in	2.77 mm	0.109 in	1.22 mm	0.064 in	0.048 in	1.63 mm	Gold	Press-Fit	2.24 mm	0.088 "	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0366-0-15-15-13-14-10-0	-55 C	125 °C	Beryllium Copper	3.48 mm	0.137 in	No Tail	6.35 mm	0.25 in	2.77 mm	0.109 in	1.22 mm	0.064 in	0.048 in	1.63 mm	Gold	Press-Fit	2.24 mm	0.088 "	10 Áin	0.25 Ám

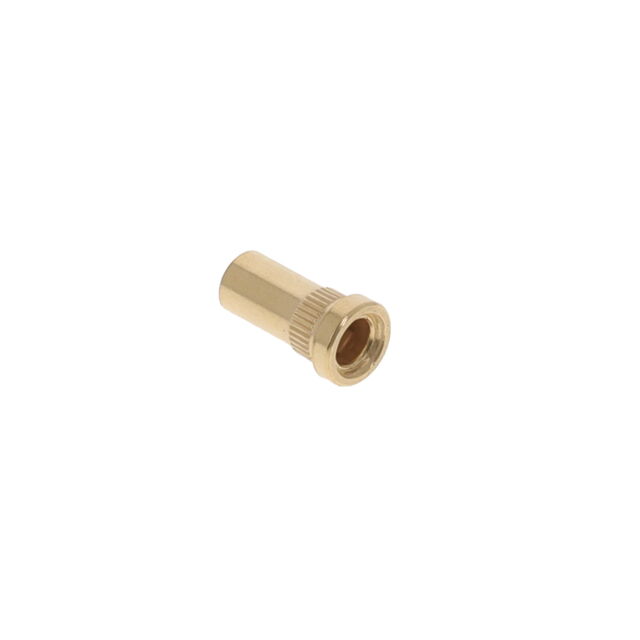

Mill-Max Manufacturing Corp. 0366-0-15-21-13-35-10-0	-55 C	125 °C	Beryllium Copper	3.48 mm	0.137 in	No Tail	6.35 mm	0.25 in	2.77 mm	0.109 in	1.22 mm	0.064 in	0.048 in	1.63 mm		Press-Fit	2.24 mm	0.088 "

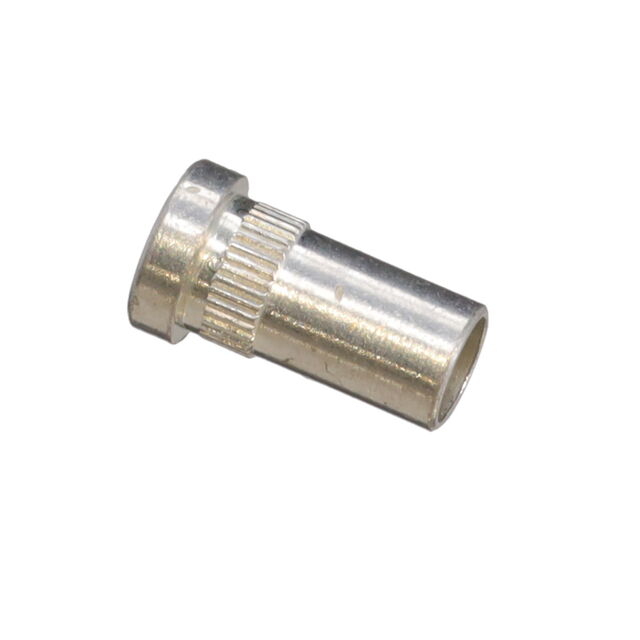

Mill-Max Manufacturing Corp. 0366-0-15-01-13-01-10-0	-55 C	125 °C	Beryllium Copper	3.48 mm	0.137 in	No Tail	6.35 mm	0.25 in	2.77 mm	0.109 in	1.22 mm	0.064 in	0.048 in	1.63 mm	Tin-Lead	Press-Fit	2.24 mm	0.088 "	200 Áin	5.08 Ám
