SAN.M22 Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 22P GOLD SLDR CUP

Part	Features	Number of Positions	Contact Finish - Mating	Shielding	Mounting Type	Backshell Material, Plating	Insert Material	Shell Material	Connector Type	Ingress Protection	Applications	Color	Shell Size - Insert	Primary Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Orientation	Current Rating (Amps)	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]
LEMO SAN.M22.GLA.6A	Backshell	22	Gold	Unshielded	Free Hanging (In-Line)	Sulfone	Polyetheretherketone (PEEK)	Sulfone	Plug Male Pins	IP50 - Dust Protected	Automotive Industrial Medical Testing Equipment & Measurement	Blue Gray	M22	Plastic	6.5 mm	0.209 in	0.256 in	5.3 mm	N (Normal)	2 A	Push-Pull	170 °C	-50 °C

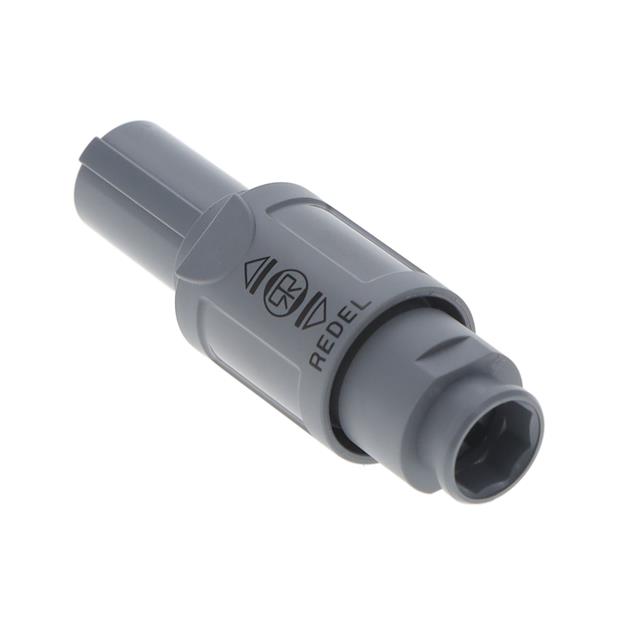

LEMO SAN.M22.GLA.6GZ	Backshell	22	Gold	Unshielded	Free Hanging (In-Line)	Sulfone	Polyetheretherketone (PEEK)	Sulfone	Plug Male Pins	IP50 - Dust Protected	Automotive Industrial Medical Testing Equipment & Measurement	Gray	M22	Plastic	6.5 mm	0.209 in	0.256 in	5.3 mm	N (Normal)	2 A	Push-Pull	170 °C	-50 °C
LEMO SAN.M22.GLA.7GZ	Backshell	22	Gold	Unshielded	Free Hanging (In-Line)	Sulfone	Polyetheretherketone (PEEK)	Sulfone	Plug Male Pins	IP50 - Dust Protected	Automotive Industrial Medical Testing Equipment & Measurement	Gray	M22	Plastic	7.5 mm	0.26 "	0.295 in	6.6 mm	N (Normal)	2 A	Push-Pull	170 °C	-50 °C
