NWE32 Series

Catalog

CONN PCI EXP FMALE 64POS 0.039

Part	Material - Insulation	Color	Contact Type	Features	Contact Finish Thickness	Read Out	Contact Finish	Number of Positions	Number of Rows [custom]	Card Thickness	Card Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Card Type	Mounting Type	Termination	Gender	Pitch	Pitch	Number of Positions/Bay/Row

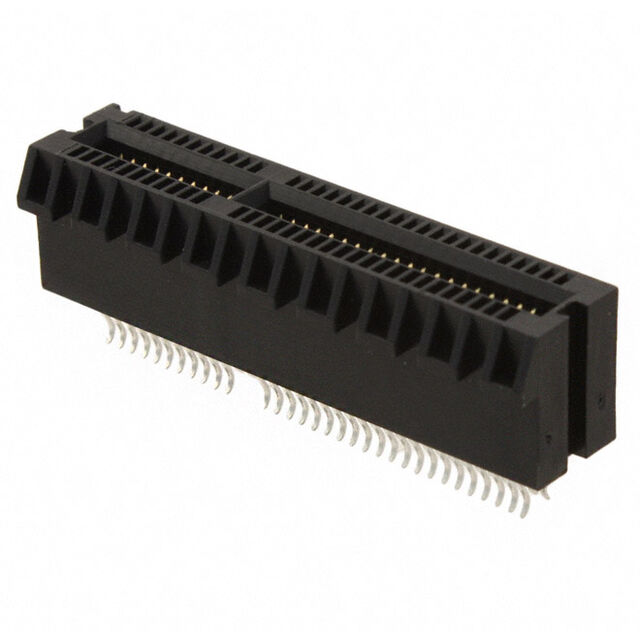

Sullins Connector Solutions NWE32DHRN-T941	Polyamide (PA46) Nylon 4/6	Black	Cantilever	Card Extender Locking Ramp	Flash	Dual	Gold	64	2	1.57 mm	0.062 in	-55 C	105 ░C	Phosphor Bronze	PCI Express™	Board Edge Straddle Mount	Solder	Female	1 mm	0.039 in	32

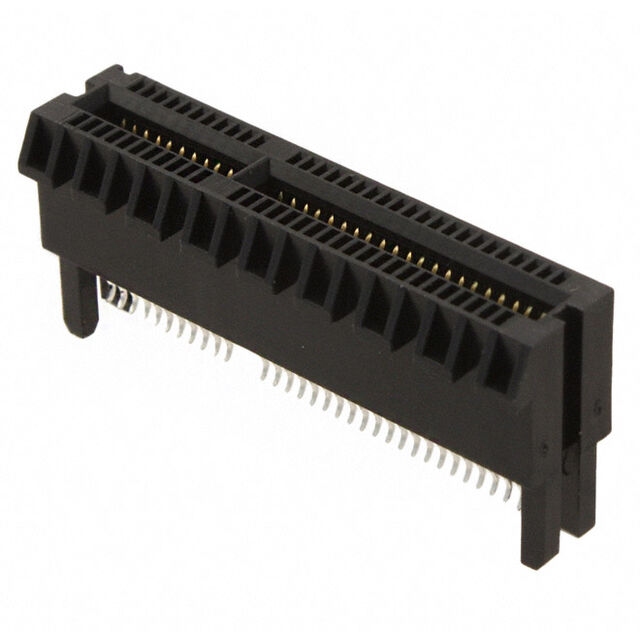

Sullins Connector Solutions NWE32DHRN-T9410	Polyamide (PA46) Nylon 4/6	Black	Cantilever	Board Guide Card Extender Locking Ramp	Flash	Dual	Gold	64	2	1.57 mm	0.062 in	-55 C	105 ░C	Phosphor Bronze	PCI Express™	Board Edge Straddle Mount	Solder	Female	1 mm	0.039 in	32

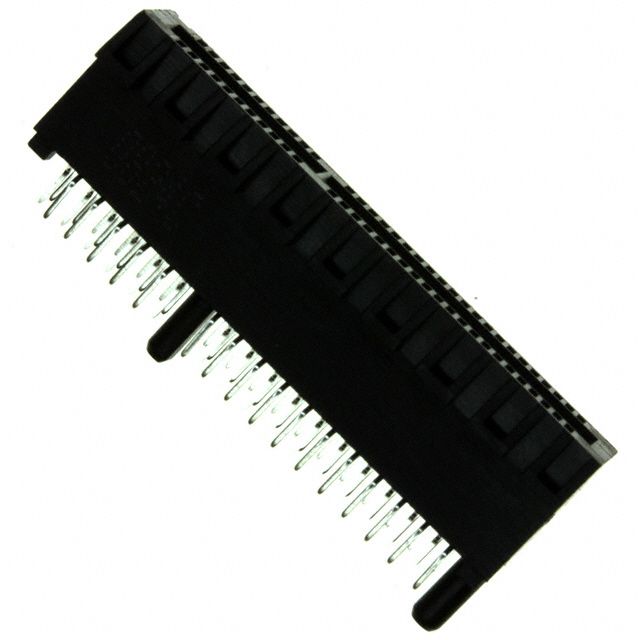

Sullins Connector Solutions NWE32DHHN-T911	Polyamide (PA46) Nylon 4/6	Black	Cantilever	Board Guide Locking Ramp	Flash	Dual	Gold	64	2	1.57 mm	0.062 in	-55 C	85 °C	Phosphor Bronze	PCI Express™	Through Hole	Solder Staggered	Female	1 mm	0.039 in	32
