747562 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

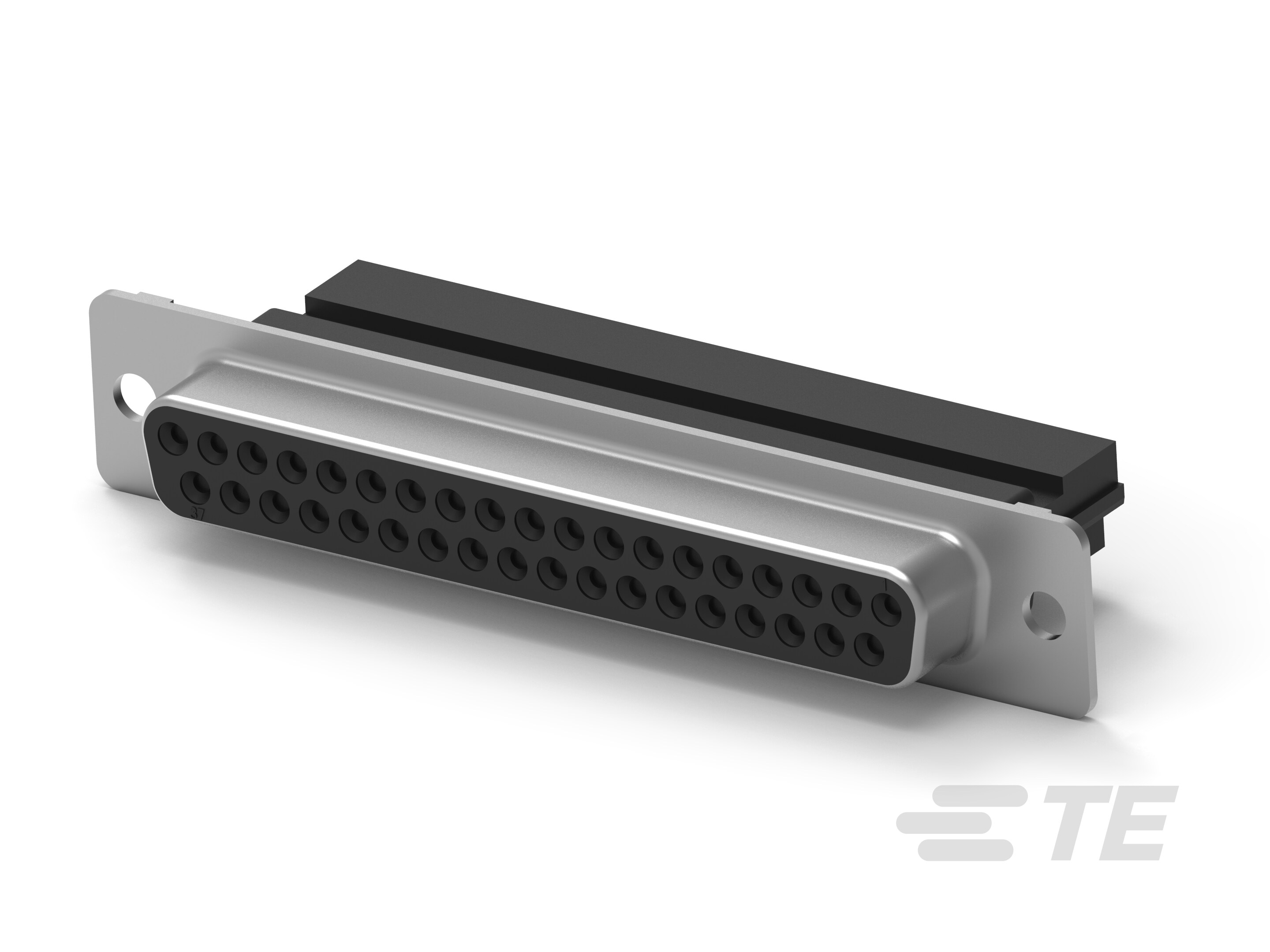

CONN D-SUB RCPT 37POS IDC
| Part | Color | Wire Gauge [Max] | Wire Gauge [Min] | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Contact Type | Connector Type | Mounting Type | Number of Rows [custom] | Flange Feature | Number of Positions | Termination | Connector Style | Current Rating (Amps) | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | 26 AWG | 22 AWG | Thermoplastic | -55 C | 105 ░C | Phosphor Bronze | 250 V | Signal | Receptacle Female Sockets | Free Hanging (In-Line) | 2 | Housing/Shell (Unthreaded) | 37 | Discrete Wire IDC | D-Sub | Varies by Wire Gauge | Gold | 4 | DC C | UL94 V-0 | 30 Áin | 0.76 Ám |
