SDS224 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

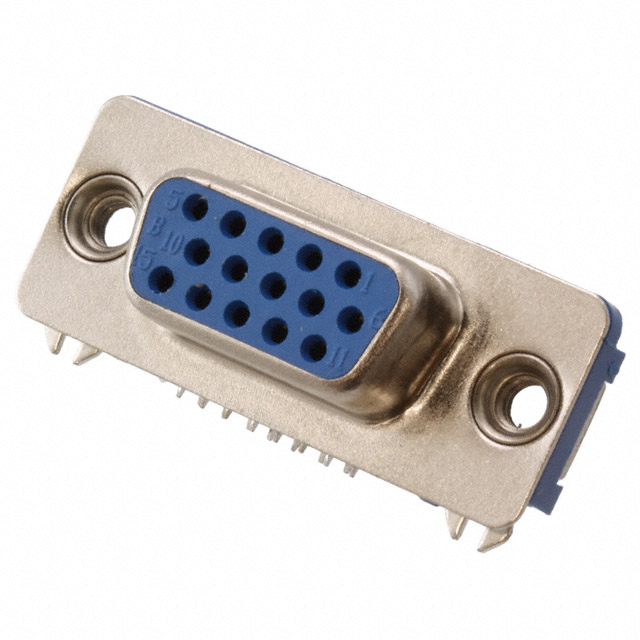

CONN D-SUB HD RCPT 15P R/A SLDR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Form | Voltage Rating | Color | Connector Type | Number of Rows [custom] | Shell Material, Finish | Features | Contact Finish | Termination | Material Flammability Rating | Backset Spacing | Backset Spacing | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Number of Positions | Flange Feature | Flange Feature | Current Rating (Amps) | Contact Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | Blue | Receptacle Female Sockets | 3 | Nickel Plated Steel | Board Lock | Gold | Solder | UL94 V-0 | 0.063 in | 1.6 mm | Flash | (DE E) High Density | 1 | D-Sub High Density | 15 | Housing/Shell | 4-40 | 3 A | Signal | Board Edge Right Angle Through Hole |
 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | Blue | Receptacle Female Sockets | 3 | Board Lock | Gold | Solder | UL94 V-0 | 0.063 in | 1.6 mm | Flash | (DE E) High Density | 1 | D-Sub High Density | 15 | Housing/Shell | 4-40 | 3 A | Signal | Board Edge Right Angle Through Hole | |

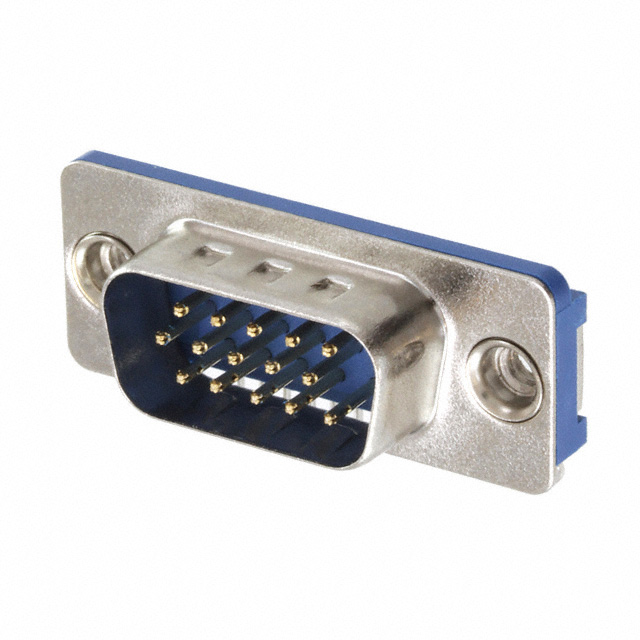

 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | Blue | Plug Male Pins | 3 | Nickel Plated Steel | Board Lock Grounding Indents | Gold | Solder | UL94 V-0 | 0.063 in | 1.6 mm | Flash | (DE E) High Density | 1 | D-Sub High Density | 15 | Housing/Shell | 4-40 | 3 A | Signal | Board Edge Right Angle Through Hole |
