EBHA Series

Manufacturer: Adam Tech

Catalog

EURO BLOCK 2P

Part	Material Flammability Rating	Insulation Height	Insulation Height	Wire Strip Length [Min]	Wire Strip Length [Max]	Wire Gauge or Range - mm˛	Screw Size	Torque - Screw	Torque - Screw	Contact Material	Color	Termination Style	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm²	Positions Per Level	Mounting Type	Type	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Plug Wire Entry	Pitch	Pitch	Number of Levels	Contact Mating Finish

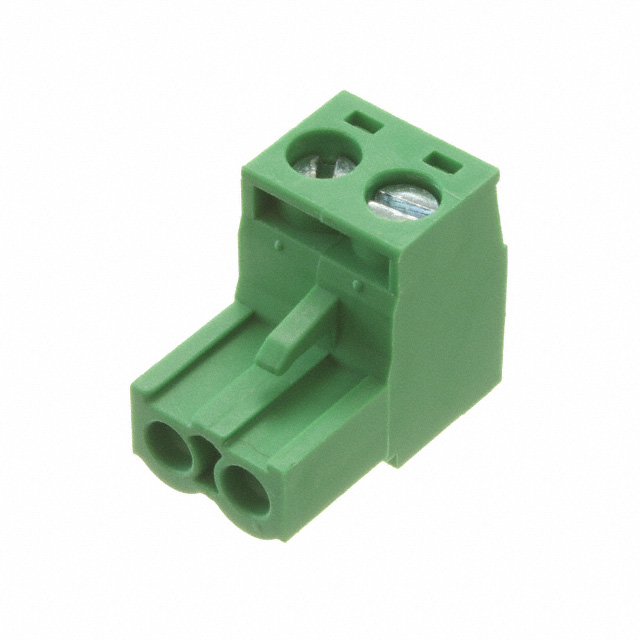

Adam Tech EBHA-02-D	UL94 V-0	0.594 in	15.09 mm	7 mm	8 mm	2.5 mm˛	M3	4.4 Lb-In	0.5 Nm	Phosphor Bronze	Green	Screw - Leaf Spring Wire Guard	2	14 AWG	28 AWG	2.5 mm²	2	Free Hanging (In-Line)	Plug Female Sockets	300 V	-40 C	105 ░C	180 °	5.08 mm	0.2 in	1	Nickel

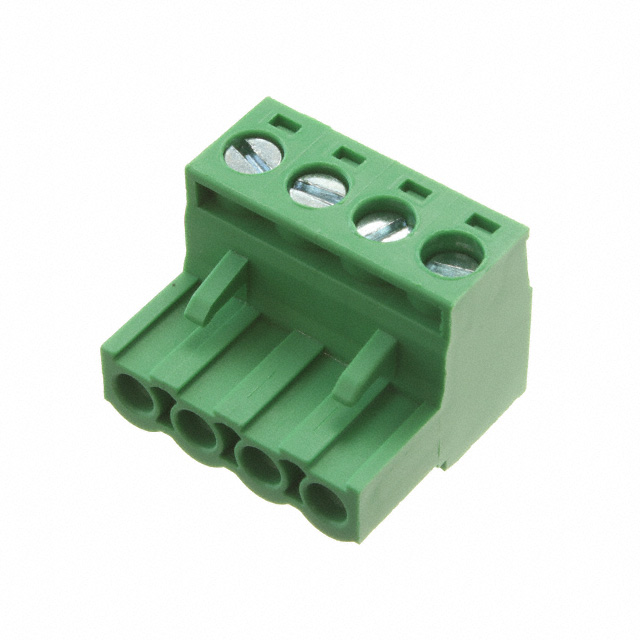

Adam Tech EBHA-04-C	UL94 V-0	0.594 in	15.09 mm	7 mm	8 mm	2.5 mm˛	M3	4.4 Lb-In	0.5 Nm	Phosphor Bronze	Green	Screw - Leaf Spring Wire Guard	4	14 AWG	28 AWG	2.5 mm²	4	Free Hanging (In-Line)	Plug Female Sockets	300 V	-40 C	105 ░C	180 °	5 mm	0.197 in	1	Nickel

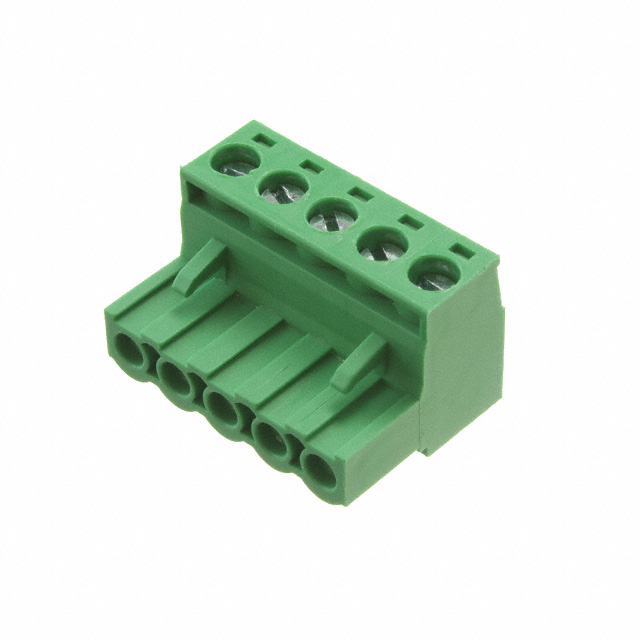

Adam Tech EBHA-05-C	UL94 V-0	0.594 in	15.09 mm	7 mm	8 mm	2.5 mm˛	M3	4.4 Lb-In	0.5 Nm	Phosphor Bronze	Green	Screw - Leaf Spring Wire Guard	5	14 AWG	28 AWG	2.5 mm²	5	Free Hanging (In-Line)	Plug Female Sockets	300 V	-40 C	105 ░C	180 °	5 mm	0.197 in	1	Nickel

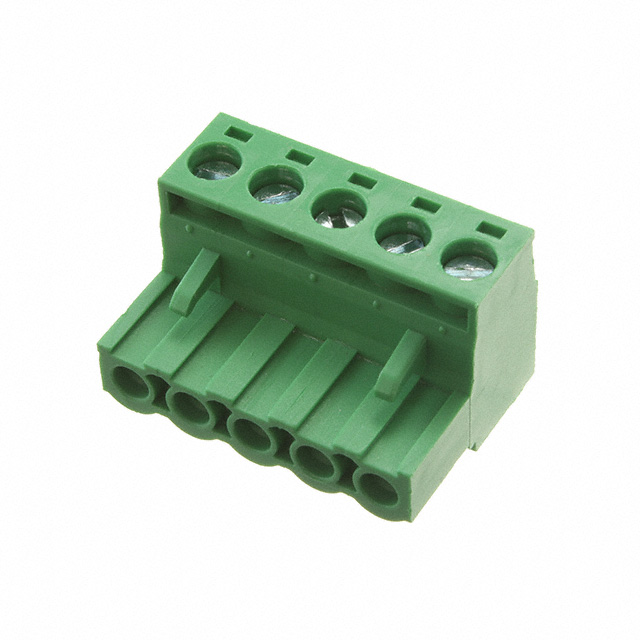

Adam Tech EBHA-05-D	UL94 V-0	0.594 in	15.09 mm	7 mm	8 mm	2.5 mm˛	M3	4.4 Lb-In	0.5 Nm	Phosphor Bronze	Green	Screw - Leaf Spring Wire Guard	5	14 AWG	28 AWG	2.5 mm²	5	Free Hanging (In-Line)	Plug Female Sockets	300 V	-40 C	105 ░C	180 °	5.08 mm	0.2 in	1	Nickel
