320572 Series

Catalog

TERMINAL, RING TONGUE, 0.313", CRIMP, RED

Part	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Terminal Type	Color	Contact Finish	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Material - Insulation	Mounting Type	Contact Material	Thickness	Thickness	Features	Insulation	Wire Gauge	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Length - Overall [x]	Length - Overall [x]
TE Connectivity Raychem Cable Protection 2-320572-1	11.91 mm	0.469 in	Crimp	22 AWG	16 AWG	0.3125 Stud	Circular	Red	Tin	2.03 mm	3.18 mm	0.125 "	0.08 in	Nylon Polyamide (PA)	Free Hanging (In-Line)	Copper	0.031 in	0.79 mm	Serrated Termination	Insulated

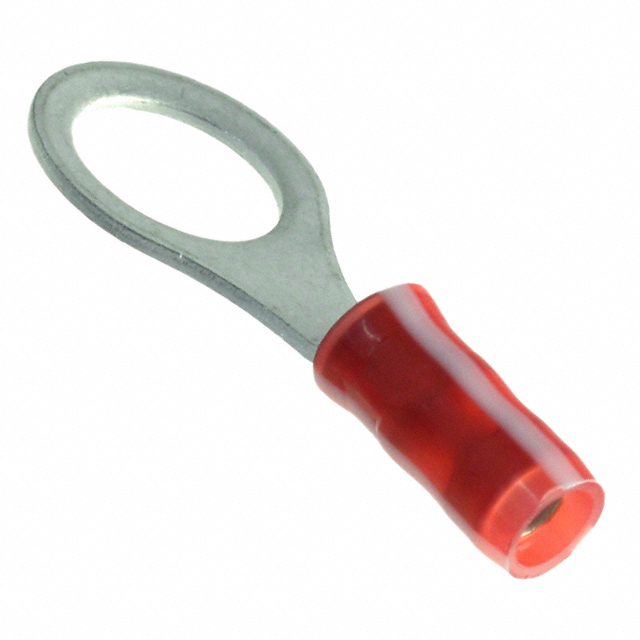

TE Connectivity Raychem Cable Protection 2-320572-4	11.91 mm	0.469 in	Crimp			0.3125 Stud	Circular	Red White Stripe	Tin					Nylon Polyamide (PA)	Free Hanging (In-Line)	Copper	0.031 in	0.79 mm	Insulation Restriction	Insulated	18 AWG	0.056 in	0.11 in	2.79 mm	1.42 mm	1.14 in	28.96 mm
