726-048 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 48POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Number of Positions	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Gender	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Pitch	Pitch	Read Out	Color	Termination Rows	Number of Rows

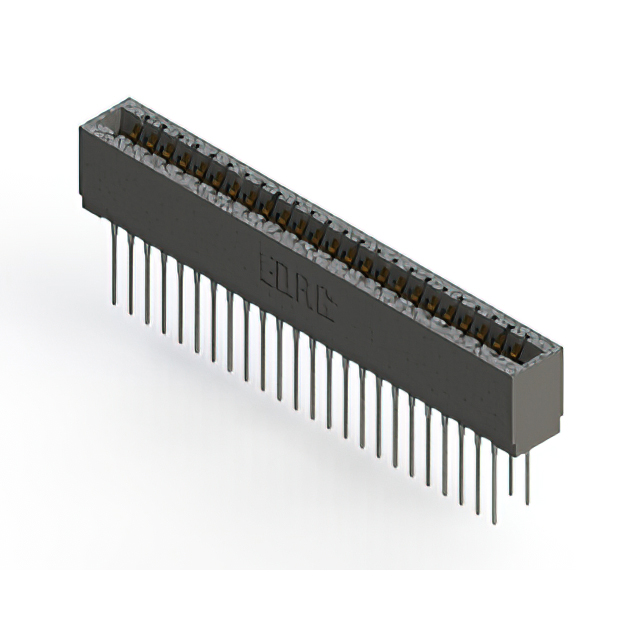

EDAC Inc. 726-048-545-201	Polyester Thermoplastic	2	Gold	48	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Female	Cantilever	Through Hole	-40 C	105 ░C	2	3.18 mm	0.125 in	Dual	Black
EDAC Inc. 726-048-527-201	Polyester Thermoplastic	2	Gold	48	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Female	Cantilever	Through Hole	-40 C	105 ░C	2	3.18 mm	0.125 in	Dual	Black

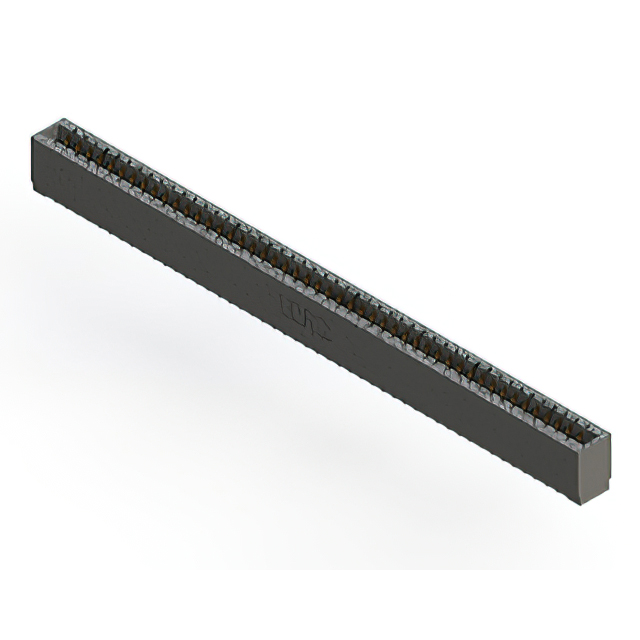

EDAC Inc. 726-048-525-101	Polyester Thermoplastic		Gold	48	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	48	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Female	Cantilever	Through Hole	-40 C	105 ░C		3.18 mm	0.125 in	Single	Black	1	1
EDAC Inc. 726-048-527-101	Polyester Thermoplastic		Gold	48	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	48	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Female	Cantilever	Through Hole	-40 C	105 ░C		3.18 mm	0.125 in	Single	Black	1	1

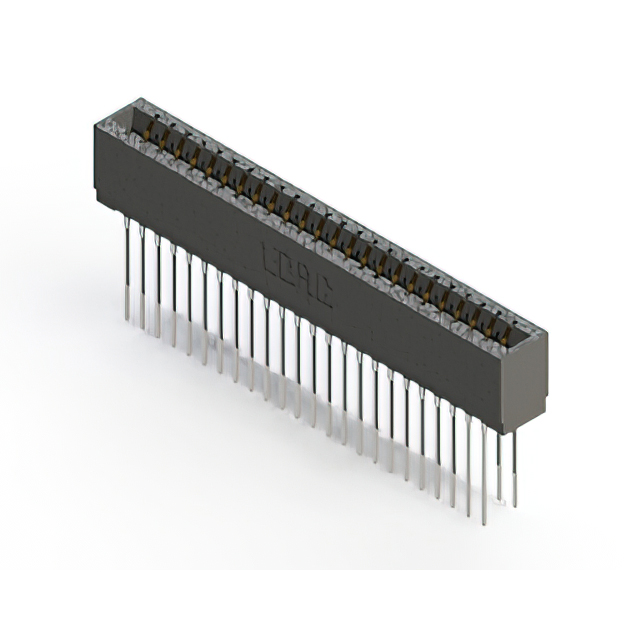

EDAC Inc. 726-048-541-201	Polyester Thermoplastic	2	Gold	48	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Female	Cantilever	Through Hole	-40 C	105 ░C	2	3.18 mm	0.125 in	Dual	Black
EDAC Inc. 726-048-541-101	Polyester Thermoplastic		Gold	48	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	48	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Female	Cantilever	Through Hole	-40 C	105 ░C		3.18 mm	0.125 in	Single	Black	1	1
EDAC Inc. 726-048-540-101	Polyester Thermoplastic		Gold	48	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	48	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Female	Cantilever	Through Hole	-40 C	105 ░C		3.18 mm	0.125 in	Single	Black	1	1
EDAC Inc. 726-048-525-201	Polyester Thermoplastic	2	Gold	48	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Female	Cantilever	Through Hole	-40 C	105 ░C	2	3.18 mm	0.125 in	Dual	Black
