MDSM Series

Catalog

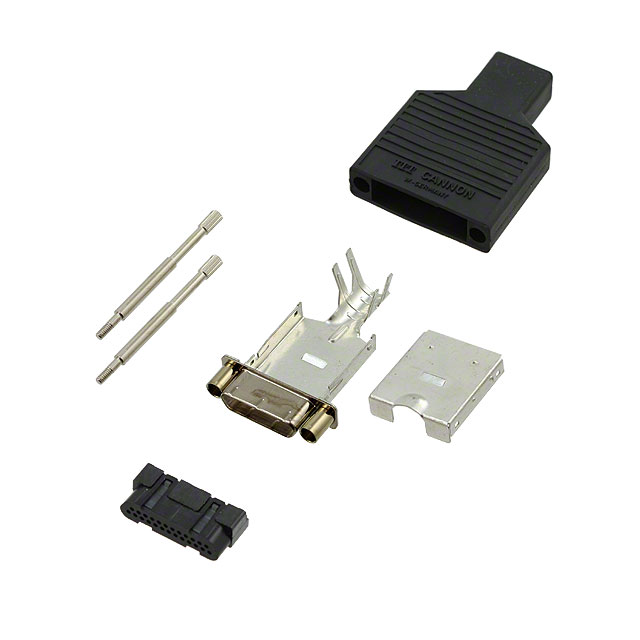

CONN MICRO-D HOUSING PLUG 9POS

Part	Color	Note	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Connector Type	Mounting Type	Connector Style	Contact Type	Features	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Number of Rows [custom]	Flange Feature	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Contact Finish	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Current Rating (Amps)
ITT Cannon, LLC MDSM-9PC-Z7-0-VS1	Black	Contacts Not Included	Thermoplastic	-55 C	125 °C	500	Plug for Male Contacts	Free Hanging (In-Line)	D-Type Micro-D	Signal	Shielded	9	0.1	0.05	Steel Tin-Nickel Plated	2
ITT Cannon, LLC MDSM-9SC-Z24-VS1	Black	Contacts Not Included	Thermoplastic	-55 C	125 °C	500	Receptacle for Female Contacts	Free Hanging (In-Line)	D-Type Micro-D	Signal	Shielded	9	0.1	0.05	Steel Tin-Nickel Plated	2	2-56
ITT Cannon, LLC MDSM-9PC-Z42-0-VS1	Black	Contacts Not Included	Thermoplastic	-55 C	125 °C	500	Plug for Male Contacts	Free Hanging (In-Line)	D-Type Micro-D	Signal	Shielded	9	0.1	0.05	Steel Tin-Nickel Plated	2	Mating Side Female Screwlock (2-56)
ITT Cannon, LLC MDSM-25SC-Z11-VS1	Black	Contacts Not Included	Thermoplastic	-55 C	125 °C	500	Receptacle for Female Contacts	Free Hanging (In-Line)	D-Type Micro-D	Signal	Shielded	25	0.1	0.05	Steel Tin-Nickel Plated	2	2-56
ITT Cannon, LLC MDM-9SSP-A30							Receptacle Female Sockets	Panel Mount	D-Type Micro-D	Signal	Shielded	9				2	Mating Side Female Screwlock (2-56)	0.043 in	0.05 in	Gold	Aluminum	Anodized Black Plated	3 A
