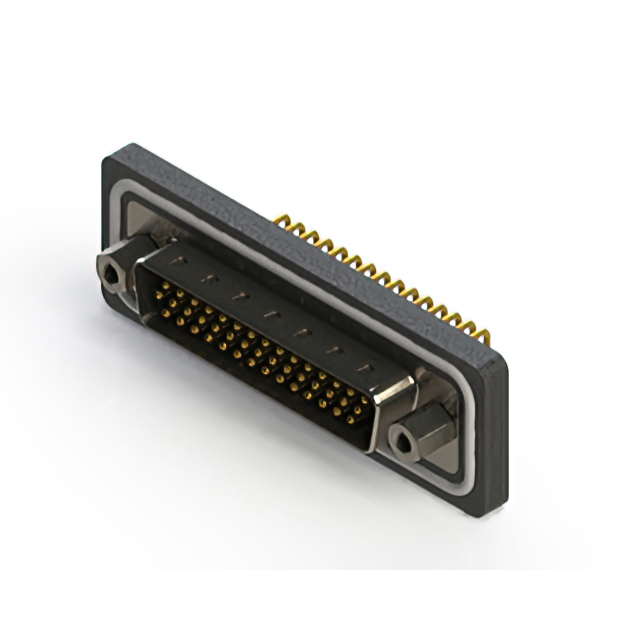

633-W44 Series
Manufacturer: EDAC Inc.
Beta
⌘K
633W (WATERPROOF) SERIES RIGHT A
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Material | Current Rating (Amps) | Mounting Type | Contact Type | Features | Termination | Ingress Protection | Material Flammability Rating | Shell Material, Finish | Number of Rows [custom] | Contact Finish | Shell Size, Connector Layout | Connector Type | Contact Finish Thickness | Number of Positions | Connector Style | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | Copper Alloy | 3 A | Right Angle Through Hole | Signal | Grounding Indents Shielded | Solder | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel Plated Steel | 3 | Gold | 3 | Plug Male Pins | Flash | 44 | D-Sub High Density | 4-40 Mating Side Female Screwlock | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | Copper Alloy | 3 A | Right Angle Through Hole | Signal | Grounding Indents Shielded | Solder | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel Plated Steel | 3 | Gold | 3 | Plug Male Pins | 44 | D-Sub High Density | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám |
