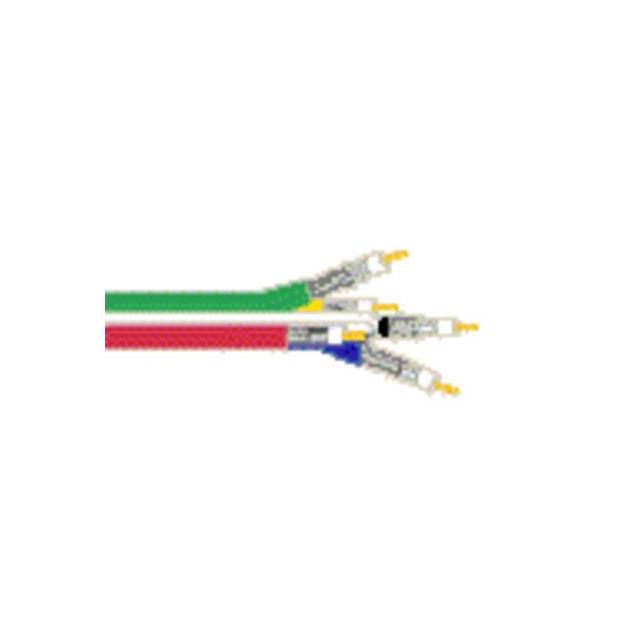

1505S5 Series
Manufacturer: Belden Inc.
Beta
⌘K
BONDED FILLER COMPOSITE
| Part | Shield Material | Shield Coverage | Shield Type | Number of Conductors | Cable Type | Ratings | Usage | Conductor Material | Wire Gauge | Conductor Strand | Voltage | Length | Length | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester Copper Tinned | 95 % 100 % | Braid Foil | 5 | Multi-Conductor | UL Style CMR | Video | Copper Bare | 20 AWG | Solid | 300 VDC | 152.4 m | 500 ft | Polyethylene (PE) | 75 ░C | -35 °C |
Belden Inc. | Aluminum Polyester Copper Tinned | 95 % 100 % | Braid Foil | 5 | Multi-Conductor | UL Style CMR | Video | Copper Bare | 20 AWG | Solid | 300 VDC | 304.8 m | 1000 ft | Polyethylene (PE) | 75 ░C | -35 °C |
