R1G120 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

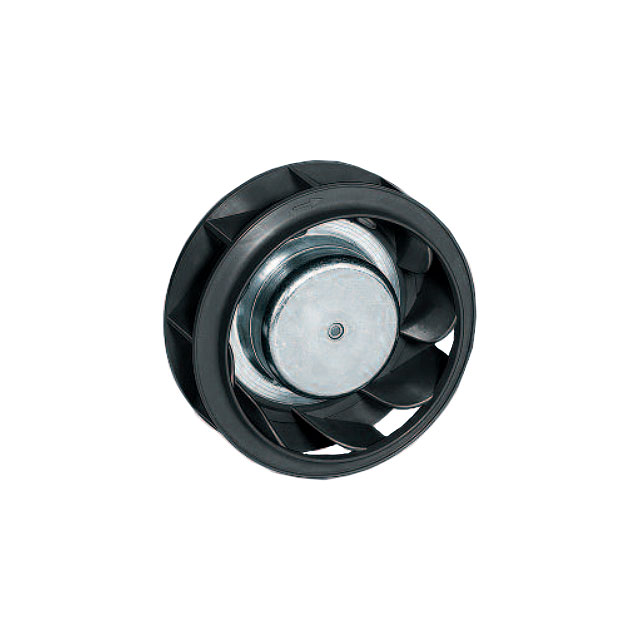

FAN IMP MTRZD 120X54MM 24VDC
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Voltage - Rated | Ingress Protection | Features | Fan Type | Noise | Termination | RPM | Size / Dimension | Size / Dimension [diameter] | Power (Watts) | Approval Agency | Width [y] | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 1.2 A | 16 VDC | 28 V | Polyamide (PA66) Nylon 6/6 Fiberglass Reinforced | 24 VDC | IP20 | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Motorized Impellers | 62 dB(A) | 4 Wire Leads with Splice Terminals | 4060 RPM | Round | 120 mm | 26 W | EAC | 54 mm | Ball | 50 °C | -25 °C | -25 °C | 50 °C |
