PRPC014 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 14POS 2.54MM

Part	Number of Rows	Termination	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Post	Connector Type	Contact Length - Post	Contact Length - Post	Style	Contact Shape	Number of Positions	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Finish - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Material	Insulation Height	Insulation Height	Contact Type	Contact Finish - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Fastening Type	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]

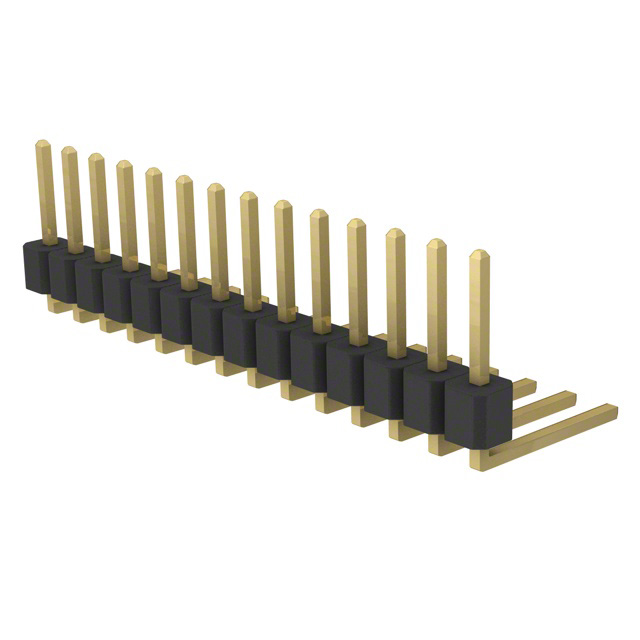

Sullins Connector Solutions PRPC014SBCN-M71RC	1	Solder	Flash	All	Polybutylene Terephthalate (PBT)	Flash	Header Breakaway	8.13 mm	0.32 in	Board to Board Cable	Square	14	0.23 in	5.84 mm	Black	Gold	Right Angle Through Hole	-40 C	105 ░C	Unshrouded	Brass	0.098 "	2.5 mm	Male Pin	Gold	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull

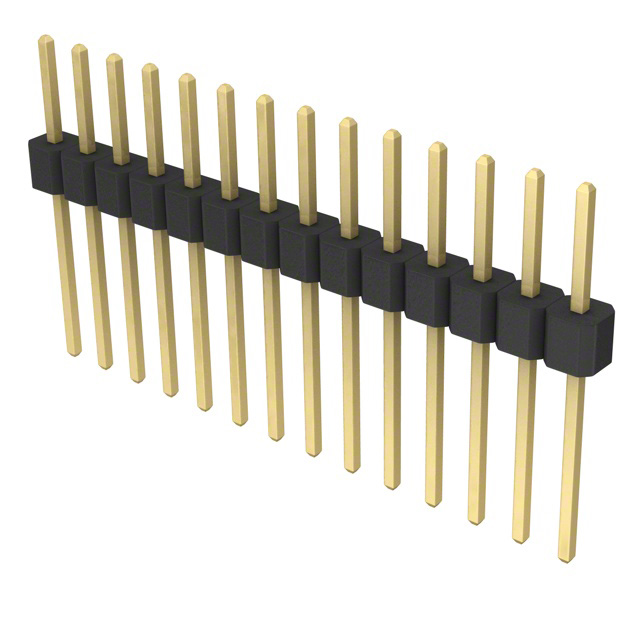

Sullins Connector Solutions PRPC014SADN-RC	1	Solder	Flash	All	Polybutylene Terephthalate (PBT)	Flash	Header Breakaway	10.67 mm	0.42 in	Board to Board Cable	Square	14	0.23 in	5.84 mm	Black	Gold	Through Hole	-40 C	105 ░C	Unshrouded	Brass	0.098 "	2.5 mm	Male Pin	Gold	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull	19.01 mm	0.748 in

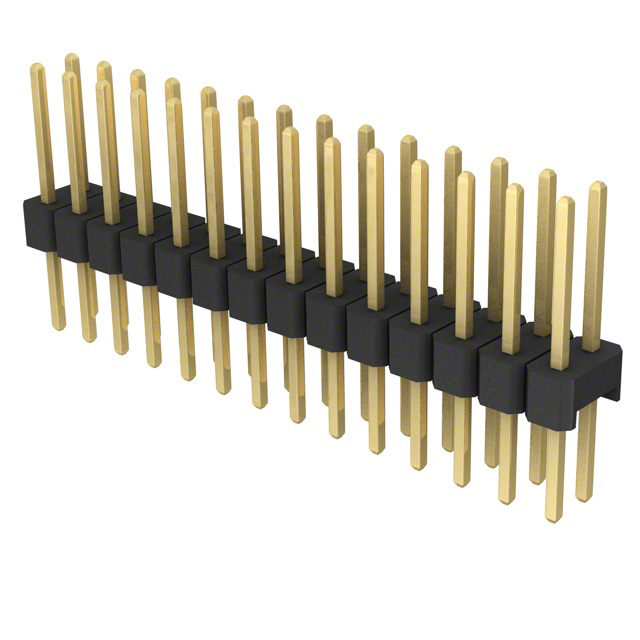

Sullins Connector Solutions PRPC014DFBN-RC		Solder	Flash	All	Polybutylene Terephthalate (PBT)	Flash	Header Breakaway	5.58 mm	0.22 in	Board to Board Cable	Square	28	0.318 in	8.08 mm	Black	Gold	Through Hole	-40 C	105 ░C	Unshrouded	Brass	0.098 "	2.5 mm	Male Pin	Gold	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull	0.637 in		0.1 in	2.54 mm	2	16.17 mm
Sullins Connector Solutions PRPC014DFAN-RC		Solder	Flash	All	Polybutylene Terephthalate (PBT)	Flash	Header Breakaway	3.05 mm	0.12 in	Board to Board Cable	Square	28	0.318 in	8.08 mm	Black	Gold	Through Hole	-40 C	105 ░C	Unshrouded	Brass	0.098 "	2.5 mm	Male Pin	Gold	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull			0.1 in	2.54 mm	2		13.63 mm	0.537 in
Sullins Connector Solutions PRPC014SAAN-RC	1	Solder	Flash	All	Polybutylene Terephthalate (PBT)	Flash	Header Breakaway	3.05 mm	0.12 in	Board to Board Cable	Square	14	0.23 in	5.84 mm	Black	Gold	Through Hole	-40 C	105 ░C	Unshrouded	Brass	0.098 "	2.5 mm	Male Pin	Gold	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull	11.39 mm	0.448 in

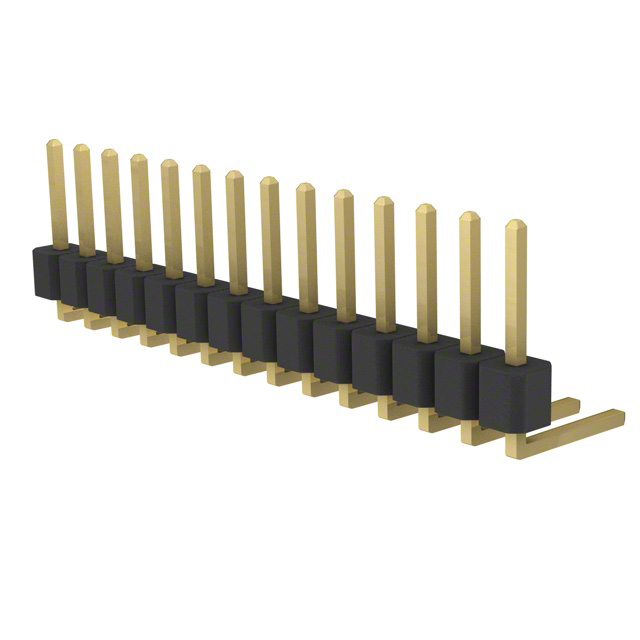

Sullins Connector Solutions PRPC014SBBN-M71RC	1	Solder	Flash	All	Polybutylene Terephthalate (PBT)	Flash	Header Breakaway	5.58 mm	0.22 in	Board to Board Cable	Square	14	0.23 in	5.84 mm	Black	Gold	Right Angle Through Hole	-40 C	105 ░C	Unshrouded	Brass	0.098 "	2.5 mm	Male Pin	Gold	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull
Sullins Connector Solutions PRPC014SFAN-RC	1	Solder	Flash	All	Polybutylene Terephthalate (PBT)	Flash	Header Breakaway	3.05 mm	0.12 in	Board to Board Cable	Square	14	0.318 in	8.08 mm	Black	Gold	Through Hole	-40 C	105 ░C	Unshrouded	Brass	0.098 "	2.5 mm	Male Pin	Gold	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull							13.63 mm	0.537 in
Sullins Connector Solutions PRPC014DABN-RC		Solder	Flash	All	Polybutylene Terephthalate (PBT)	Flash	Header Breakaway	5.84 mm	0.23 "	Board to Board Cable	Square	28	0.23 in	5.84 mm	Black	Gold	Through Hole	-40 C	105 ░C	Unshrouded	Brass	0.098 "	2.5 mm	Male Pin	Gold	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull	14.18 mm	0.558 in	0.1 in	2.54 mm	2
