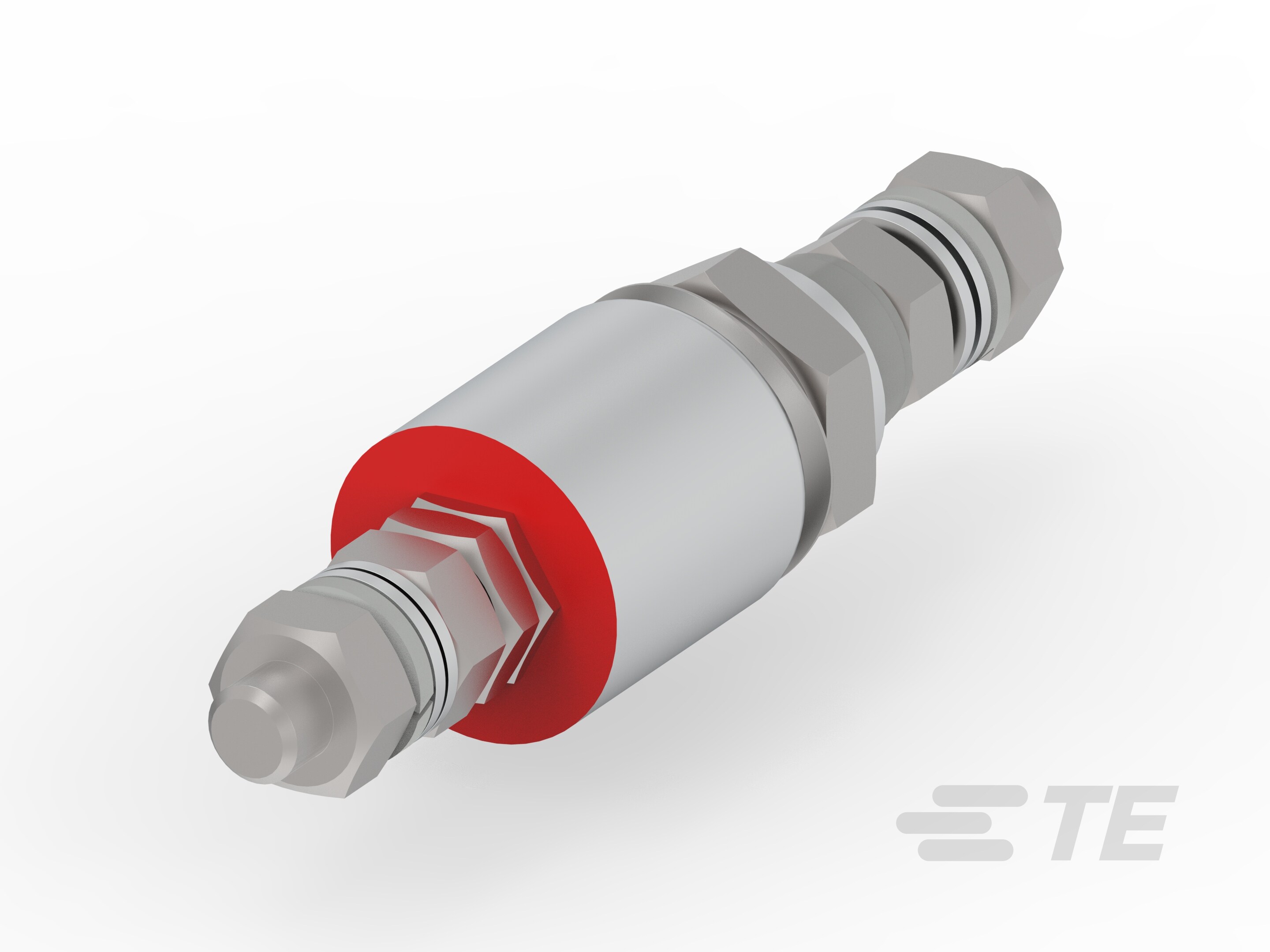

Schaffner FN756X Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CAP FEEDTHRU 0.47UF 650V AXIAL

Part	Voltage - Rated	Tolerance	Package / Case	Ratings	Capacitance	Current	DC Resistance (DCR) (Max)	Thread Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Mounting Type
TE Connectivity AMP Connectors FN7561-200-M10	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	200 A	0.16 mOhm	M24x1	5.118 in	130 mm	32 mm	1.26 in	-40 C	100 °C
TE Connectivity AMP Connectors FN7560-10-M3	650 V	20 %	Axial - Threaded Terminals	Y4	10000 pF	10 A	0.8 mOhm	M10x1	2.244 "	57 mm	15 mm	0.591 in	-40 C	100 °C
TE Connectivity AMP Connectors FN7563-32-M4	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	32 A	0.63 mOhm	M20x1		3.228 "	1.26 "		-40 C	100 °C

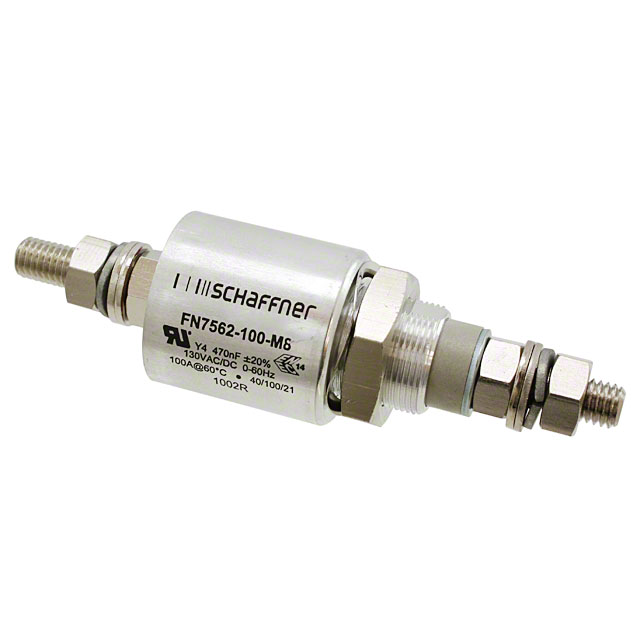

TE Connectivity AMP Connectors FN7562-100-M8	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	100 A	0.23 mOhm	M20x1	4.449 "	113 mm	32 mm	1.26 in	-40 C	100 °C

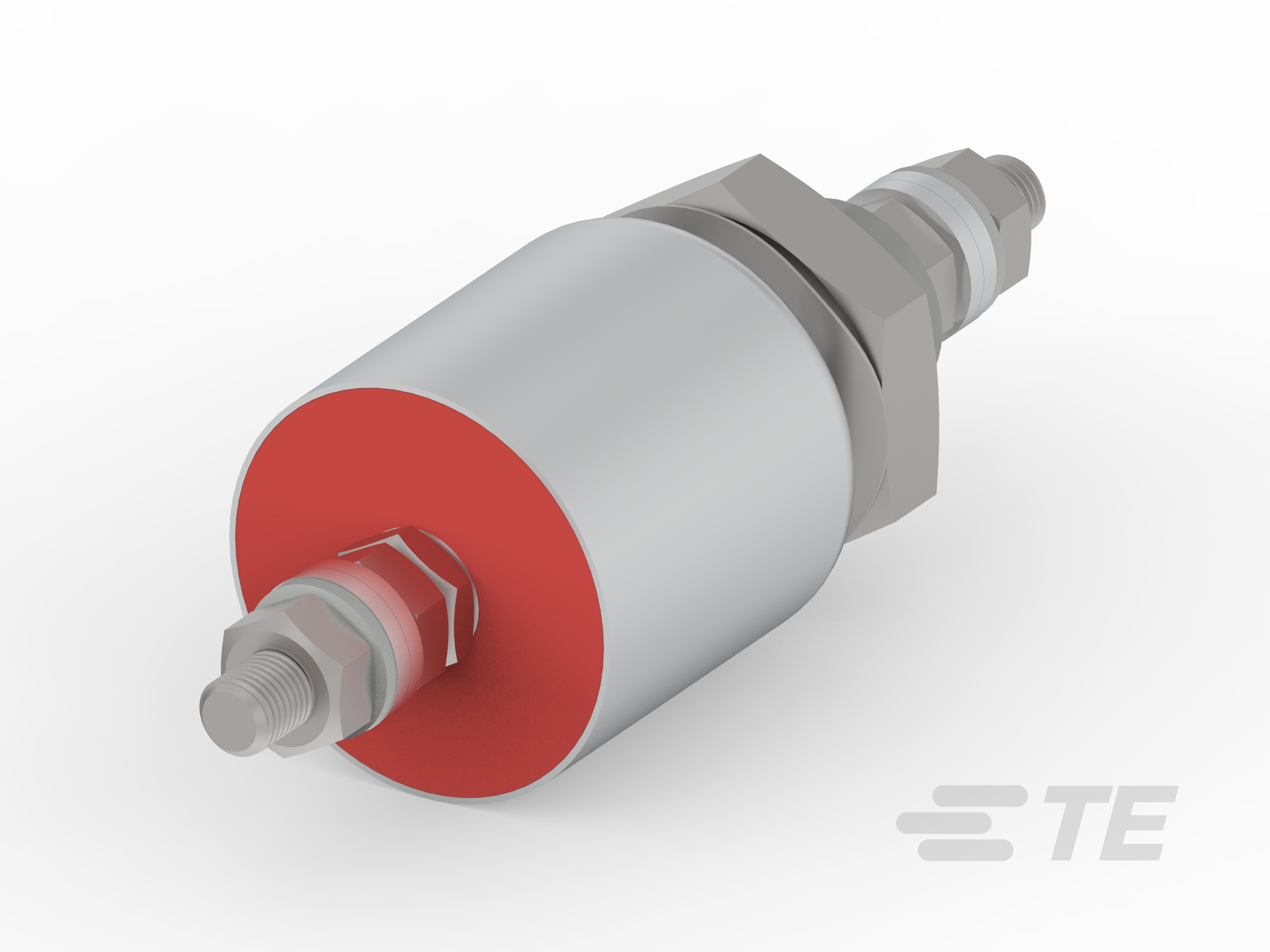

TE Connectivity AMP Connectors FN7563-63-M6	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	63 A	0.43 mOhm	M20x1					-40 C	100 °C	1.26 in 3.898 "
TE Connectivity AMP Connectors FN7561-100-M8	650 V	20 %	Axial - Threaded Terminals	Y4	100000 pF	100 A	0.23 mOhm	M20x1	4.449 "	113 mm	32 mm	1.26 in	-40 C	100 °C
TE Connectivity AMP Connectors FN7562-32-M4	650 V	20 %	Axial - Threaded Terminals	Y4	100000 pF	32 A	0.62 mOhm		1.654 in	42 mm	20 mm	0.787 "	-40 C	100 °C		Bolt Mount
TE Connectivity AMP Connectors FN7561-200-M10	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	200 A	0.16 mOhm	M24x1	5.118 in	130 mm	32 mm	1.26 in	-40 C	100 °C
TE Connectivity AMP Connectors FN7560-100-M8	650 V	20 %	Axial - Threaded Terminals	Y4		100 A	0.23 mOhm		4.449 "	113 mm	32 mm	1.26 in	-40 C	100 °C		Bolt Mount
TE Connectivity AMP Connectors FN7563-32-M4	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	32 A	0.63 mOhm	M20x1		3.228 "	1.26 "		-40 C	100 °C
