ZM10 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Ingress Protection	Termination Style	Pretravel	Pretravel	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Differential Travel	Differential Travel	Release Force	Operating Force	Switch Function	Circuit	Voltage Rating - AC	Actuator Type	Electrical Life	Voltage Rating - DC	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions ZM10B70C01	IP40	Quick Connect - 0.110" (2.8mm)	4 mm	0.157 in	1000000 Cycles	0.6 mm	0.024 "	125 °C	-40 C	Chassis Mount	100 mA	0.031 in	0.8 mm	2 gf	14 gf	On-Mom	SPDT	125 V	Lever Straight

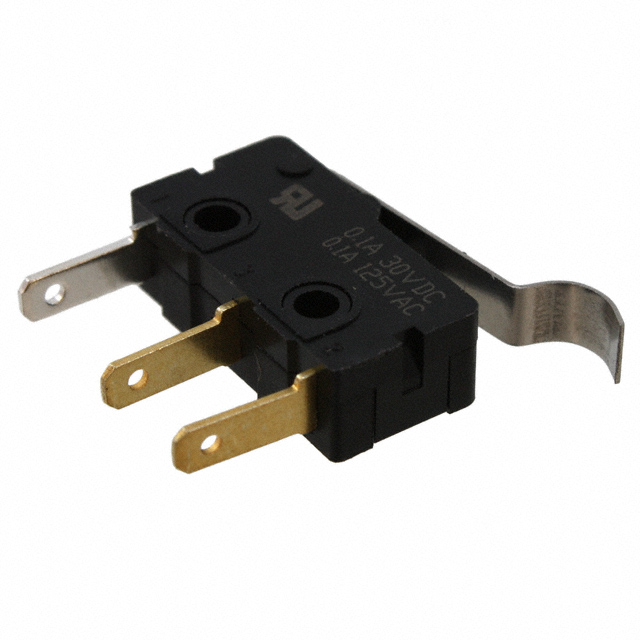

Honeywell Sensing and Productivity Solutions ZM10B70E01		Quick Connect - 0.110" (2.8mm)	5.2 mm	0.205 in	10000000 Cycles	0.6 mm	0.025 in	120 °C	-40 C	Chassis Mount	100 mA			3 gf	16 gf	On-Mom	SPDT	125 V	Lever Simulated Roller	10000 Cycles	30 V	15.1 mm	0.594 in

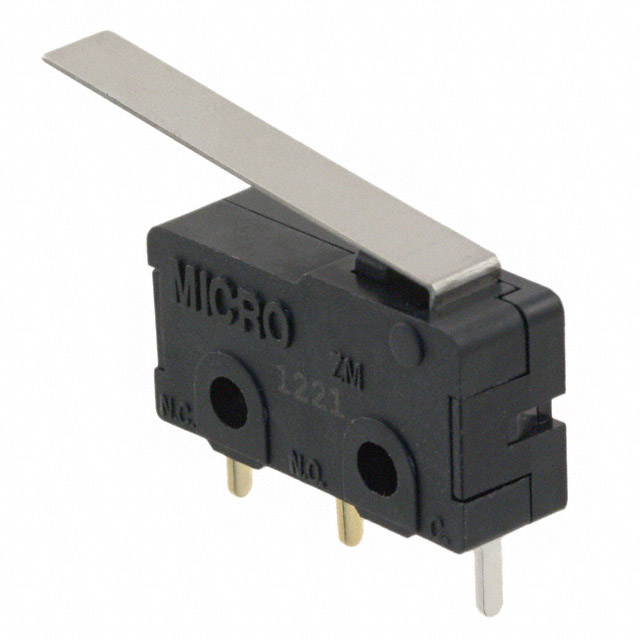

Honeywell Sensing and Productivity Solutions ZM10D20D01		PC Pin	6.1 mm	0.24 in	10000000 Cycles	0.76 mm	0.03 "	120 °C	-40 C	Through Hole	100 mA				20 gf	On-Mom	SPDT	125 V	Lever Straight	10000 Cycles	30 V	8.9 mm	0.35 in
Honeywell Sensing and Productivity Solutions ZM10D10D01		Solder Lug	6.1 mm	0.24 in	10000000 Cycles	0.76 mm	0.03 "	120 °C	-40 C	Chassis Mount	100 mA				20 gf	On-Mom	SPDT	125 V	Lever Straight	10000 Cycles	30 V	8.9 mm	0.35 in
Honeywell Sensing and Productivity Solutions ZM10D10E01	IP40	Solder Lug	5.2 mm	0.205 in	1000000 Cycles	0.6 mm	0.024 "	125 °C	-40 C	Chassis Mount	100 mA				26 gf	On-Mom	SPDT	125 V	Lever Simulated Roller
Honeywell Sensing and Productivity Solutions ZM10E20C01	IP40	PC Pin	4 mm	0.157 in	1000000 Cycles	0.6 mm	0.024 "	125 °C	-40 C	Through Hole	100 mA	0.031 in	0.8 mm	6 gf	36 gf	On-Mom	SPDT	125 V	Lever Straight
