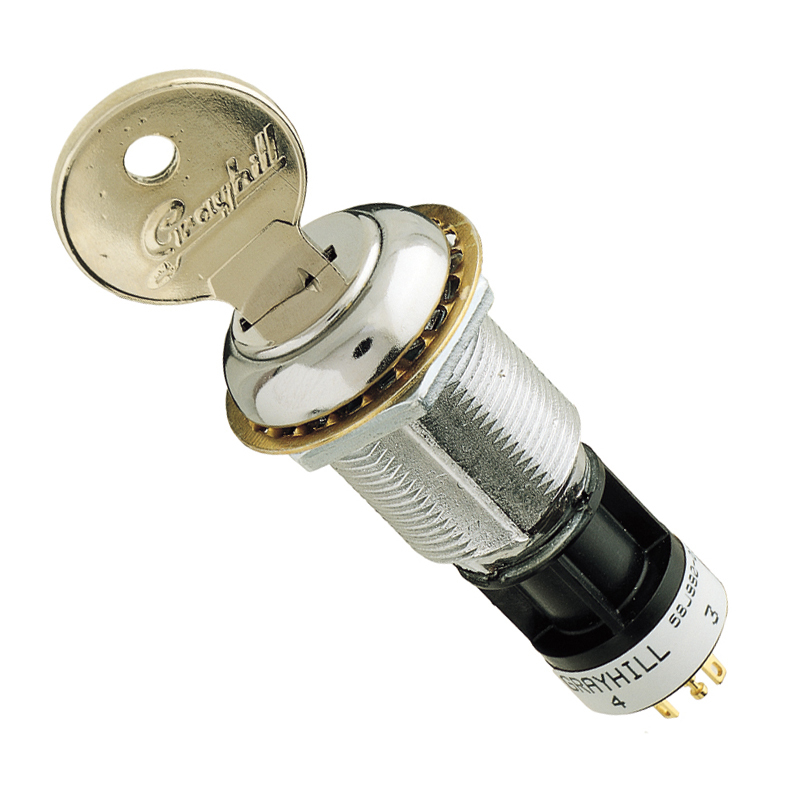

58J8 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH KEY 4POS SP4T 200MA 115V
| Part | Depth Behind Flange | Mechanical Life | Electrical Life | Contact Finish | Actuator Type | Circuit | Features | Current Rating (Amps) | Voltage Rating - DC | Mounting Type | Switch Function | Number of Positions | Key Removable Positions | Voltage Rating - AC | Contact Timing | Termination Style | Panel Cutout Dimensions [diameter] | Angle of Throw | Depth Behind Flange [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 49.71 mm | 25000 Steps | 25000 Steps | Gold Alloy | Flat Key | SP4T | Antistatic | 200 mA | 30 V | Panel Mount | On-On-On-On | 4 | All | 115 V | Non-Shorting (BBM) | Solder Lug | 19.05 mm | 90 ° | |
Grayhill Inc. | 49.71 mm | 25000 Steps | 25000 Steps | Gold Alloy | Flat Key | DP3T | Antistatic | 200 mA | 30 V | Panel Mount | On-On-On | All | 115 V | Non-Shorting (BBM) | Solder Lug | 19.05 mm | 36 ° | ||
Grayhill Inc. | 25000 Steps | 25000 Steps | Gold Alloy | Flat Key | SPDT | Antistatic | 200 mA | 30 V | Panel Mount | On-On | 2 | All | 115 V | Shorting (MBB) | PC Pin | 19.05 mm | 36 ° | 47.63 mm | |
Grayhill Inc. | 25000 Steps | 25000 Steps | Gold Alloy | Flat Key | SP5T | Antistatic | 200 mA | 30 V | Panel Mount | On-On-On-On-On | 5 | All | 115 V | Non-Shorting (BBM) | PC Pin | 19.05 mm | 45 ° | 47.63 mm | |
Grayhill Inc. | 49.71 mm | 25000 Steps | 25000 Steps | Gold Alloy | Flat Key | SP3T | Antistatic | 200 mA | 30 V | Panel Mount | On-On-On | All | 115 V | Non-Shorting (BBM) | Solder Lug | 19.05 mm | 45 ° | ||
 Grayhill Inc. | 49.71 mm | 25000 Steps | 25000 Steps | Gold Alloy | Flat Key | SPDT | Antistatic | 200 mA | 30 V | Panel Mount | On-On | 2 | All | 115 V | Non-Shorting (BBM) | Solder Lug | 19.05 mm | 36 ° | |
Grayhill Inc. | 49.71 mm | 25000 Steps | 25000 Steps | Gold Alloy | Flat Key | SP4T | Antistatic | 200 mA | 30 V | Panel Mount | On-On-On-On | 4 | All | 115 V | Shorting (MBB) | Solder Lug | 19.05 mm | 45 ° | |
Grayhill Inc. | 49.71 mm | 25000 Steps | 25000 Steps | Gold Alloy | Flat Key | DPDT | Antistatic | 200 mA | 30 V | Panel Mount | On-On | 2 | All | 115 V | Non-Shorting (BBM) | Solder Lug | 19.05 mm | 36 ° | |
Grayhill Inc. | 49.71 mm | 25000 Steps | 25000 Steps | Gold Alloy | Flat Key | Antistatic | 200 mA | 30 V | Panel Mount | 8 | All | 115 V | Shorting (MBB) | Solder Lug | 19.05 mm | 45 ° | |||
Grayhill Inc. | 49.71 mm | 25000 Steps | 25000 Steps | Gold Alloy | Flat Key | DP4T | Antistatic | 200 mA | 30 V | Panel Mount | On-On-On-On | 4 | All | 115 V | Non-Shorting (BBM) | Solder Lug | 19.05 mm | 36 ° |
