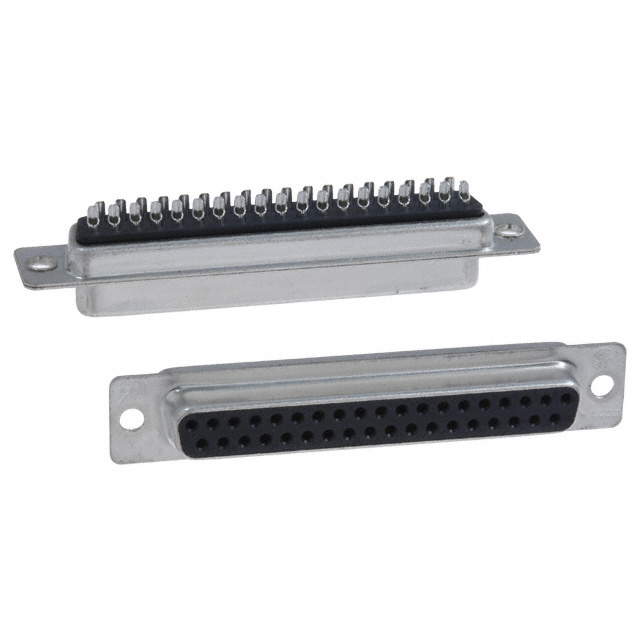

747917 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
37 RCPT SOLDER CUP, 30 GOLD, ROHS COMPLI
| Part | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Material Flammability Rating | Number of Rows [custom] | Connector Type | Current Rating (Amps) | Contact Type | Mounting Type | Contact Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 250 V | Brass | -55 C | 105 ░C | Black | Polybutylene Terephthalate (PBT) Glass Filled | 4 | DC C | D-Sub | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | Receptacle Female Sockets | 3 A | Signal | Free Hanging (In-Line) | Gold | 37 |
 TE Connectivity AMP Connectors | 250 V | Brass | -55 C | 105 ░C | Black | Polybutylene Terephthalate (PBT) Glass Filled | 4 | DC C | D-Sub | 8 µin | 0.203 çm | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | Receptacle Female Sockets | 3 A | Signal | Free Hanging (In-Line) | Gold | 37 |
TE Connectivity AMP Connectors | 250 V | Brass | -55 C | 105 ░C | Black | Polybutylene Terephthalate (PBT) Glass Filled | 4 | DC C | D-Sub | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | Receptacle Female Sockets | 3 A | Signal | Free Hanging (In-Line) | Gold | 37 |
