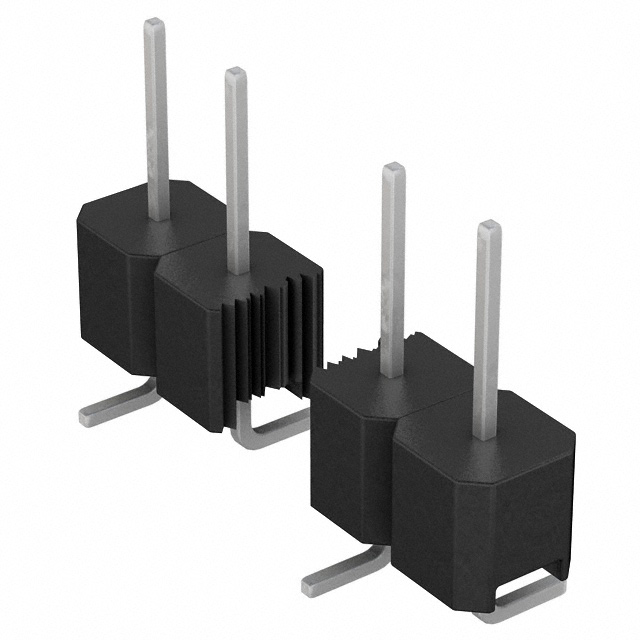

NREC020 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD 20POS 2.54MM
| Part | Current Rating (Amps) | Contact Shape | Insulation Material | Shrouding | Contact Length - Mating | Contact Length - Mating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Positions Loaded | Number of Rows | Termination | Connector Type | Number of Positions | Contact Finish - Post | Fastening Type | Contact Material | Style | Contact Type | Material Flammability Rating | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 3 A | Square | Nylon 6T Polyamide (PA6T) | Unshrouded | 0.23 in | 5.84 mm | Surface Mount | -40 C | 105 ░C | 0.1 " | 2.54 mm | 0.098 " | 2.5 mm | All | 1 | Solder | Header | 20 | Tin | Push-Pull | Brass | Board to Board Cable | Male Pin | UL94 V-0 | Black |
