LMZ14203EXT Series

3A SIMPLE SWITCHER Power Module with 42V Maximum Input Voltage for Military and Rugged App

Catalog

3A SIMPLE SWITCHER Power Module with 42V Maximum Input Voltage for Military and Rugged App

Part	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Frequency - Switching [Max]	Main Purpose	Voltage - Output	Supplied Contents	Current - Output	Board Type	Regulator Topology	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Control Features	Supplier Device Package	Mounting Type	Voltage - Input (Min) [Min]	Type	Current - Output (Max) [Max]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Features	Number of Outputs	Package / Case
Texas Instruments LMZ14203DEMO/NOPB	LMZ14203	Non-Isolated	1	42 V	6 V	1 MHz	DC/DC Step Down	3.3 V	Board(s)	3 A	Fully Populated	Buck
Texas Instruments LMZ14203HEVAL/NOPB	LMZ14203H	Non-Isolated	1	42 V	15 V	1 MHz	DC/DC Step Down	12 V	Board(s)	3 A	Fully Populated	Buck
Texas Instruments LMZ14203HTZ/NOPB													94 %	125 °C	-40 °C	42 V	Active High Enable	TO-PMOD-7	Surface Mount	6 V	Non-Isolated PoL Module	3 A	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	5 V	30 V	UVLO	1	TO-PMOD-7 Power Module

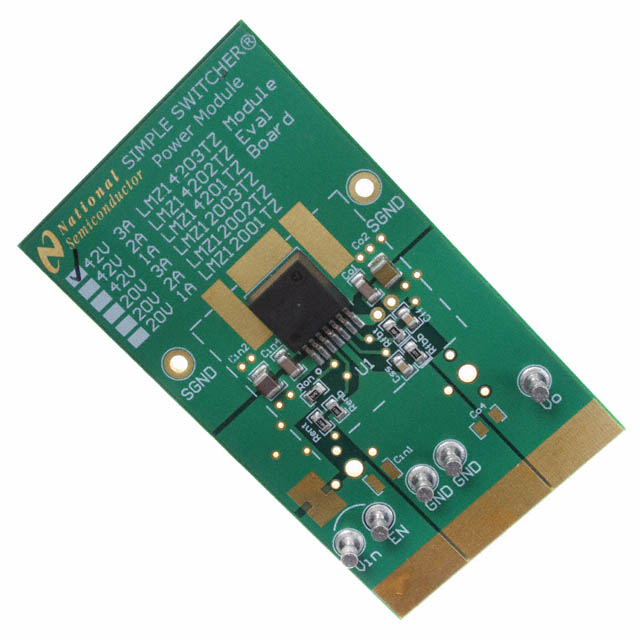

Texas Instruments LMZ14203EVAL/NOPB	LMZ14203	Non-Isolated	1	42 V	6 V	1 MHz	DC/DC Step Down	3.3 V	Board(s)	3 A	Fully Populated	Buck
Texas Instruments LMZ14203HTZE/NOPB													94 %	125 °C	-40 °C	42 V	Active High Enable	TO-PMOD-7	Surface Mount	6 V	Non-Isolated PoL Module	3 A	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	5 V	30 V	UVLO	1	TO-PMOD-7 Power Module
Texas Instruments LMZ14203EXTTZ/NOPB													90 %	125 °C	-55 °C	42 V	Active High Enable	TO-PMOD-7	Surface Mount	6 V	Non-Isolated PoL Module	3 A	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	OTP OVP SCP UVLO	1	TO-PMOD-7 Power Module
Texas Instruments LMZ14203EXTTZE/NOPB													90 %	125 °C	-55 °C	42 V	Active High Enable	TO-PMOD-7	Surface Mount	6 V	Non-Isolated PoL Module	3 A	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	OTP OVP SCP UVLO	1	TO-PMOD-7 Power Module
Texas Instruments LMZ14203TZ-ADJ/NOPB													90 %	125 °C	-55 °C	42 V	Active High Enable	TO-PMOD-7	Surface Mount	6 V	Non-Isolated PoL Module	3 A	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	OTP OVP SCP UVLO	1	TO-PMOD-7 Power Module
Texas Instruments LMZ14203HTZX/NOPB													94 %	125 °C	-40 °C	42 V	Active High Enable	TO-PMOD-7	Surface Mount	6 V	Non-Isolated PoL Module	3 A	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	5 V	30 V	UVLO	1	TO-PMOD-7 Power Module
Texas Instruments LMZ14203TZX-ADJ/NOPB													90 %	125 °C	-40 °C	42 V	Active High Enable	TO-PMOD-7	Surface Mount	6 V	Non-Isolated PoL Module	3 A	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	OTP OVP SCP UVLO	1	TO-PMOD-7 Power Module

Catalog

3A SIMPLE SWITCHER Power Module with 42V Maximum Input Voltage for Military and Rugged App

Key Features

• Junction Temperature Range –55°C to 125°CIntegrated Shielded InductorSimple PCB LayoutFlexible Start-up Sequencing Using External Soft-Start and Precision EnableProtection Against Inrush Currents and Faultssuch as Input UVLO and Output Short CircuitSingle Exposed Pad and Standard Pinout for EasyMounting and ManufacturingFast Transient Response for Powering FPGAsand ASICsLow Output Voltage RipplePin-to-Pin Compatible With Family Devices:LMZ14203EXT/2EXT/1EXT(42-V Maximum 3 A, 2 A, 1 A)LMZ12003/2/1 (20-V Maximum 3 A, 2 A, 1 A)LMZ14203/2/1 (42-V Maximum 3 A, 2 A, 1 A)Fully Enabled for WEBENCH™ Power DesignerElectrical Specifications:18-W Maximum Total Output PowerUp to 3-A Output CurrentInput Voltage Range 6 V to 42 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 90%Performance Benefits:Low Radiated Emissions and High Radiated ImmunityPasses vibration Standard MIL-STD-883Method 2007.2 Condition A JESD22–B103B Condition 1Passes Drop Standard MIL-STD-883 Method 2002.3 Condition BJESD22–B110 Condition BJunction Temperature Range –55°C to 125°CIntegrated Shielded InductorSimple PCB LayoutFlexible Start-up Sequencing Using External Soft-Start and Precision EnableProtection Against Inrush Currents and Faultssuch as Input UVLO and Output Short CircuitSingle Exposed Pad and Standard Pinout for EasyMounting and ManufacturingFast Transient Response for Powering FPGAsand ASICsLow Output Voltage RipplePin-to-Pin Compatible With Family Devices:LMZ14203EXT/2EXT/1EXT(42-V Maximum 3 A, 2 A, 1 A)LMZ12003/2/1 (20-V Maximum 3 A, 2 A, 1 A)LMZ14203/2/1 (42-V Maximum 3 A, 2 A, 1 A)Fully Enabled for WEBENCH™ Power DesignerElectrical Specifications:18-W Maximum Total Output PowerUp to 3-A Output CurrentInput Voltage Range 6 V to 42 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 90%Performance Benefits:Low Radiated Emissions and High Radiated ImmunityPasses vibration Standard MIL-STD-883Method 2007.2 Condition A JESD22–B103B Condition 1Passes Drop Standard MIL-STD-883 Method 2002.3 Condition BJESD22–B110 Condition B

Description

The LMZ14203EXT SIMPLE SWITCHER,sup>® power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ14203EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ14203EXT can accept an input voltage rail between 6 V and 42 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ14203EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ14203EXT is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz. The LMZ14203EXT SIMPLE SWITCHER,sup>® power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ14203EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ14203EXT can accept an input voltage rail between 6 V and 42 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ14203EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ14203EXT is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz.
