BG306 Series

Manufacturer: GCT

Catalog

2W, 2.54MM PTH SCK, SIL, SMT, VE

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Contact Finish - Mating	Connector Type	Number of Positions Loaded	Termination	Fastening Type	Contact Type	Contact Finish - Post	Insulation Color	Current Rating (Amps)	Mounting Type	Number of Rows	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating

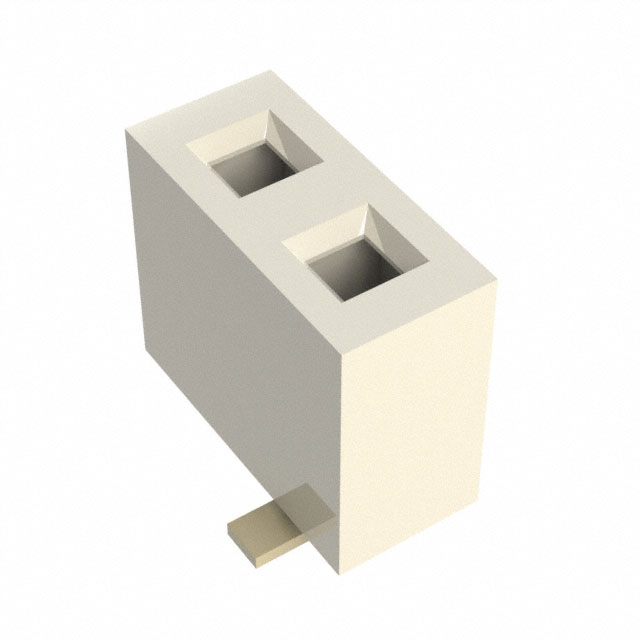

GCT BG306-02-A-1-0400-L-G	Square	Phosphor Bronze	Flash	-40 C	105 ░C	UL94 V-0	2	Gold	Receptacle	All	Solder	Push-Pull	Female Socket	Gold	Natural	3 A	Surface Mount	1	0.197 "	5 mm	Flash	0.1 "	2.54 mm

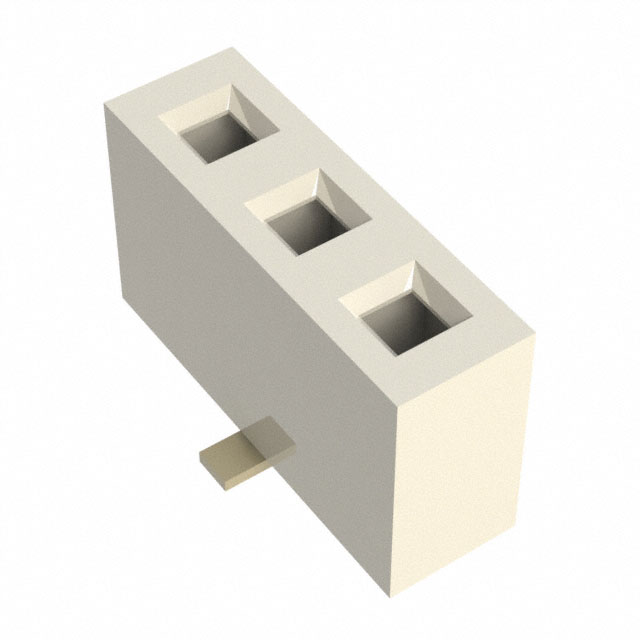

GCT BG306-03-A-2-0400-L-B	Square	Phosphor Bronze	Flash	-40 C	105 ░C	UL94 V-0		Gold	Receptacle	All	Solder	Push-Pull	Female Socket	Gold	Natural	3 A	Surface Mount	1	0.197 "	5 mm	Flash	0.1 "	2.54 mm

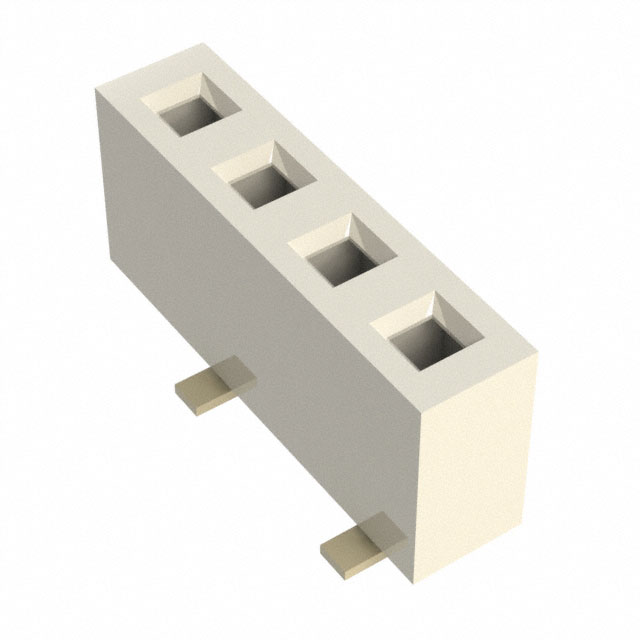

GCT BG306-04-A-2-0400-L-B	Square	Phosphor Bronze	Flash	-40 C	105 ░C	UL94 V-0	4	Gold	Receptacle	All	Solder	Push-Pull	Female Socket	Gold	Natural	3 A	Surface Mount	1	0.197 "	5 mm	Flash	0.1 "	2.54 mm

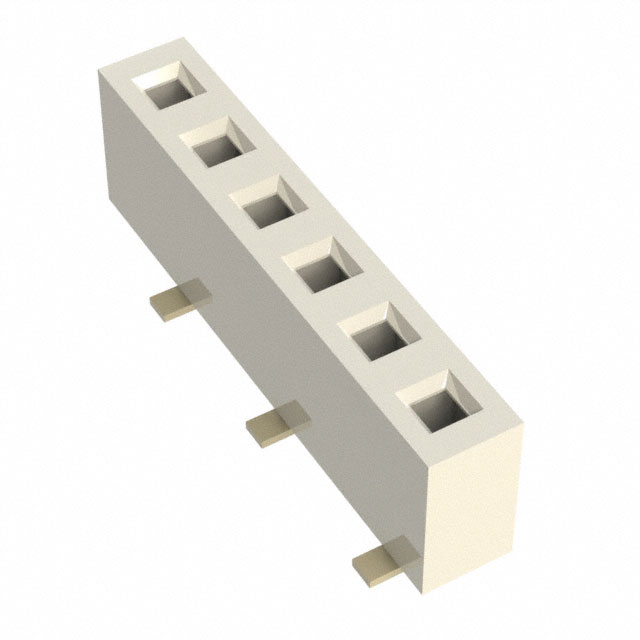

GCT BG306-06-A-2-0400-L-B	Square	Phosphor Bronze	Flash	-40 C	105 ░C	UL94 V-0	6	Gold	Receptacle	All	Solder	Push-Pull	Female Socket	Gold	Natural	3 A	Surface Mount	1	0.197 "	5 mm	Flash	0.1 "	2.54 mm

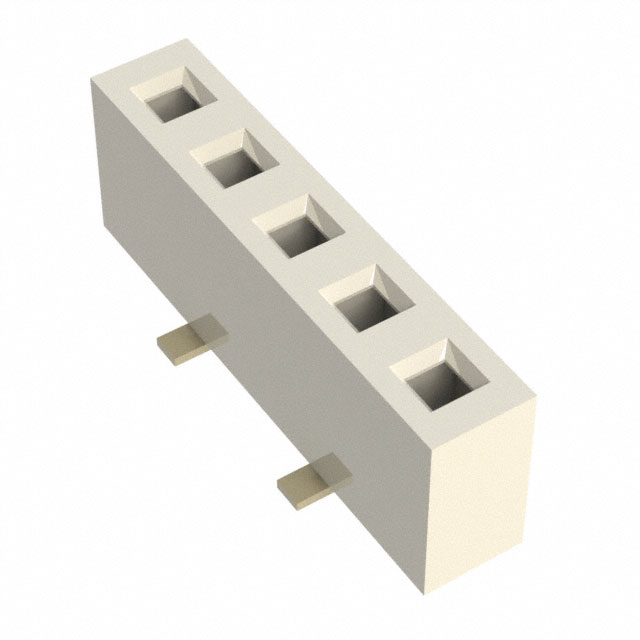

GCT BG306-05-A-2-0400-L-B	Square	Phosphor Bronze	Flash	-40 C	105 ░C	UL94 V-0	5	Gold	Receptacle	All	Solder	Push-Pull	Female Socket	Gold	Natural	3 A	Surface Mount	1	0.197 "	5 mm	Flash	0.1 "	2.54 mm
