PIC120 Series
Manufacturer: PULS, LP
Beta
⌘K

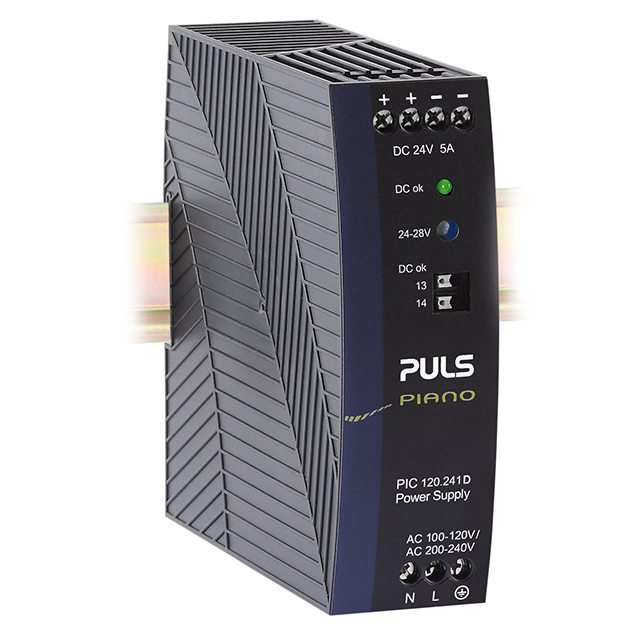

AC/DC DIN RAIL SUPPLY 24V 120W
| Part | Features | Power (Watts) | Input Type | Efficiency | Current - Output (Max) | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Output 1 | Voltage - Isolation | Number of Outputs | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PULS, LP | Adjustable Output Load Sharing Universal Input | 120 W | AC | 92.3 % | 5 A | 132 VAC 264 VAC | 90 VAC 180 VAC | 39 mm | 1.54 in | 4.88 in | 124 mm | 4.88 in | 124 mm | 24 V | 500 V | 1 | 61010-2-201 62368-1 | 70 °C | 0 °C | EAC IEC UL | ITE (Commercial) |
