E2EW-QX2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

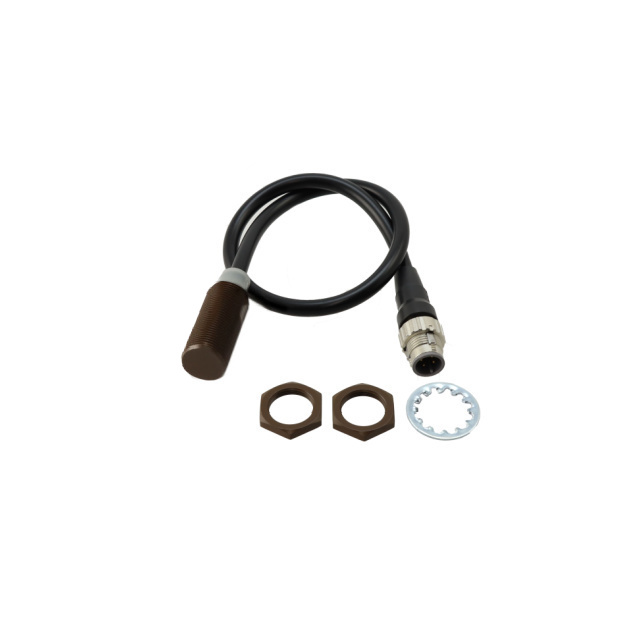

SENSOR PROX INDUCTIVE 2MM CYLIND
| Part | Material - Body | Shielding | Sensor Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Indicator [custom] | Output Type | Ingress Protection | Termination Style | Sensing Distance | Sensing Distance | Package / Case | Response Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Stainless Steel | Shielded | Inductive | 0 °C | 85 °C | 30 VDC | 10 VDC | LED | PNP-NC 3-Wire | IP67 | Cable Leads | 0.079 in | 2 mm | Cylinder Threaded - M12 | 100 Hz |
Omron Electronics Inc-EMC Div | Stainless Steel | Shielded | Inductive | 0 °C | 85 °C | 30 VDC | 10 VDC | LED | PNP-NC 3-Wire | IP67 | Cable with Connector | 0.079 in | 2 mm | Cylinder Threaded - M12 | 100 Hz |
Omron Electronics Inc-EMC Div | Stainless Steel | Shielded | Inductive | 0 °C | 85 °C | 30 VDC | 10 VDC | LED | NPN-NO 3-Wire | IP67 | Cable with Connector | 0.079 in | 2 mm | Cylinder Threaded - M12 | 100 Hz |
Omron Electronics Inc-EMC Div | Stainless Steel | Shielded | Inductive | 0 °C | 85 °C | 30 VDC | 10 VDC | LED | PNP-NC/NO 3-Wire | IP67 | Cable Leads | 0.079 in | 2 mm | Cylinder Threaded - M12 | 100 Hz |
Omron Electronics Inc-EMC Div | Stainless Steel | Shielded | Inductive | 0 °C | 85 °C | 30 VDC | 10 VDC | LED | PNP-NO 3-Wire | IP67 | Cable Leads | 0.079 in | 2 mm | Cylinder Threaded - M12 | 100 Hz |
Omron Electronics Inc-EMC Div | Stainless Steel | Shielded | Inductive | 0 °C | 85 °C | 30 VDC | 10 VDC | LED | 3-Wire NPN-NC/NO | IP67 | Cable Leads | 0.079 in | 2 mm | Cylinder Threaded - M12 | 100 Hz |
Omron Electronics Inc-EMC Div | Stainless Steel | Shielded | Inductive | 0 °C | 85 °C | 30 VDC | 10 VDC | LED | PNP-NC/NO 3-Wire | IP67 | Cable Leads | 0.079 in | 2 mm | Cylinder Threaded - M12 | 100 Hz |
Omron Electronics Inc-EMC Div | Stainless Steel | Shielded | Inductive | 0 °C | 85 °C | 30 VDC | 10 VDC | LED | PNP-NC/NO 3-Wire | IP67 | Cable with Connector | 0.079 in | 2 mm | Cylinder Threaded - M12 | 100 Hz |
 Omron Electronics Inc-EMC Div | Polytetrafluoroethylene (PTFE) | Shielded | Inductive | 0 °C | 85 °C | 30 VDC | 10 VDC | LED | PNP-NO 3-Wire | IP67 | Cable with Connector | 0.079 in | 2 mm | Cylinder Threaded - M12 | 100 Hz |
Omron Electronics Inc-EMC Div | Stainless Steel | Shielded | Inductive | 0 °C | 85 °C | 30 VDC | 10 VDC | LED | NPN-NC 3-Wire | IP67 | Cable Leads | 0.079 in | 2 mm | Cylinder Threaded - M12 | 100 Hz |
