JB15LPF Series

Catalog

TACTILE SWITCH, JB SERIES, TOP ACTUATED, THROUGH HOLE, SQUARE BUTTON, 176 GF, 50MA AT 24VDC

Part	Actuator Material	Mechanical Life	Switch Travel	Outline [x]	Outline [y]	Operating Force	Actuator Type	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Termination Style	Circuit	Illumination Voltage (Nominal)	Mounting Type	Illumination	Switch Function	Ingress Protection	Features	Illumination Type, Color

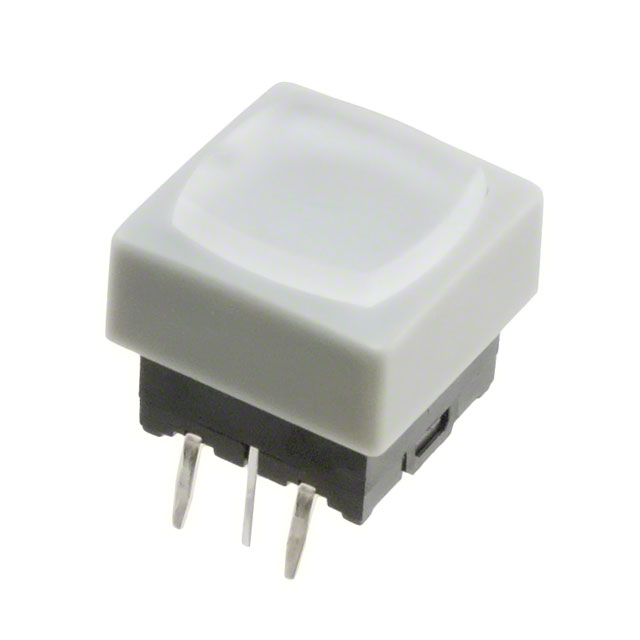

NKK Switches JB15LPF-BH	Polyacetal	5000000 Cycles	0.25 mm	10 mm	10 mm	176 gf	Square Button	Top Actuated	11.2 mm	-25 °C	70 °C	0.05 A 24 VDC	PC Pin	SPST-NO	2.1 VDC	Through Hole	Illuminated	Off-Mom	IP67 - Dust Tight Waterproof	Process Sealed	Green LED
NKK Switches JB15LPF-F	Polyacetal	5000000 Cycles	0.25 mm	10 mm	10 mm	176 gf	Square Button	Top Actuated	11.2 mm	-25 °C	70 °C	0.05 A 24 VDC	PC Pin	SPST-NO	2.1 VDC	Through Hole	Illuminated	Off-Mom	IP67 - Dust Tight Waterproof	Process Sealed	Green LED

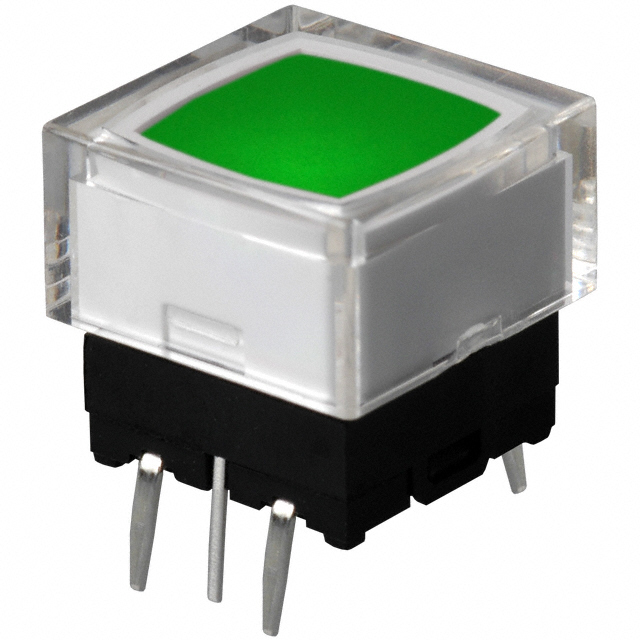

NKK Switches JB15LPF-JB	Polyacetal	5000000 Cycles	0.25 mm	10 mm	10 mm	176 gf	Square Button	Top Actuated	11.2 mm	-25 °C	70 °C	0.05 A 24 VDC	PC Pin	SPST-NO	2.1 VDC	Through Hole	Illuminated	Off-Mom	IP67 - Dust Tight Waterproof	Process Sealed	Green LED
NKK Switches JB15LPF-JJ	Polyacetal	5000000 Cycles	0.25 mm	10 mm	10 mm	176 gf	Square Button	Top Actuated	11.2 mm	-25 °C	70 °C	0.05 A 24 VDC	PC Pin	SPST-NO	2.1 VDC	Through Hole	Illuminated	Off-Mom	IP67 - Dust Tight Waterproof	Process Sealed	Green LED
NKK Switches JB15LPF-JF	Polyacetal	5000000 Cycles	0.25 mm	10 mm	10 mm	176 gf	Square Button	Top Actuated	11.2 mm	-25 °C	70 °C	0.05 A 24 VDC	PC Pin	SPST-NO	2.1 VDC	Through Hole	Illuminated	Off-Mom	IP67 - Dust Tight Waterproof	Process Sealed	Green LED
