726-060 Series
Manufacturer: EDAC Inc.
Beta
⌘K

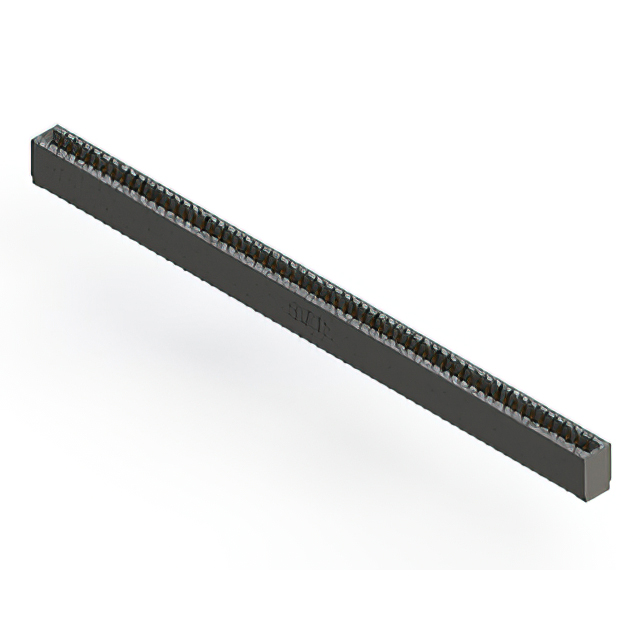

CONN EDGE SGL FMALE 60POS 0.125
| Part | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Read Out | Number of Positions/Bay/Row [custom] | Number of Positions | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Card Type | Mounting Type | Color | Number of Rows | Contact Material | Contact Finish | Termination | Gender | Termination Rows [custom] | Number of Positions/Bay/Row | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 60 | 60 | 3.18 mm | 0.125 in | -40 C | 105 ░C | Cantilever | Non Specified - Single Edge | Through Hole | Black | 1 | Copper Alloy | Gold | Press-Fit | Female | |||
 EDAC Inc. | Polyester Thermoplastic | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 60 | 3.18 mm | 0.125 in | -40 C | 105 ░C | Cantilever | Non Specified - Dual Edge | Through Hole | Black | Copper Alloy | Gold | Press-Fit Wire Wrap | Female | 2 | 30 | 2 |
