Kls0 Series Series

Illuminated SPDT/DPDT Pushbutton Pushbutton Switches Illuminated SPDT/DPDT Pushbutton

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Illuminated SPDT/DPDT Pushbutton Pushbutton Switches Illuminated SPDT/DPDT Pushbutton

Part	Switch Function	Current Rating (Amps)	Circuit	Termination Style	Illumination Type, Color	Illumination Voltage (Nominal)	Actuator Marking	Actuator Type	Mechanical Life	Type	Mounting Type	Color - Actuator/Cap	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC

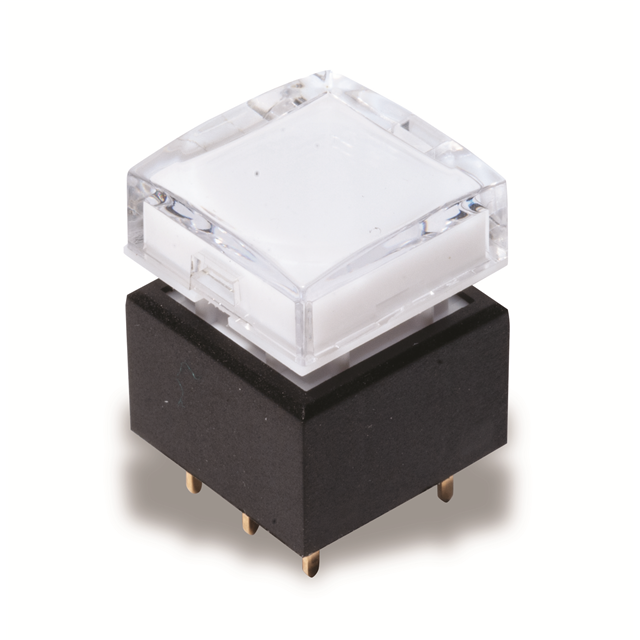

Littelfuse/Commercial Vehicle Products KLS12L063AQ	On-Mom	500 mA	SPDT	PC Pin	Green/Red LED	2 VDC	No Marking	Button Square	1000000 Cycles	Illuminated Standard	Through Hole	Clear	200000 Cycles	85 °C	-40 °C	25 V
Littelfuse/Commercial Vehicle Products KLS12C036AQ	On-Mom	500 mA	SPDT	PC Pin	Green/Red LED	2 VDC	No Marking	Button Square	1000000 Cycles	Illuminated Standard	Through Hole	Clear	200000 Cycles	85 °C	-40 °C	25 V
Littelfuse/Commercial Vehicle Products KLS22F036AQ	On-Mom	500 mA	DPDT	PC Pin	Green/Red LED	2 VDC	No Marking	Button Square	1000000 Cycles	Illuminated Standard	Through Hole	Clear	200000 Cycles	85 °C	-40 °C	25 V
Littelfuse/Commercial Vehicle Products KLS12F036EG	On-On	100 mA	SPDT	PC Pin	Green/Red LED	2 VDC	No Marking	Button Square	1000000 Cycles	Illuminated Standard	Through Hole	Clear	200000 Cycles	85 °C	-40 °C	28 V

Catalog

Illuminated SPDT/DPDT Pushbutton Pushbutton Switches Illuminated SPDT/DPDT Pushbutton

Key Features

• Bright LED color

• Momentary or Lock version

• Snap-action provide positive feedback

• 1,000,000 life cycle

Description

The KLS series expands our product offering in the LED pushbutton family. It meets the market requirements on haptic & sound with clear "click" feedback. With the various CAP options and bright LED color, the switches provide the status of its positioning (on/off) and clear indication of its functioning. KLS is available as SPDT and DPDT configuration and with higher rating for boader application needs.
