Yf0 Series Series
Manufacturer: LITTELFUSE
Beta
⌘K

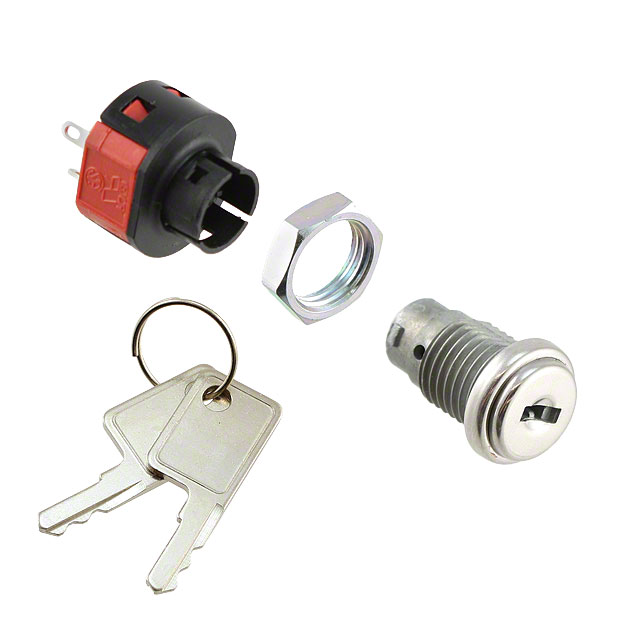

SWITCH KEYLOCK 2POS DPDT 4A 125V
| Part | Contact Timing | Voltage Rating - DC | Current Rating (Amps) | Electrical Life | Panel Cutout Dimensions [diameter] | Circuit | Mounting Type | Angle of Throw | Termination Style | Switch Function | Number of Positions | Contact Material | Actuator Type | Contact Finish | Features | Voltage Rating - AC | Key Removable Positions | Depth Behind Flange | Key Removable Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Not Specified | 28 V | 4 A | 10000 Cycles | 11.99 mm | DPDT | Panel Mount | 90 ° | Wire Leads | On-On | 2 | Copper | Flat Key | Silver | Epoxy Sealed Terminals | 125 V | 1 | ||
LITTELFUSE | Not Specified | 20 V | 0.4 VA | 10000 Cycles | 11.99 mm | SPDT | Panel Mount | 90 ° | Solder Lug | On-On | 2 | Copper | Flat Key | Gold | Epoxy Sealed Terminals | 20 V | 1 | 33.91 mm | |
LITTELFUSE | Not Specified | 28 V | 4 A | 10000 Cycles | 11.99 mm | SPDT | Panel Mount | 90 ° | Solder Lug | On-On | 2 | Copper | Flat Key | Silver | Epoxy Sealed Terminals | 125 V | 1 | 33.91 mm | |
LITTELFUSE | Not Specified | 28 V | 4 A | 11.99 mm | DPDT | Panel Mount | 90 ° | Solder Lug | On-On | 2 | Copper | Flat Key | Silver | Epoxy Sealed Terminals | 125 V | 1 | |||
LITTELFUSE | Not Specified | 28 V | 4 A | 10000 Cycles | 11.99 mm | SPDT | Panel Mount | 90 ° | Solder Lug | On-On | 2 | Copper | Flat Key | Silver | Epoxy Sealed Terminals | 125 V | 33.91 mm | All | |
 LITTELFUSE | Not Specified | 28 V | 4 A | 10000 Cycles | 11.99 mm | SPDT | Panel Mount | 90 ° | Solder Lug | On-On | 2 | Copper | Flat Key | Silver | Epoxy Sealed Terminals | 125 V | 33.91 mm | All | |
LITTELFUSE | Not Specified | 20 V | 0.4 VA | 10000 Cycles | 11.99 mm | SPDT | Panel Mount | 90 ° | Wire Leads | On-On | 2 | Copper | Flat Key | Gold | Epoxy Sealed Terminals | 20 V | All | ||
LITTELFUSE | Not Specified | 20 V | 0.4 VA | 10000 Cycles | 11.99 mm | SPDT | Panel Mount | 90 ° | Solder Lug | On-On | 2 | Copper | Flat Key | Gold | Epoxy Sealed Terminals | 20 V | 33.91 mm | All | |
LITTELFUSE | Not Specified | 28 V | 4 A | 10000 Cycles | 11.99 mm | SPDT | Panel Mount | 90 ° | Solder Lug | On-On | 2 | Copper | Flat Key | Silver | Epoxy Sealed Terminals | 125 V | 1 | 33.91 mm | |
 LITTELFUSE | Not Specified | 28 V | 4 A | 11.99 mm | DPDT | Panel Mount | 90 ° | Solder Lug | On-On | 2 | Copper | Flat Key | Silver | Epoxy Sealed Terminals | 125 V | 1 |
