CMLE061E Series

Catalog

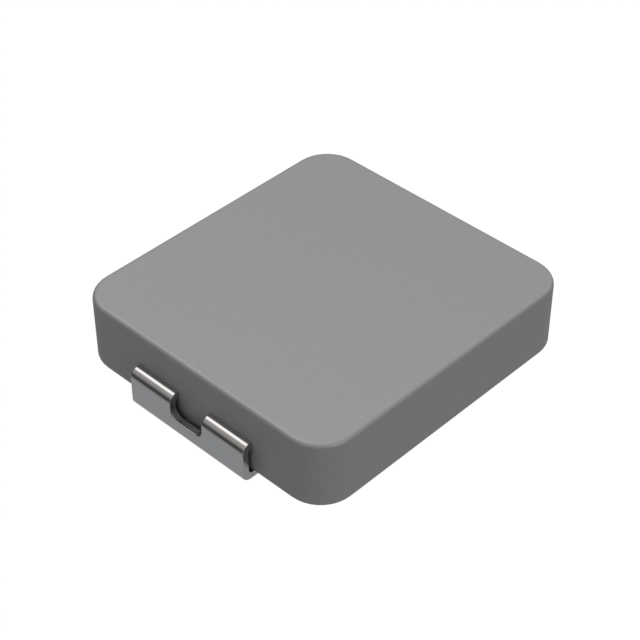

FIXED IND 470NH 13A 8.5MOHM SMD

Part	Tolerance	DC Resistance (DCR) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Inductance Frequency - Test	Current - Saturation (Isat)	Inductance	Shielding	Mounting Type	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	DC Resistance (DCR)
Delta Electronics/Cyntec CMLE061E-R47MS	20 %	8.5 mOhm	Nonstandard	-55 C	125 °C	0.059 "	1.5 mm	100 kHz	15.5 A	470 nH	Shielded	Surface Mount	Metal	6.47 mm	0.27 in	0.255 in	6.86 mm	13 A
Delta Electronics/Cyntec CMLE061E-4R7MS	20 %	84 mOhm	Nonstandard	-55 C	125 °C	0.059 "	1.5 mm	100 kHz	4.5 A	4.7 ÁH	Shielded	Surface Mount	Metal	6.47 mm	0.27 in	0.255 in	6.86 mm	3.5 A
Delta Electronics/Cyntec CMLE061E-R56MS	20 %	11 mOhm	Nonstandard	-55 C	125 °C	0.059 "	1.5 mm	100 kHz	14 A	560 nH	Shielded	Surface Mount	Metal	6.47 mm	0.27 in	0.255 in	6.86 mm	10 A
Delta Electronics/Cyntec CMLE061E-2R2MS	20 %	42 mOhm	Nonstandard	-55 C	125 °C	0.059 "	1.5 mm	100 kHz	6.1 A	2.2 µH	Shielded	Surface Mount	Metal	6.47 mm	0.27 in	0.255 in	6.86 mm	6 A
Delta Electronics/Cyntec CMLE061E-R33MS	20 %		Nonstandard	-55 C	125 °C	0.059 "	1.5 mm	100 kHz	19 A	330 nH	Shielded	Surface Mount	Metal	6.47 mm	0.27 in	0.255 in	6.86 mm	13.5 A	6.5 mOhm
Delta Electronics/Cyntec CMLE061E-R12MS	20 %	3.65 mOhm	Nonstandard	-55 C	125 °C	0.059 "	1.5 mm	100 kHz		120 nH	Shielded	Surface Mount	Metal	6.47 mm	0.27 in	0.255 in	6.86 mm	19 A
Delta Electronics/Cyntec CMLE061E-1R2MS	20 %	25 mOhm	Nonstandard	-55 C	125 °C	0.059 "	1.5 mm	100 kHz	8.5 A	1.2 µH	Shielded	Surface Mount	Metal	6.47 mm	0.27 in	0.255 in	6.86 mm	7.5 A
Delta Electronics/Cyntec CMLE061E-3R3MS	20 %		Nonstandard	-55 C	125 °C	0.059 "	1.5 mm	100 kHz	5.2 A	3.3 µH	Shielded	Surface Mount	Metal	6.47 mm	0.27 in	0.255 in	6.86 mm	3.8 A	63 mOhm
Delta Electronics/Cyntec CMLE061E-6R8MS	20 %		Nonstandard	-55 C	125 °C	0.059 "	1.5 mm	100 kHz	4 A	6.8 µH	Shielded	Surface Mount	Metal	6.47 mm	0.27 in	0.255 in	6.86 mm	3 A	130 mOhm
Delta Electronics/Cyntec CMLE061E-1R5MS	20 %		Nonstandard	-55 C	125 °C	0.059 "	1.5 mm	100 kHz	7.7 A	1.5 µH	Shielded	Surface Mount	Metal	6.47 mm	0.27 in	0.255 in	6.86 mm	7.2 A	28 mOhm
