RFPC-SMA Series
Manufacturer: GCT
Beta
⌘K

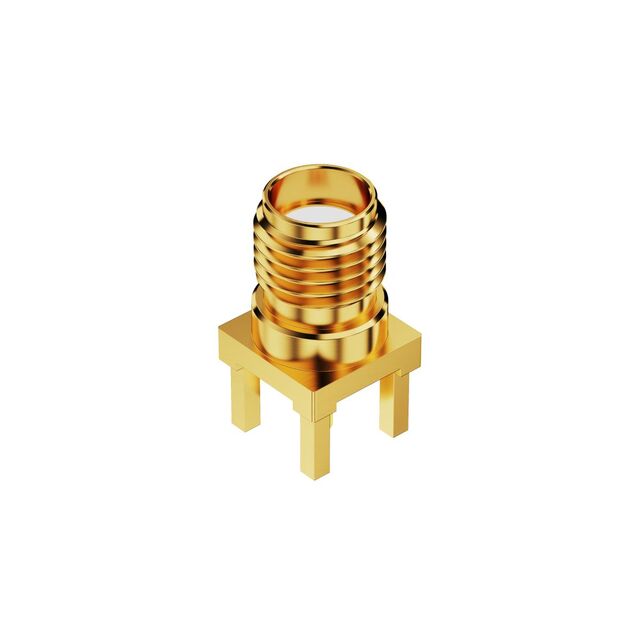

SMA VERTICAL PCB JACK
| Part | Connector Style | Body Material | Impedance | Shield Termination | Housing Color | Center Contact Material | Number of Ports | Contact Termination | Dielectric Material | Mounting Type | Fastening Type | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Connector Type | Frequency - Max [Max] | Includes | Ingress Protection | Features | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GCT | SMA | Brass | 50 Ohms | Solder | Gold | Brass | 1 | Solder | Polytetrafluoroethylene (PTFE) | Through Hole | Threaded | Gold | -55 C | 125 °C | Gold | Female Socket Jack | 6000 MHz | ||||
RP-SMA | Brass | Solder | Gold | Brass | 1 | Solder | Polytetrafluoroethylene (PTFE) | Panel Mount Through Hole | Threaded | Gold | Gold | Jack Male Pin | 6000 MHz | 1 Connector 1 Lockwasher 1 Nut | IP67/IP68 | IP Rated Unmated | Bulkhead - Front Side Nut | ||||
SMA | Solder | Gold | Beryllium Copper Brass | 1 | Solder | Panel Mount Right Angle Through Hole | Threaded | Female Socket Jack | 6000 MHz | IP67/IP68 | IP Rated Unmated | Bulkhead - Front Side Nut | |||||||||
 GCT | SMA | 50 Ohms | Solder | Gold | Brass | 1 | Solder | Right Angle Through Hole | Threaded | Female Socket Jack | 6000 MHz | ||||||||||
GCT | SMA | Brass | 50 Ohms | Solder | Gold | Brass | 1 | Solder | Polytetrafluoroethylene (PTFE) | Right Angle Through Hole | Threaded | Gold | -55 C | 125 °C | Gold | Female Socket Jack | 6000 MHz | ||||
RP-SMA | Brass | Solder | Gold | Brass | 1 | Solder | Polytetrafluoroethylene (PTFE) | Panel Mount Through Hole | Threaded | Gold | -55 C | 155 C | Gold | Jack Male Pin | 3 GHz | 1 Connector 1 Lockwasher 1 Nut | IP67/IP68 | IP Rated Unmated | Bulkhead - Front Side Nut | ||
SMA | Stainless Steel | 50 Ohms | Solder | Beryllium Copper | 1 | Solder | Polytetrafluoroethylene (PTFE) | Right Angle Through Hole | Threaded | -55 C | 155 C | Gold | Female Socket Jack | 6000 MHz | IP68 IP69K | IP Rated Unmated Stainless Steel 303 | Bulkhead - Front Side Nut | ||||
RP-SMA | Solder | Gold | Brass | 1 | Solder | Panel Mount Through Hole | Threaded | Jack Male Pin | 6000 MHz | IP67/IP68 | IP Rated Unmated | Bulkhead - Front Side Nut | |||||||||
 GCT | RP-SMA | 50 Ohms | Solder | Gold | Brass | 1 | Solder | Right Angle Through Hole | Threaded | Jack Male Pin | 6000 MHz | ||||||||||
GCT | RP-SMA | Brass | 50 Ohms | Solder | Gold | Brass | 1 | Solder | Polytetrafluoroethylene (PTFE) | Right Angle Through Hole | Threaded | Gold | -55 C | 125 °C | Gold | Jack Male Pin | 6000 MHz |
