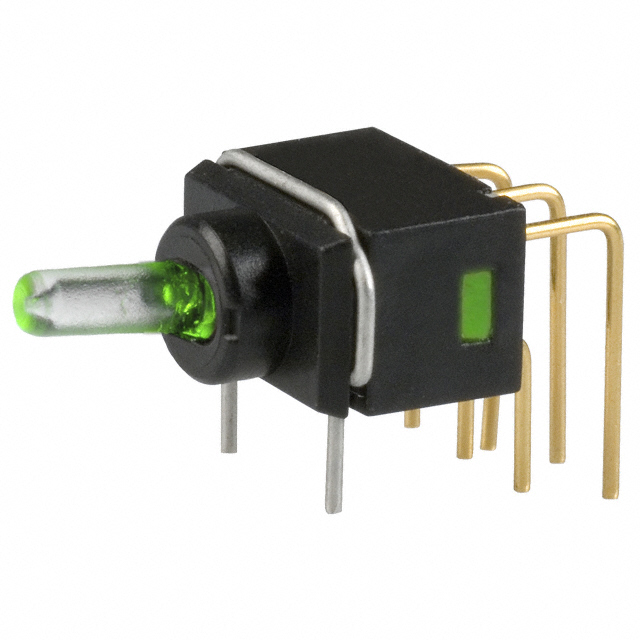

G13JH Series
Manufacturer: NKK Switches
Beta
⌘K
ULTRA-MINIATURE FULLY ILLUMINATED TOGGLE
| Part | Electrical Life | Actuator Material | Current Rating (Amps) | Voltage Rating - DC | Termination Style | Bushing Thread | Actuator Length [x] | Illumination | Features | Switch Function | Voltage Rating - AC | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) | Illumination Type, Color | Mounting Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | Glass Filled Nylon Polyamide (PA) | 0.4 VA | 28 V | PC Pin | Unthreaded | 3.8 mm | Illuminated | Process Sealed | On-Off-On | 28 V | Standard Round | 85 °C | -25 °C | 2 VDC 2.1 VDC | Green/Red LED | Right Angle Through Hole | SPDT |
