6609016 Series

Manufacturer: TE Connectivity Corcom Filters

Catalog

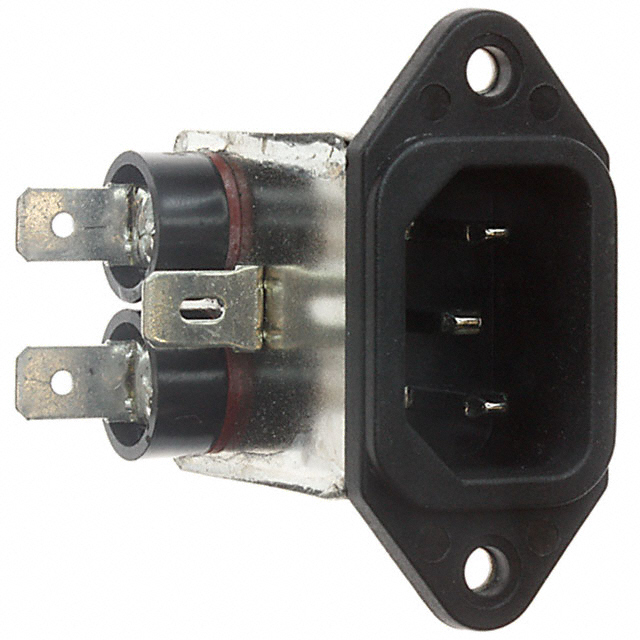

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Features	Mounting Type	Filter Type	Approval Agency	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Filter	Panel Cutout Dimensions	Current Rating - Appliance Inlet	Termination	Termination	Termination	Connector Type	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
TE Connectivity Corcom Filters 1-6609016-1	Ground Circuit Inductor	Flange Panel Mount	Filtered (EMI RFI) - Commercial	CSA UL VDE	120 VAC	250 VAC	6 A	Variable Size	6 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	IEC 320-C14
TE Connectivity Corcom Filters 6609016-3		Flange Panel Mount Right Angle	Filtered (EMI RFI) - Commercial	CSA UL VDE	120 VAC	250 VAC	1 A		1 A		Wire Leads		Receptacle Male Blades	IEC 320-C14	30.48 mm	22.86 mm
TE Connectivity Corcom Filters 1-6609016-7	Front or Rear Side Mount Ground Circuit Inductor	Flange Panel Mount	Filtered (EMI RFI) - Commercial	CSA UL VDE	120 VAC	250 VAC	10 A	Variable Size	10 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	IEC 320-C14
TE Connectivity Corcom Filters 1-6609016-2		Flange Panel Mount Right Angle	Filtered (EMI RFI) - Commercial	CSA UL VDE	120 VAC	250 VAC	6 A		6 A		Wire Leads		Receptacle Male Blades	IEC 320-C14	30.48 mm	22.86 mm
TE Connectivity Corcom Filters 1-6609016-3	Front or Rear Side Mount	Flange Panel Mount	Filtered (EMI RFI) - Commercial	CSA UL VDE	120 VAC	250 VAC	6 A	Variable Size	6 A		Wire Leads		Receptacle Male Blades	IEC 320-C14
TE Connectivity Corcom Filters 6609016-6		Flange Panel Mount Right Angle	Filtered (EMI RFI) - Commercial	CSA UL VDE	120 VAC	250 VAC	3 A		3 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	IEC 320-C14	30.48 mm	22.86 mm
