45386 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

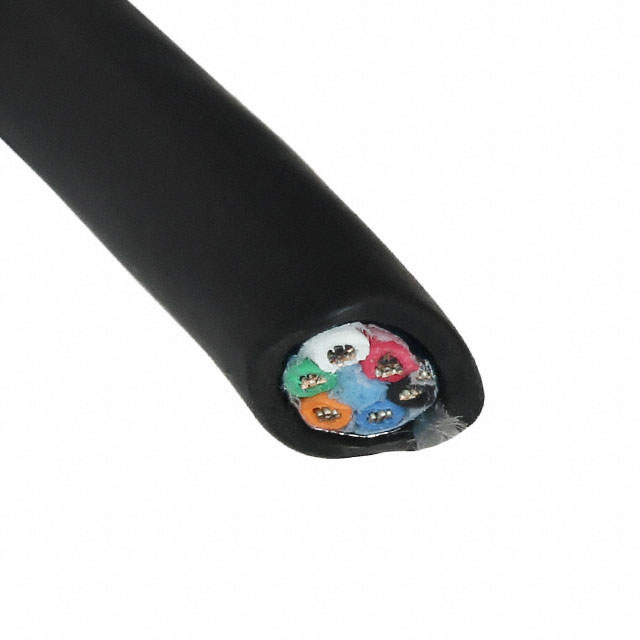

CABLE 6COND 18AWG SHLD 1000'
| Part | Ratings | Number of Conductors | Shield Material | Jacket (Insulation) Material | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Shield Type | Wire Gauge | Cable Type | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Length | Length | Conductor Insulation | Length [x] | Length [x] | Spool Size | Spool Size | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | ISO 10993 | 6 | Aluminum | Thermoplastic Elastomer (TPE) | Slate | -50 °C | 125 °C | 300 V | 16 | 30 AWG | 0.337 in | 8.56 mm | Copper Tinned | Foil | 18 AWG | Multi-Conductor | 100 % | 1.143 mm | 0.045 in | Biological Compatibility Drain Wire Rip Cord | 1000 ft | 304.8 m | Thermoplastic Elastomer (TPE) | |||||
 ALPHA WIRE | ISO 10993 | 6 | Aluminum | Thermoplastic Elastomer (TPE) | Black | -50 °C | 125 °C | 300 V | 16 | 30 AWG | 0.337 in | 8.56 mm | Copper Tinned | Foil | 18 AWG | Multi-Conductor | 100 % | 1.143 mm | 0.045 in | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | 30.5 m | 100 ft | |||||
ALPHA WIRE | ISO 10993 | 6 | Aluminum | Thermoplastic Elastomer (TPE) | Black | -50 °C | 125 °C | 300 V | 16 | 30 AWG | 0.337 in | 8.56 mm | Copper Tinned | Foil | 18 AWG | Multi-Conductor | 100 % | 1.143 mm | 0.045 in | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m | Enter Number of Feet in Order Quantity |
