A3UL-TBY Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSHBUTTON SPDT 0.1A 30V

Part	Mechanical Life	Electrical Life	Current Rating (Amps)	Termination Style	Illumination Type, Color	Circuit	Switch Function	Ingress Protection	Illumination Voltage (Nominal)	Voltage Rating - DC	Actuator Type	Mounting Type	Type	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]

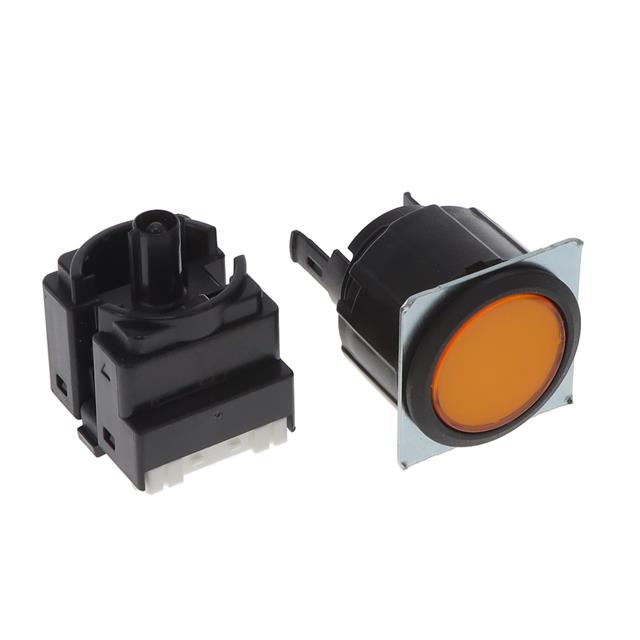

Omron Automation and Safety A3UL-TBY-3A1C-5M	1000000 Cycles	200000 Cycles	100 mA	Connector	LED Yellow	SPDT	On-Mom	IP65	24 V	30 V	Button Flush Round	Panel Mount Front	Illuminated Standard	No Marking	55 °C	-20 ░C	Clear	25.2 mm
Omron Automation and Safety A3UL-TBY-1A1C-5M	1000000 Cycles	200000 Cycles	100 mA	Connector	LED Yellow	SPDT	On-Mom	IP65	5 VDC	30 V	Button Flush Round	Panel Mount Front	Illuminated Standard	No Marking	55 °C	-20 ░C	Clear	25.2 mm

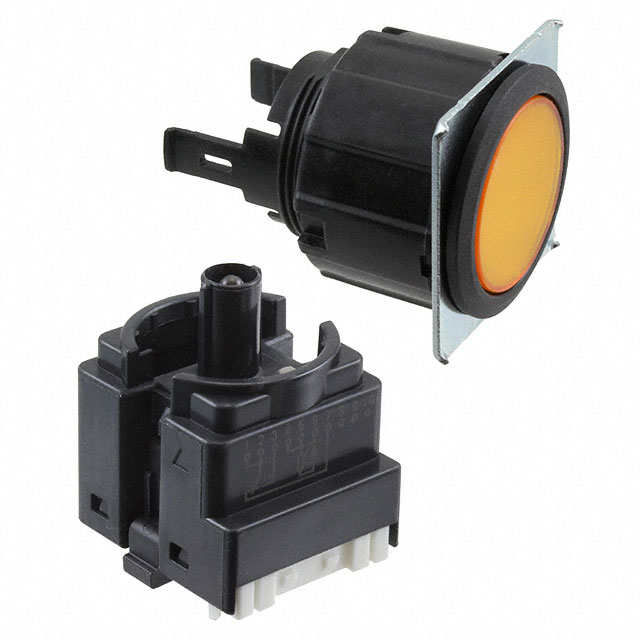

Omron Automation and Safety A3UL-TBY-3A1C-M	1000000 Cycles	200000 Cycles	100 mA	Connector	LED Yellow	SPDT	On-Mom	IP40	24 V	30 V	Button Flush Round	Panel Mount Front	Illuminated Standard	No Marking	55 °C	-20 ░C	Clear	25.2 mm

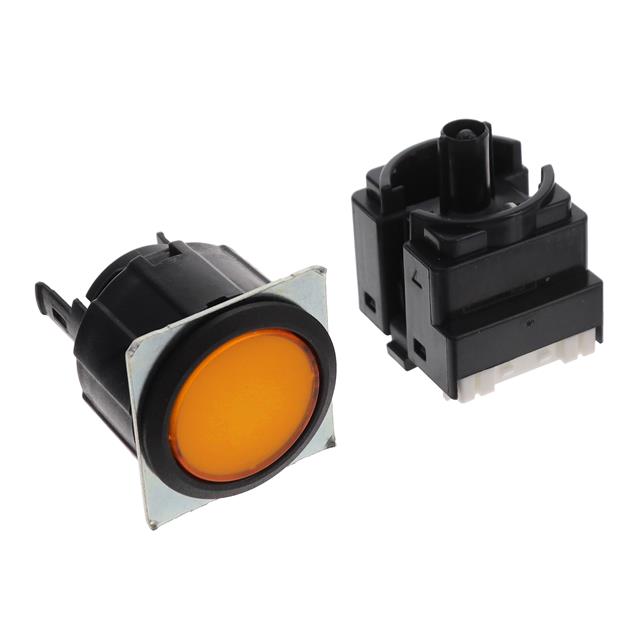

Omron Automation and Safety A3UL-TBY-1A1C-M	1000000 Cycles	200000 Cycles	100 mA	Connector	LED Yellow	SPDT	On-Mom	IP40	5 VDC	30 V	Button Flush Round	Panel Mount Front	Illuminated Standard	No Marking	55 °C	-20 ░C	Clear	25.2 mm
Omron Automation and Safety A3UL-TBY-2A2C-5M	1000000 Cycles	200000 Cycles	100 mA	Connector	LED Yellow	DPDT	On-Mom	IP65	12 VDC	30 V	Button Flush Round	Panel Mount Front	Illuminated Standard	No Marking	55 °C	-20 ░C	Clear	25.2 mm
Omron Automation and Safety A3UL-TBY-2A2C-M	1000000 Cycles	200000 Cycles	100 mA	Connector	LED Yellow	DPDT	On-Mom	IP40	12 VDC	30 V	Button Flush Round	Panel Mount Front	Illuminated Standard	No Marking	55 °C	-20 ░C	Clear	25.2 mm

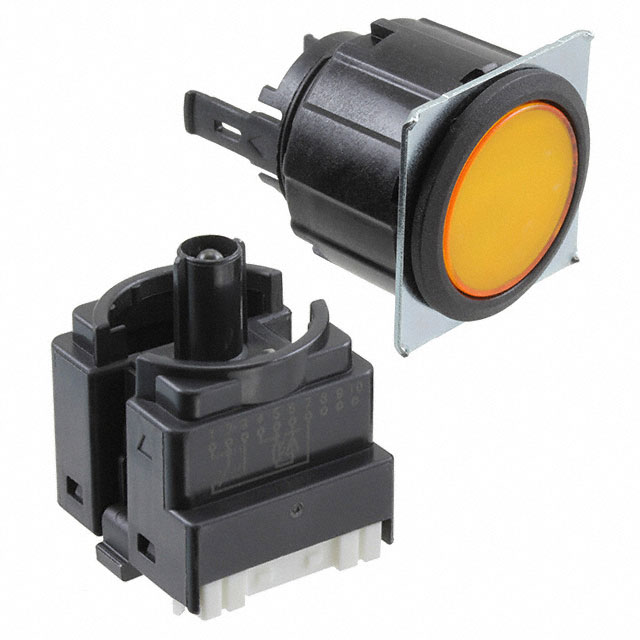

Omron Automation and Safety A3UL-TBY-2A1C-M	1000000 Cycles	200000 Cycles	100 mA	Connector	LED Yellow	SPDT	On-Mom	IP40	12 VDC	30 V	Button Flush Round	Panel Mount Front	Illuminated Standard	No Marking	55 °C	-20 ░C	Clear	25.2 mm
