837-052 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 52POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Contact Material	Mounting Type	Card Type	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Gender	Number of Positions	Number of Rows [custom]	Read Out	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Type	Features
EDAC Inc. 837-052-540-812	2	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	125 °C	-40 C	Wire Wrap	Female	52	2	Dual	26	0.25 Ám	10 Áin	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Cantilever
EDAC Inc. 837-052-544-207	2	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	125 °C	-40 C	Wire Wrap	Female	52	2	Dual	26	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening			Cantilever
EDAC Inc. 837-052-544-208	2	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	125 °C	-40 C	Wire Wrap	Female	52	2	Dual	26	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			Cantilever

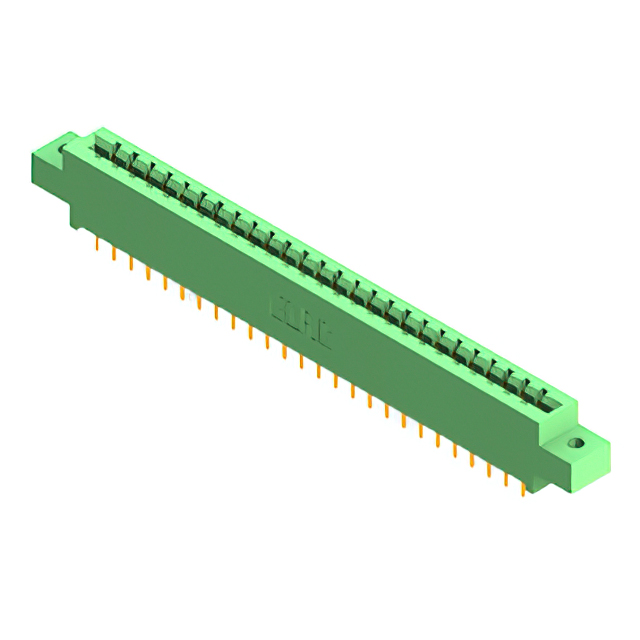

EDAC Inc. 837-052-521-802	2	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	125 °C	-40 C	Solder	Female	52	2	Dual	26	0.25 Ám	10 Áin		0.128 "	3.25 mm	Cantilever
EDAC Inc. 837-052-556-808	2	Diallyl Phthalate (DAP)	Copper Alloy	Board Edge Straddle Mount	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	125 °C	-40 C	Solder	Female	52	2	Dual	26	0.25 Ám	10 Áin	4-40 Threaded Insert Top Mount Opening			Cantilever	Card Extender

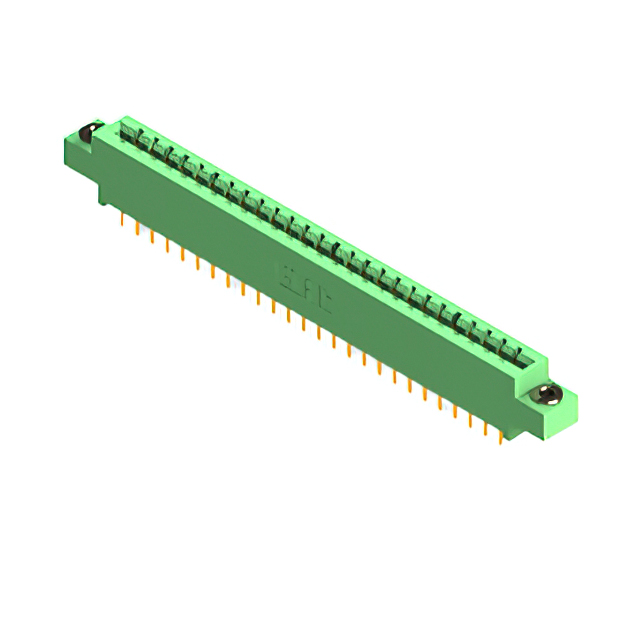

EDAC Inc. 837-052-541-803	2	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	125 °C	-40 C	Wire Wrap	Female	52	2	Dual	26	0.25 Ám	10 Áin	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Cantilever
EDAC Inc. 837-052-523-201	2	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	125 °C	-40 C	Solder	Female	52	2	Dual	26	0.25 Ám	10 Áin				Cantilever

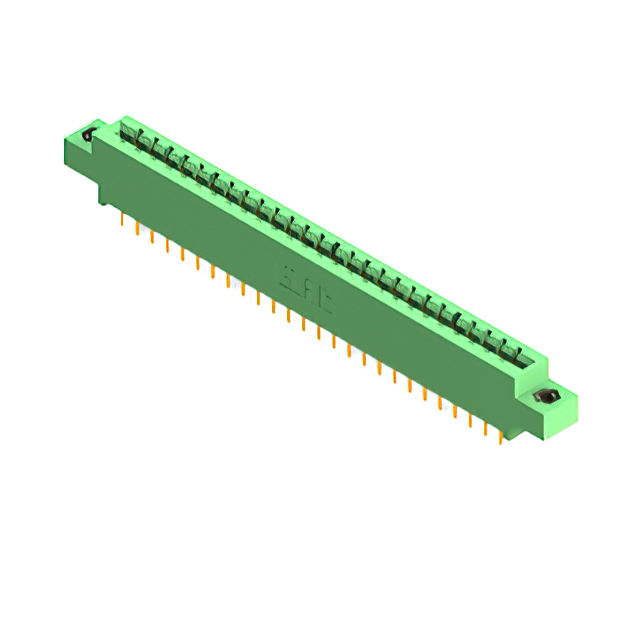

EDAC Inc. 837-052-541-808	2	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	125 °C	-40 C	Wire Wrap	Female	52	2	Dual	26	0.25 Ám	10 Áin	4-40 Threaded Insert Top Mount Opening			Cantilever
EDAC Inc. 837-052-556-207	2	Diallyl Phthalate (DAP)	Copper Alloy	Board Edge Straddle Mount	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	125 °C	-40 C	Solder	Female	52	2	Dual	26	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening			Cantilever	Card Extender
EDAC Inc. 837-052-542-207	2	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	125 °C	-40 C	Wire Wrap	Female	52	2	Dual	26	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening			Cantilever
