PR20C04V Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, THR, SINGLE ROW, 2.0
| Part | Contact Shape | Contact Length - Post [custom] | Contact Length - Post | Shrouding | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Insulation Material | Connector Type | Contact Type | Contact Finish - Mating | Insulation Color | Pitch - Mating | Pitch - Mating | Termination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Fastening Type | Number of Rows | Contact Finish Thickness - Mating | Overall Contact Length | Overall Contact Length | Number of Positions | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

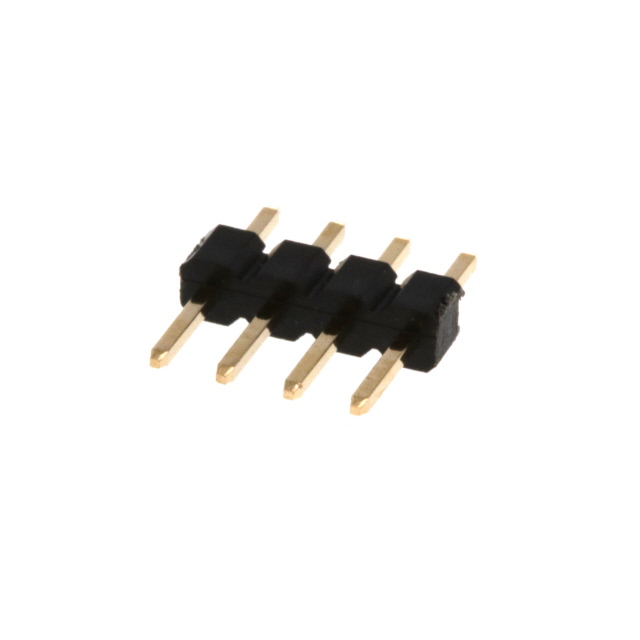

 METZ CONNECT USA Inc. | Square | 0.11 in | 2.79 mm | Unshrouded | 2 mm | 0.079 in | All | 0.154 in | 3.91 mm | Polyethylene | Header | Male Pin | Gold | Black | 0.079 " | 2 mm | Solder | Through Hole | -55 C | 105 ░C | Copper Zinc | Push-Pull | 1 | Flash | 0.343 in | 8.7 mm | 4 | |||

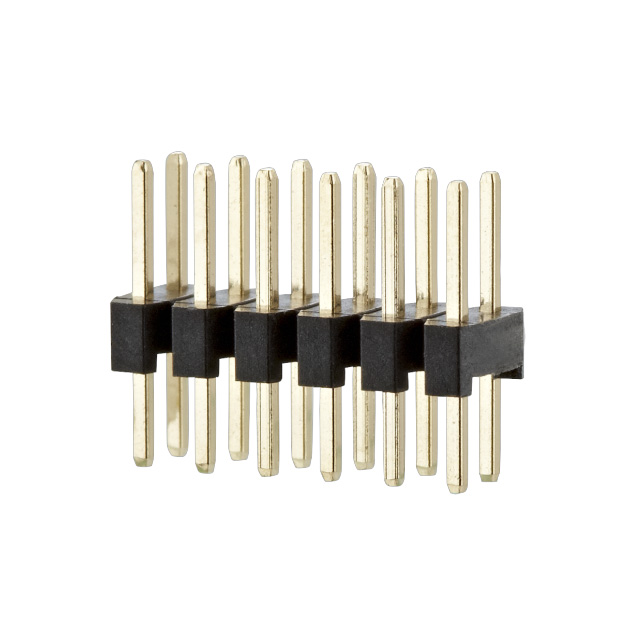

 METZ CONNECT USA Inc. | Square | 0.11 in | 2.79 mm | Unshrouded | 2 mm | 0.079 in | All | 0.154 in | 3.91 mm | Polyethylene | Header | Male Pin | Gold | Black | 0.079 " | 2 mm | Solder | Through Hole | -40 C | 105 ░C | Copper Alloy | Push-Pull | Flash | 0.343 in | 8.7 mm | 8 | 2 | 2 mm | 0.079 in |
