726-116 Series

Manufacturer: EDAC Inc.

Catalog

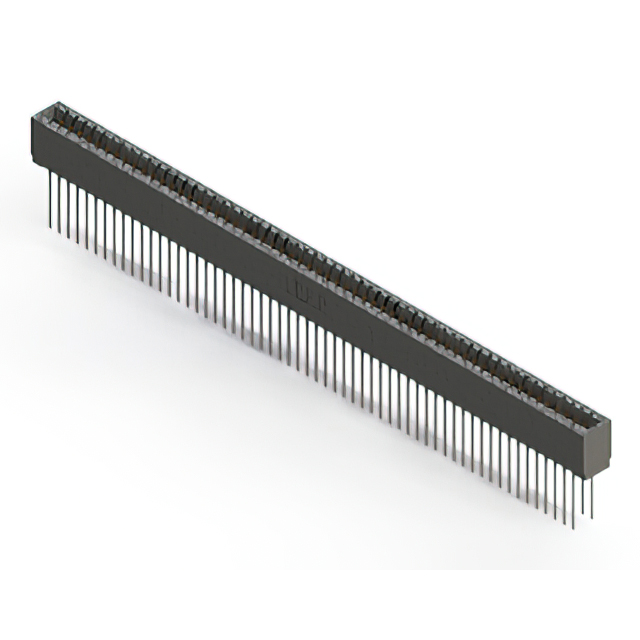

CONN EDGE DUAL FML 116POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Contact Type	Number of Positions/Bay/Row	Pitch	Pitch	Card Type	Number of Rows [custom]	Gender	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Termination	Read Out
EDAC Inc. 726-116-541-201	Polyester Thermoplastic	2	Through Hole	Cantilever	58	3.18 mm	0.125 in	Non Specified - Dual Edge	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	30 Áin	0.76 Ám	Gold	116	Press-Fit Wire Wrap	Dual
EDAC Inc. 726-116-553-201	Polyester Thermoplastic	2	Through Hole	Cantilever	58	3.18 mm	0.125 in	Non Specified - Dual Edge	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	30 Áin	0.76 Ám	Gold	116	Press-Fit Wire Wrap	Dual
EDAC Inc. 726-116-545-201	Polyester Thermoplastic	2	Through Hole	Cantilever	58	3.18 mm	0.125 in	Non Specified - Dual Edge	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	30 Áin	0.76 Ám	Gold	116	Press-Fit Wire Wrap	Dual
