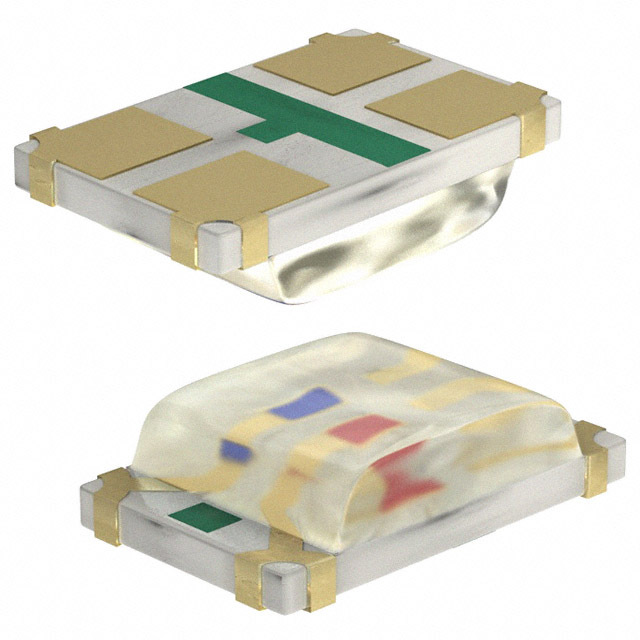

APHBM2012 Series

Catalog

LED RED/YLW CLEAR 2012 SMD

Part	Lens Color	Lens Style	Viewing Angle	Current - Test	Lens Size [y]	Lens Size [x]	Millicandela Rating [custom]	Millicandela Rating [custom]	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Supplier Device Package	Wavelength - Peak	Lens Transparency	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Color	Configuration	Mounting Type	Wavelength - Peak	Millicandela Rating	Wavelength - Dominant	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating	Wavelength - Peak [custom]	Current - Test [custom]	Current - Test [custom]
Kingbright APHBM2012SURKSYKC	Colorless	Rectangle with Flat Top	120 °	20 mA 20 mA	1.25 mm	1.3 mm	200 mcd	150 mcd	0805	1.95 V 2 V	590nm Yellow 635nm Red	2012(0805)	590nm Yellow 650nm Red	Clear	0.45 mm	2 mm	1.25 mm	Red Yellow	Independent	Surface Mount
Kingbright APHBM2012LVBDSYKJ3C	Colorless	Rectangle with Flat Top	120 °	2 mA 2 mA	1.25 mm	1.2 mm			4-SMD No Lead	1.9 V 2.7 V	470nm Blue 590nm Yellow	4-SMD		Clear	0.45 mm	2 mm	1.25 mm	Blue Yellow	Independent	Surface Mount	465 nm 590 nm	20 mcd 35 mcd
Kingbright APHBM2012LVBDZGKC	Colorless	Rectangle with Flat Top	120 °	2 mA	1.25 mm	1.2 mm			0805	2.7 V 2.7 V		4-SMD	465nm Blue 515nm Green	Clear	0.45 mm	2 mm	1.25 mm	Blue Green	Independent	Surface Mount		20 mcd 90 mcd	470 nm 525 nm
Kingbright APHBM2012LQBDCGKC	Colorless	Rectangle with Flat Top	120 °	2 mA	1.25 mm	1.2 mm			4-SMD No Lead	1.9 V 2.7 V	465nm Blue 570nm Green	4-SMD		Clear	0.45 mm	2 mm	1.25 mm	Blue Green	Independent	Surface Mount	460 nm 574 nm	2 mcd 12 mcd
Kingbright APHBM2012CGKSYKC	Colorless	Rectangle with Flat Top	120 °	20 mA 20 mA	1.25 mm	1.3 mm			0805			2012(0805)	574nm Green 590nm Yellow	Clear	0.45 mm	2 mm	1.25 mm	Green Yellow	Independent	Surface Mount		50 mcd 120 mcd	570 nm 590 nm	2.1 V	2 V
Kingbright APHBM2012LSURKSYKC	Colorless	Rectangle with Flat Top	120 °		1.25 mm	1.2 mm			4-SMD No Lead	1.8 V 1.9 V		4-SMD		Clear	0.45 mm	2 mm	1.25 mm	Red Yellow	Independent	Surface Mount		10 mcd 10 mcd	590 nm 630 nm			2mA Red 2mA Yellow	645 nm	590 nm
Kingbright APHBM2012QBDSURKC	Colorless	Rectangle with Flat Top	120 °		1.25 mm	1.3 mm			0805			2012(0805)		Clear	0.45 mm	2 mm	1.25 mm	Blue Red	Independent	Surface Mount	460 nm 645 nm	80 mcd 80 mcd	465 nm 630 nm			20mA Blue 20mA Red			1.95 V	3.3 V
Kingbright APHBM2012LVBDSEKJ3C	Colorless	Rectangle with Flat Top	120 °	2 mA 2 mA	1.25 mm	1.2 mm			0805	1.8 V 2.7 V	470nm Blue 625nm Red	4-SMD		Clear	0.45 mm	2 mm	1.25 mm	Blue Red	Independent	Surface Mount	465 nm 640 nm										20mcd Blue 60mcd Red

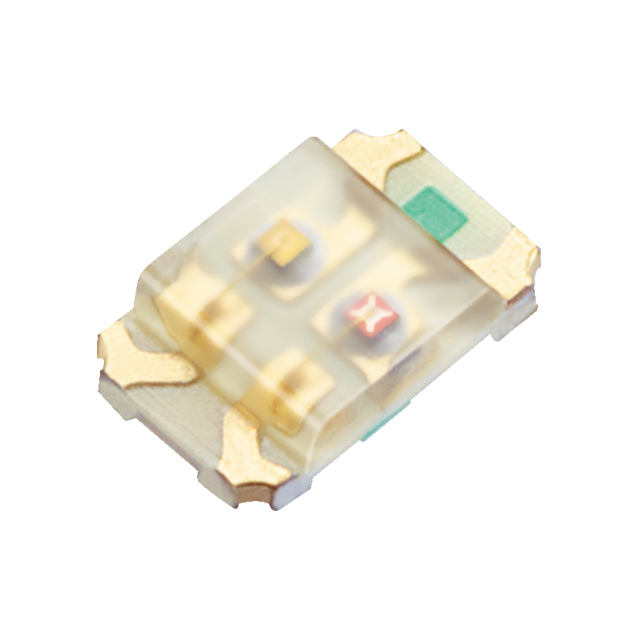

Kingbright APHBM2012SURKZGKC	Colorless	Rectangle with Flat Top	120 °		1.2 mm	1.25 mm			0805	1.95 V 3.3 V	525nm Green 630nm Red	4-SMD		Clear	0.45 mm	2 mm	1.25 mm	Green Red	Independent	Surface Mount		250 mcd 280 mcd										515 nm 645 nm	20 mA	20 mA
Kingbright APHBM2012LSURKZGKC	Colorless	Rectangle with Flat Top	120 °	2 mA 2 mA	1.25 mm	1.2 mm			0805	1.8 V 2.7 V	525nm Green 630nm Red	4-SMD		Clear	0.45 mm	2 mm	1.25 mm	Green Red	Independent	Surface Mount		10 mcd 90 mcd										515 nm 645 nm
