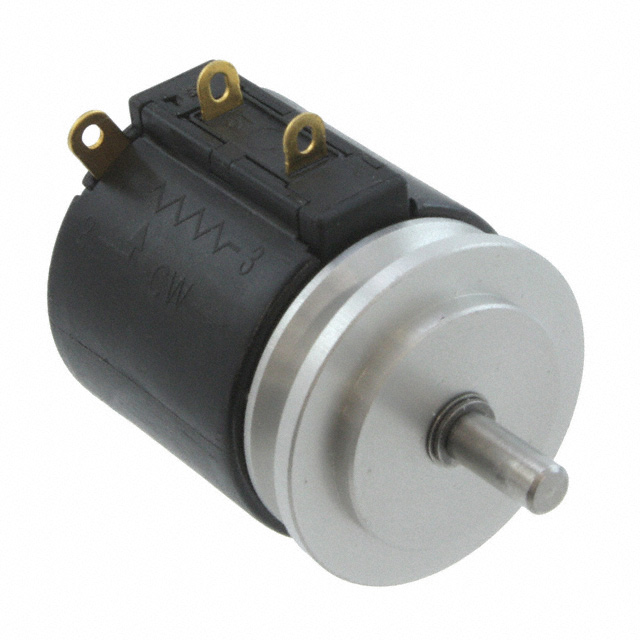

3549S Series
Manufacturer: Bourns Inc.
Beta
⌘K
PRECISION POT-7/8" 22MM DIA 10T WW /TRAY PACKAGING
| Part | Size - Body [diameter] | Size - Body [diameter] | Number of Gangs | Bushing Thread | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Turns | Built in Switch | Tolerance | Resistance (Ohms) [custom] | Mounting Type | Adjustment Type | Actuator Length [x] | Actuator Length [x] | Temperature Coefficient | Actuator Type | Termination Style | Taper | Rotation | Resistive Material | Power (Watts) | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 22.48 mm | 0.885 " | 1 | 3/8-32 | 6.35 mm | 0.25 in | 10 | None | 3 % | 500 Ohms | Panel Mount | User Defined | 20.64 mm | 0.813 in | 50 ppm/░C | Slotted | Solder Lug | Linear | 3600 ° | Wirewound | 2 W | ||
Bourns Inc. | 22.48 mm | 0.885 " | 1 | 3/8-32 | 6.35 mm | 0.25 in | 10 | None | 3 % | 100 Ohms | Panel Mount | User Defined | 20.64 mm | 0.813 in | 50 ppm/░C | Slotted | Solder Lug | Linear | 3600 ° | Wirewound | 2 W | ||
 Bourns Inc. | 22.48 mm | 0.885 " | 1 | 3/8-32 | 6.35 mm | 0.25 in | 10 | None | 3 % | Panel Mount | User Defined | 20.64 mm | 0.813 in | 50 ppm/░C | Slotted | Solder Lug | Linear | 3600 ° | Wirewound | 2 W | 1k | ||
Bourns Inc. | 22.48 mm | 0.885 " | 1 | 3/8-32 | 6.35 mm | 0.25 in | 10 | None | 3 % | Panel Mount | User Defined | 20.64 mm | 0.813 in | 50 ppm/░C | Slotted | Solder Lug | Linear | 3600 ° | Wirewound | 2 W | 2 kOhms | ||
Bourns Inc. | 22.48 mm | 0.885 " | 1 | 3/8-32 | 6.35 mm | 0.25 in | 10 | None | 3 % | Panel Mount | User Defined | 20.64 mm | 0.813 in | 50 ppm/░C | Slotted | Solder Lug | Linear | 3600 ° | Wirewound | 2 W | 5 kOhms | ||
Bourns Inc. | 22.48 mm | 0.885 " | 1 | M9 x 0.75 | 6 mm | 0.236 in | 10 | None | 3 % | Panel Mount | User Defined | 20.6 mm | 0.811 in | 50 ppm/░C | Slotted | Solder Lug | Linear | 3600 ° | Wirewound | 2 W | 10k | ||
Bourns Inc. | 22.48 mm | 0.885 " | 1 | M9 x 0.75 | 6 mm | 0.236 in | 10 | None | 3 % | Panel Mount | User Defined | 20.6 mm | 0.811 in | 50 ppm/░C | Slotted | Solder Lug | Linear | 3600 ° | Wirewound | 2 W | 10k | ||
 Bourns Inc. | 22.48 mm | 0.885 " | 1 | M9 x 0.75 | 6 mm | 0.236 in | 10 | None | 3 % | Panel Mount | User Defined | 20.6 mm | 0.811 in | 50 ppm/░C | Slotted | Solder Lug | Linear | 3600 ° | Wirewound | 2 W | 10k | ||
Bourns Inc. | 22.48 mm | 0.885 " | 1 | 3/8-32 | 6.35 mm | 0.25 in | 10 | None | 3 % | Panel Mount | User Defined | 20.64 mm | 0.813 in | 50 ppm/░C | Slotted | Solder Lug | Linear | 3600 ° | Wirewound | 2 W | 20 kOhms | ||
Bourns Inc. | 22.48 mm | 0.885 " | 1 | 3/8-32 | 6.35 mm | 0.25 in | 10 | None | 3 % | Panel Mount | User Defined | 20.64 mm | 0.813 in | 50 ppm/░C | Slotted | Solder Lug | Linear | 3600 ° | Wirewound | 2 W | 100k |
