L77HDA26 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB HD RCPT 26P SLDR CUP

Part	Contact Form	Dielectric Material	Contact Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Connector Type	Contact Finish Thickness	Contact Finish	Number of Positions	Connector Style	Contact Type	Mounting Type	Flange Feature	Current Rating (Amps)	Material Flammability Rating	Number of Rows [custom]	Color	Features	Backset Spacing	Backset Spacing	Termination	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L77HDA26SVF	Stamped	Thermoplastic Glass Filled	Phosphor Bronze	250 V	155 C	-55 C	2	DA A	Receptacle Female Sockets	Flash	Gold	26	D-Sub High Density	Signal	Free Hanging (In-Line)	4-40 Mating Side Female Screwlock	3 A	UL94 V-0	3
Amphenol ICC (Commercial Products) L77HDA26SD1CH3R	Stamped	Thermoplastic Glass Filled	Brass	250 V	105 ░C	-55 C	2	DA A	Receptacle Female Sockets	Flash	Gold	26	D-Sub High Density	Signal	Right Angle Through Hole	Board Side (M3)	3 A	UL94 V-0	3	Black	Board Lock Grounding Tabs	8.89 mm	0.35 in	Solder

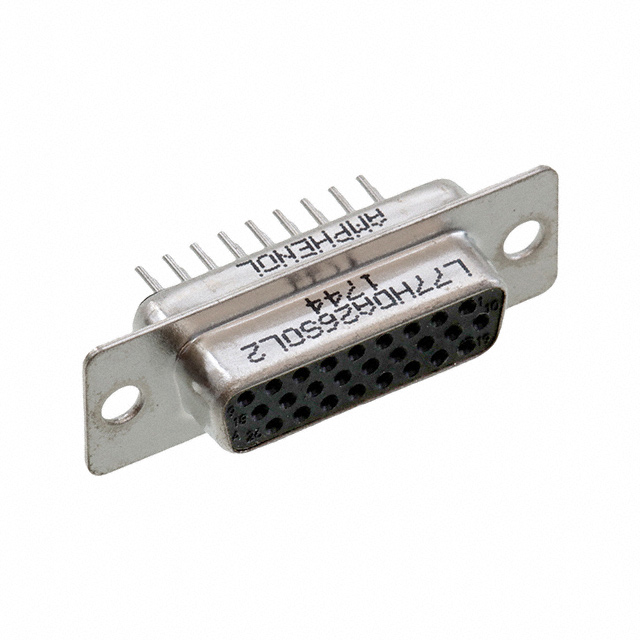

Amphenol ICC (Commercial Products) L77HDA26SOL2	Stamped	Polybutylene Terephthalate (PBT) Glass Filled	Brass	250 V	105 ░C	-55 C	2	DA A	Receptacle Female Sockets	Flash	Gold	26	D-Sub High Density	Signal	Through Hole	Housing/Shell (Unthreaded)	3 A	UL94 V-0	3	Black				Solder

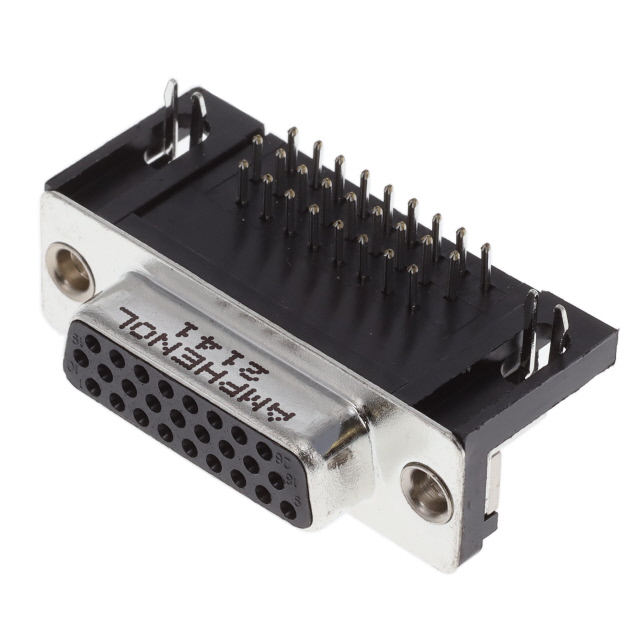

Amphenol ICC (Commercial Products) L77HDA26SD1CH4R	Stamped	Thermoplastic Glass Filled	Brass	250 V	105 ░C	-55 C	2	DA A	Receptacle Female Sockets	Flash	Gold	26	D-Sub High Density	Signal	Right Angle Through Hole	Board Side (4-40)	3 A	UL94 V-0	3	Black	Board Lock Grounding Tabs	8.89 mm	0.35 in	Solder
Amphenol ICC (Commercial Products) L77HDA26SC309	Stamped	Thermoplastic Glass Filled	Phosphor Bronze	250 V	155 C	-55 C	2	DA A	Receptacle Female Sockets		Gold	26	D-Sub High Density	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	3 A	UL94 V-0	3	Black					30 Áin	0.76 Ám
Amphenol ICC (Commercial Products) L77HDA26SD1CH3FC309	Stamped	Thermoplastic Glass Filled	Brass	250 V	105 ░C	-55 C	2	DA A	Receptacle Female Sockets		Gold	26	D-Sub High Density	Signal	Right Angle Through Hole	Mating Side Female Screwlock (M3)	3 A	UL94 V-0	3	Black	Board Lock Grounding Tabs	8.89 mm	0.35 in	Solder	30 Áin	0.76 Ám
Amphenol ICC (Commercial Products) L77HDA26S	Stamped	Thermoplastic Glass Filled	Phosphor Bronze	250 V	155 C	-55 C	2	DA A	Receptacle Female Sockets	Flash	Gold	26	D-Sub High Density	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	3 A	UL94 V-0	3	Black
Amphenol ICC (Commercial Products) L77HDA26SVFM	Stamped	Thermoplastic Glass Filled	Phosphor Bronze	250 V	155 C	-55 C	2	DA A	Receptacle Female Sockets	Flash	Gold	26	D-Sub High Density	Signal	Free Hanging (In-Line)	Mating Side Female Screwlock (M3)	3 A	UL94 V-0	3
Amphenol ICC (Commercial Products) L77HDA26SOL2C309	Stamped	Polybutylene Terephthalate (PBT) Glass Filled	Brass	250 V	105 ░C	-55 C	2	DA A	Receptacle Female Sockets		Gold	26	D-Sub High Density	Signal	Through Hole	Housing/Shell (Unthreaded)	3 A	UL94 V-0	3	Black				Solder	30 Áin	0.76 Ám
Amphenol ICC (Commercial Products) L77HDA26SVFC309	Stamped	Thermoplastic Glass Filled	Phosphor Bronze	250 V	155 C	-55 C	2	DA A	Receptacle Female Sockets		Gold	26	D-Sub High Density	Signal	Free Hanging (In-Line)	4-40 Mating Side Female Screwlock	3 A	UL94 V-0	3						30 Áin	0.76 Ám
