Q5-2X-1/2 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 1/2" X 82' BLACK

Part	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Type	Features	Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length	Length	Length	Length [x]	Length [x]

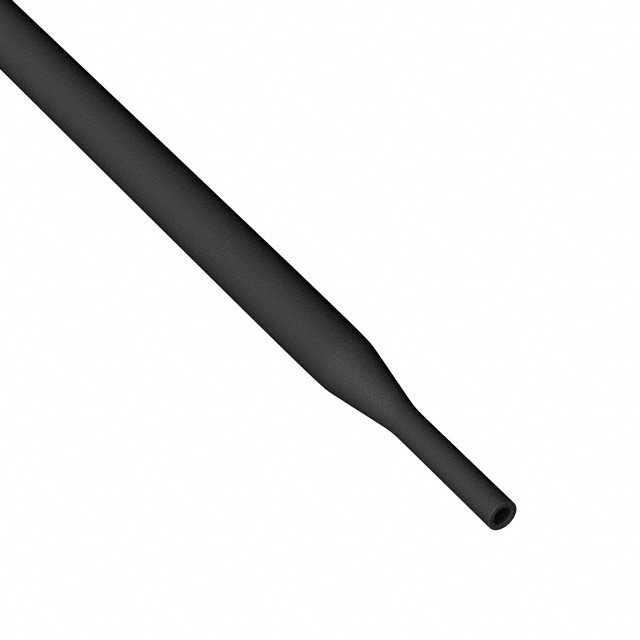

Qualtek Q5-2X-1/2-01-SS25M	0.76 mm	0.03 in	60 Months	Tubing Flexible	Adhesive Lined Self Extinguishing	Polyolefin (PO)	Black	-45 °C	125 °C	100 °C	40 °C	14 °F	-50 °F	40 °C	1	2	12.7 mm	0.5 "	6.35 mm	0.25 in	82 ft	25 m
Qualtek Q5-2X-1/2-01-QB6IN14	0.76 mm	0.03 in	60 Months	Tubing Flexible	Adhesive Lined Self Extinguishing	Polyolefin (PO)	Black	-45 °C	125 °C	100 °C	40 °C	14 °F	-50 °F	40 °C	1	2	12.7 mm	0.5 "	6.35 mm	0.25 in	0.5 '	152.4 mm	6 "

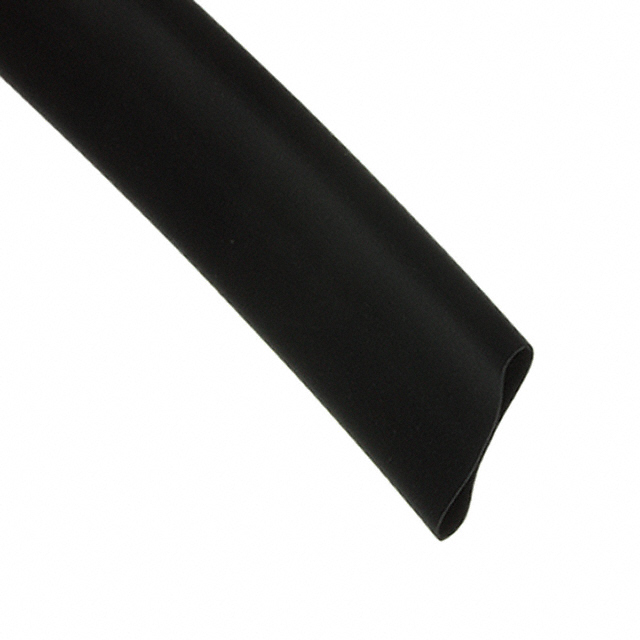

Qualtek Q5-2X-1/2-01-QB48IN-5	0.76 mm	0.03 in	60 Months	Tubing Flexible	Adhesive Lined Self Extinguishing	Polyolefin (PO)	Black	-45 °C	125 °C	100 °C	40 °C	14 °F	-50 °F	40 °C	1	2	12.7 mm	0.5 "	6.35 mm	0.25 in				4 ft	1.22 m
