RBE15 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

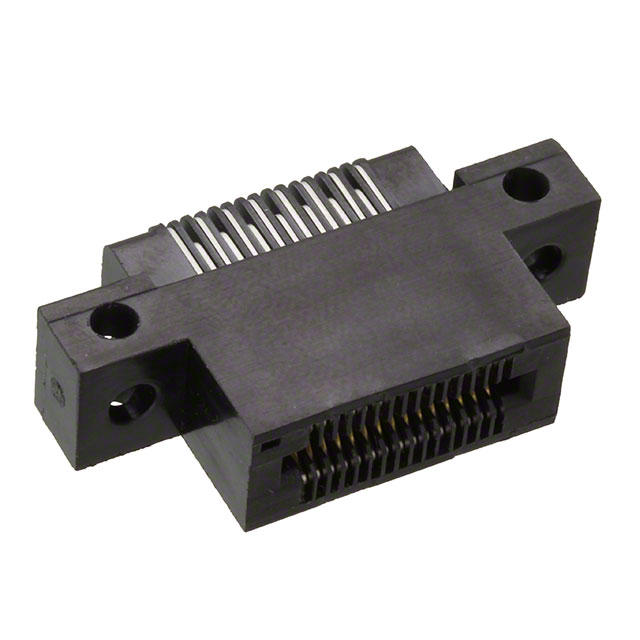

CONN EDGE DUAL FMALE 30POS 0.039
| Part | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Read Out | Number of Positions | Pitch | Pitch | Card Thickness | Card Thickness | Card Type | Number of Positions/Bay/Row | Color | Contact Finish | Gender | Contact Material | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm | Hairpin Bellows | 2 | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Right Angle Through Hole | Dual | 30 | 1 mm | 0.039 in | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 15 | Black | Gold | Female | Phosphor Bronze | Solder Staggered | |
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.125 " | Flush Mount Top Opening Unthreaded | 3.18 mm | Hairpin Bellows | 2 | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Board Edge Straddle Mount | Dual | 30 | 1 mm | 0.039 in | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 15 | Black | Gold | Female | Phosphor Bronze | Solder | Card Extender |
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | 2 | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Board Edge Straddle Mount | Dual | 30 | 1 mm | 0.039 in | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 15 | Black | Gold | Female | Phosphor Bronze | Solder | Card Extender | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.125 " | Flush Mount Top Opening Unthreaded | 3.18 mm | Hairpin Bellows | 2 | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Through Hole | Dual | 30 | 1 mm | 0.039 in | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 15 | Black | Gold | Female | Phosphor Bronze | Solder Staggered | |
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | 2 | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Board Edge Straddle Mount | Dual | 30 | 1 mm | 0.039 in | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 15 | Black | Gold | Female | Phosphor Bronze | Solder | Board Lock Card Extender | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 4-40 Flush Mount Threaded Insert Top Opening | Hairpin Bellows | 2 | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Through Hole | Dual | 30 | 1 mm | 0.039 in | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 15 | Black | Gold | Female | Phosphor Bronze | Solder Staggered | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | 2 | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Through Hole | Dual | 30 | 1 mm | 0.039 in | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 15 | Black | Gold | Female | Phosphor Bronze | Solder Staggered | Board Lock | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 4-40 Flush Mount Threaded Insert Top Opening | Hairpin Bellows | 2 | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Board Edge Straddle Mount | Dual | 30 | 1 mm | 0.039 in | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 15 | Black | Gold | Female | Phosphor Bronze | Solder | Card Extender | ||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | 2 | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Surface Mount | Dual | 30 | 1 mm | 0.039 in | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 15 | Black | Gold | Female | Phosphor Bronze | Solder | Board Lock |
