2484-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

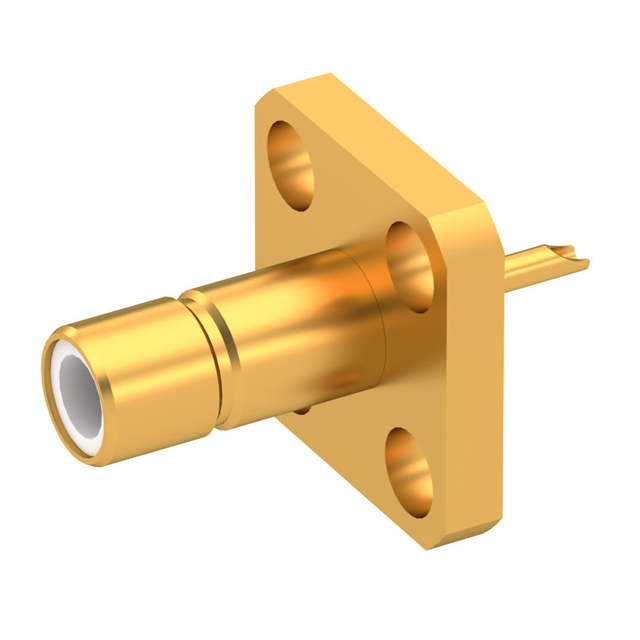

SMB / STRAIGHT JACK RECEPTACLE M
| Part | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Insertion Loss | Mating Cycles | Number of Ports | Housing Color | Contact Termination | Shield Termination | Connector Type | Frequency - Max [Max] | Mounting Feature | Center Contact Material | Fastening Type | Mounting Type | Connector Style | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | 0.3 dB | 500 | 1 | Gold | Solder Cup | Solder | Jack Male Pin | 4 GHz | Flange | Brass | Snap-On | Panel Mount | SMB | 50 Ohms |
