227086 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

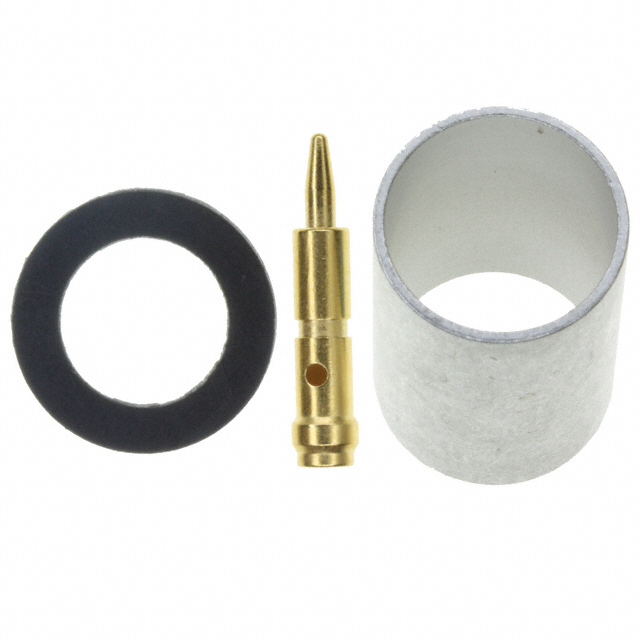

CONN N PLUG STR 50 OHM CRIMP
| Part | Mounting Type | Number of Ports | Center Contact Plating | Body Finish | Cable Group | Cable Group | Housing Color | Frequency - Max [Max] | Includes | Contact Termination | Connector Type | Connector Style | Impedance | Shield Termination | Center Contact Material | Mating Cycles | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | 1 | Gold | Nickel | 213 | RG-8 | Silver | 11 GHz | 1 Connector 1 Contact 1 Ferrule | Crimp | Male Pin Plug | N Type | 50 Ohms | Crimp | Brass | 500 | Fluoropolymer (FP) | Brass | -65 ░C | 85 °C | 1000 VDC |
