86604CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

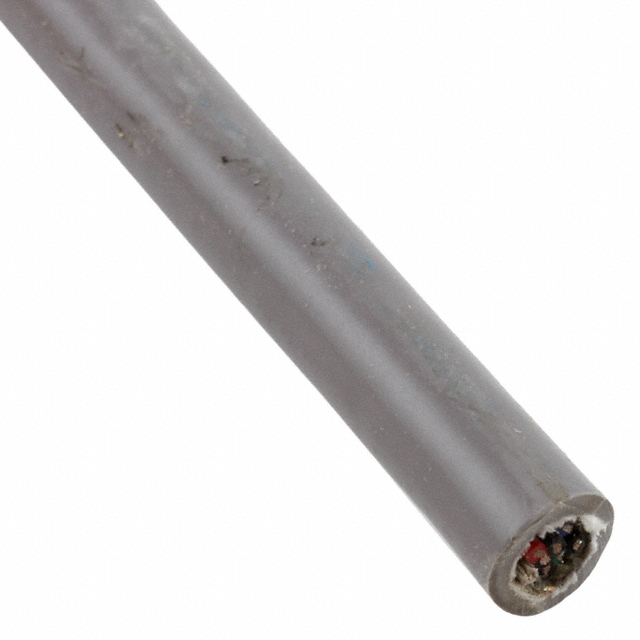

MULTI-CONDUCTOR CABLES 24 AWG 4 PAIR CONDUCTOR 600V SUPRASHIELD PVC PVC, 100 FT SPOOL - SLATE
| Part | Shield Material | Shield Coverage | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Conductor Insulation | Cable Type | Voltage | Length [x] | Length [x] | Jacket (Insulation) Material | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Number of Conductors | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Copper Tinned | 1.016 mm | 0.04 in | Slate | 34 AWG | 10 | ISO 10993 UL Style 2661 | Poly-Vinyl Chloride (PVC) | Multi-Pair | 300 VDC | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire | 7.42 mm | 0.292 in | Braid Foil | 8 | 24 AWG | ||
ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Copper Tinned | 1.016 mm | 0.04 in | Slate | 34 AWG | 10 | ISO 10993 UL Style 2661 | Poly-Vinyl Chloride (PVC) | Multi-Pair | 300 VDC | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire | 7.42 mm | 0.292 in | Braid Foil | 8 | 24 AWG | ||
ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Copper Tinned | 1.016 mm | 0.04 in | Slate | 34 AWG | 10 | ISO 10993 UL Style 2661 | Poly-Vinyl Chloride (PVC) | Multi-Pair | 300 VDC | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire | 7.42 mm | 0.292 in | Braid Foil | 8 | 24 AWG | 304.8 m | 1000 ft | ||
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Copper Tinned | 1.016 mm | 0.04 in | Slate | 34 AWG | 10 | ISO 10993 UL Style 2661 | Poly-Vinyl Chloride (PVC) | Multi-Pair | 300 VDC | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire | 7.42 mm | 0.292 in | Braid Foil | 8 | 24 AWG | 152.4 m | 500 ft |
