ESE-13 Series

Catalog

SWITCH DETECTOR SPST-NO 0.01A 5V

Part	Termination Style	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Operating Position	Actuator Type	Overtravel	Pretravel	Mounting Type	Voltage Rating - DC	Operating Force	Circuit	Switch Function	Features

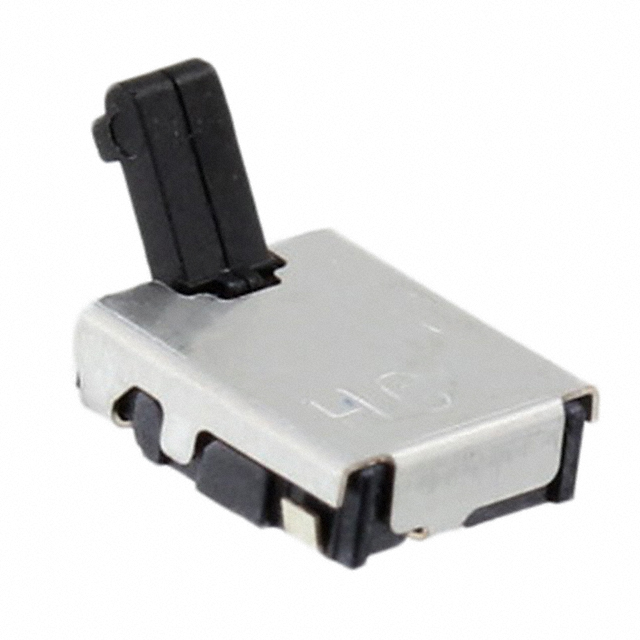

Panasonic Industrial Automation Sales ESE-13V05B	J Lead	50000 Cycles	-10 °C	60 °C	10 mA	15 °	Angled Toggle (Detector)	60 °	15 °	Surface Mount Right Angle	5 V	30 gf	SPST-NO	Off-Mom	Board Guide

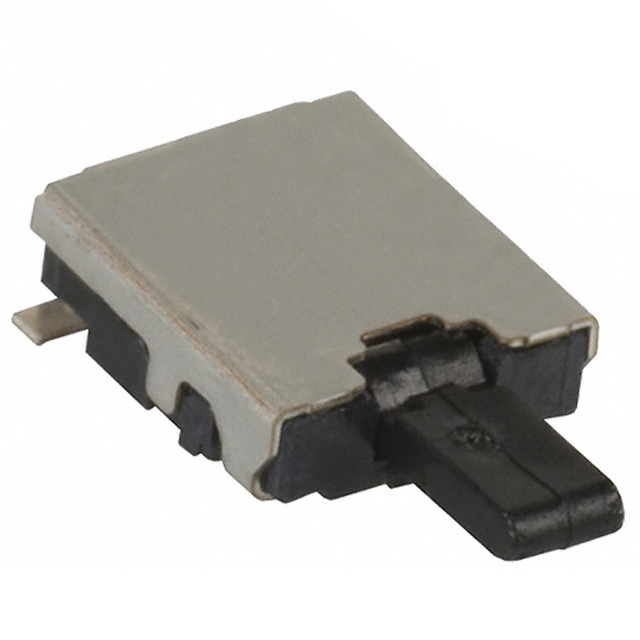

Panasonic Industrial Automation Sales ESE-13H01B	J Lead	50000 Cycles	-10 °C	60 °C	10 mA	15 °	Angled Toggle (Detector)	60 °	15 °	Surface Mount Right Angle	5 V	30 gf	SPST-NO	Off-Mom	Board Guide
Panasonic Industrial Automation Sales ESE-13V05C	SMD (SMT) Tab	50000 Cycles	-10 °C	60 °C	10 mA	15 °	Angled Toggle (Detector)	60 °	15 °	Surface Mount Right Angle	5 V	30 gf	SPST-NO	Off-Mom

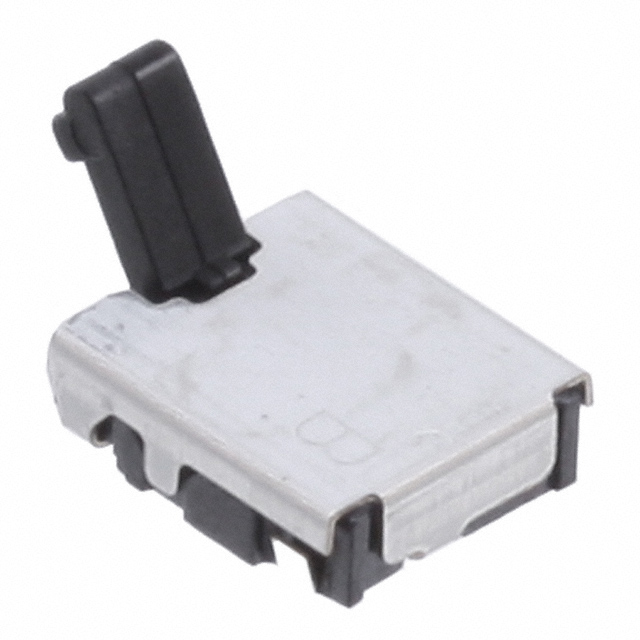

Panasonic Industrial Automation Sales ESE-13V01A	J Lead	50000 Cycles	-10 °C	60 °C	10 mA	15 °	Angled Toggle (Detector)	60 °	15 °	Surface Mount Right Angle	5 V	30 gf	SPST-NO	Off-Mom
Panasonic Industrial Automation Sales ESE-13V05A	J Lead	50000 Cycles	-10 °C	60 °C	10 mA	15 °	Angled Toggle (Detector)	60 °	15 °	Surface Mount Right Angle	5 V	30 gf	SPST-NO	Off-Mom
Panasonic Industrial Automation Sales ESE-13H05C	SMD (SMT) Tab	50000 Cycles	-10 °C	60 °C	10 mA	15 °	Angled Toggle (Detector)	60 °	15 °	Surface Mount Right Angle	5 V	30 gf	SPST-NO	Off-Mom

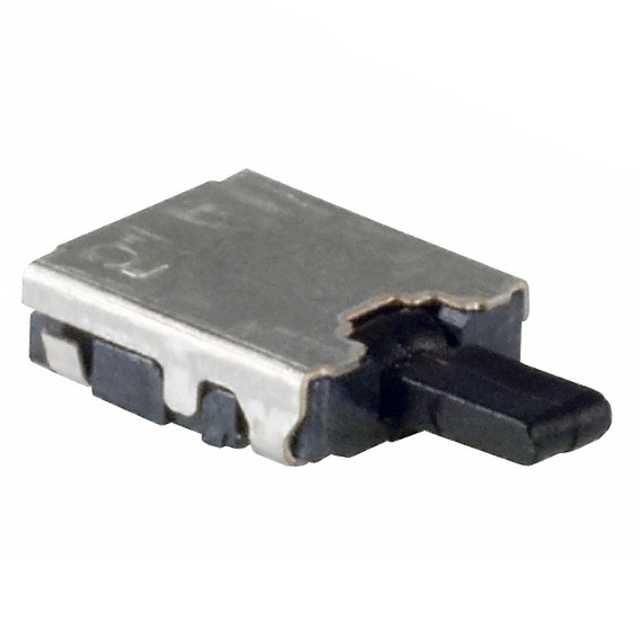

Panasonic Industrial Automation Sales ESE-13H05A	J Lead	50000 Cycles	-10 °C	60 °C	10 mA	15 °	Angled Toggle (Detector)	60 °	15 °	Surface Mount Right Angle	5 V	30 gf	SPST-NO	Off-Mom
