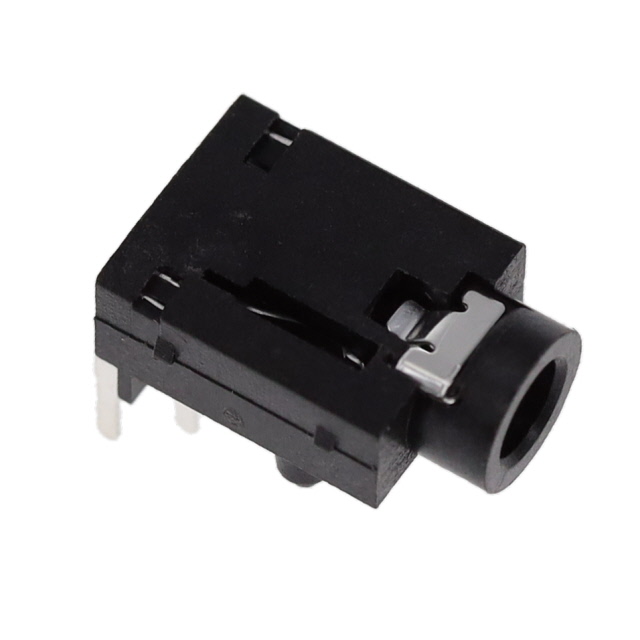

ASJ-195 Series
Manufacturer: Adam Tech
Beta
⌘K
AUDIO JACK
| Part | Current Rating (Amps) | Voltage - Rated | Contact Material | Mating Length/Depth | Mating Length/Depth | Contact Material - Plating | Housing Material | Body Color | Number of Positions/Contacts | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Actual Diameter [diameter] | Actual Diameter [diameter] | Mounting Type | Signal Lines | Connector Type | Shielding | Internal Switch(s) | Termination | Features | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 0.5 A | 30 V | Copper Alloy | 14 mm | 0.551 in | Silver | Thermoplastic | Black | 3 Conductors 6 Positions | 0.125 in | 3.5 mm | 0.141 in | 0.142 in | 3.6 mm | Right Angle Through Hole | Stereo (3 Conductor TRS) | Phone Jack | Unshielded | Two Switches | Solder | Board Guide | -20 ░C | 70 °C | Female | ||
 Adam Tech | 0.5 A | 30 V | Copper Alloy | 14 mm | 0.551 in | Silver | Thermoplastic | Black | 0.125 in | 3.5 mm | 0.141 in | 0.142 in | 3.6 mm | Right Angle Through Hole | Stereo (3 Conductor TRS) | Phone Jack | Unshielded | Single Switch | Solder | Board Guide | -20 ░C | 70 °C | Female | 5 | 3 |
