5002U1 Series
Manufacturer: Belden Inc.
Beta
⌘K

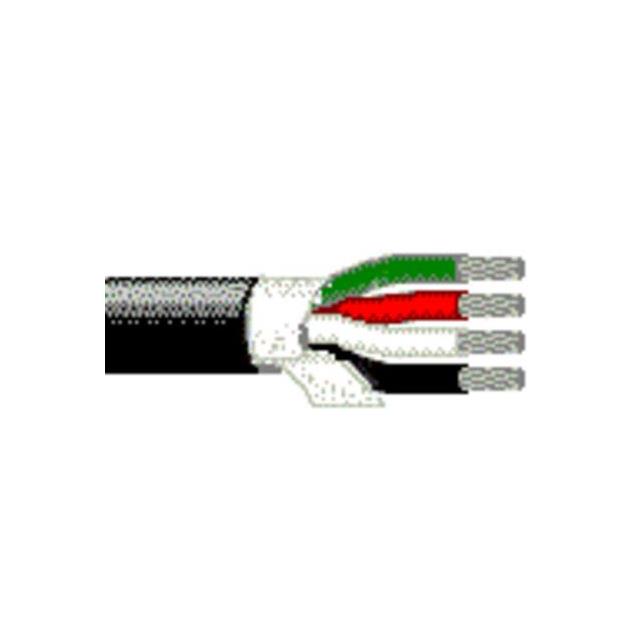

CABLE 4COND 12AWG BLACK
| Part | Length | Length | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Cable Type | Jacket Color | Usage | Wire Gauge | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 304.8 m | 1000 ft | 300 VDC | 0.029 in | 0.737 mm | 4 | UL Style CL3 | 19 | 25 AWG | Poly-Vinyl Chloride (PVC) | 9.58 mm | 0.377 " | Copper Tinned | -20 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Black | Security Sound | 12 AWG | Rip Cord Water-Blocked |
