155-17 Series

Catalog

CONVOLUTED TUBING CLIP, .40" MAX

Part	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Width [x]	Width [x]	Features	Opening Size	Opening Size	Material	Panel Hole Size [Max]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Min]	Height [z]	Height [z]	Type Attributes	Material Flammability Rating	Color	Mounting Type

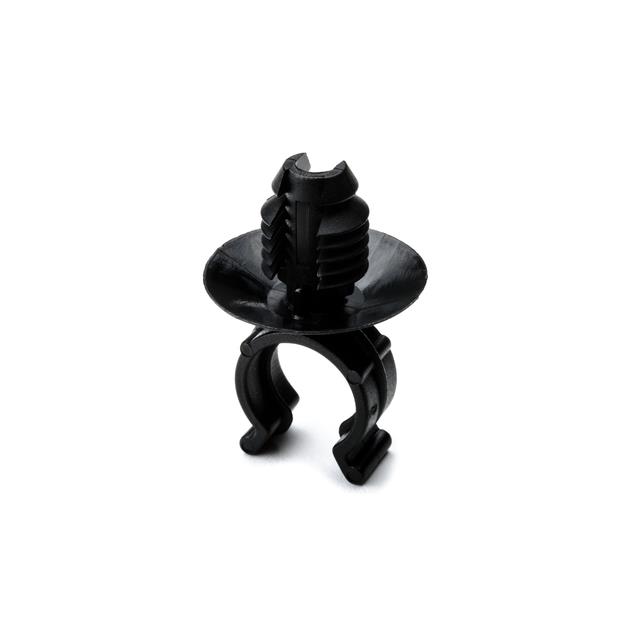

HELLERMANNTYTON 155-17801	0.51 mm	0.02 in	3.05 mm	0.12 in	8 mm	0.315 in	Heat Stabilized Impact Resistant	10.16 mm	0.4 in	Polyamide (PA66) Nylon 6/6	0.35 in	8.89 mm	8.64 mm	0.34 in	0.894 in	22.7 mm	Open	UL94 HB	Black	Cupped Fir Tree
