T0054465 Series

Catalog

TIP SET FOR WMRT 0.7 X 0.4MM

Part	Width	Width	Tip Shape	Height	Height [z]	Tip Type	For Use With/Related Products	Diameter [diameter]	Diameter [diameter]	Height	Width [x]	Width [x]	Width [y]	Length	Length

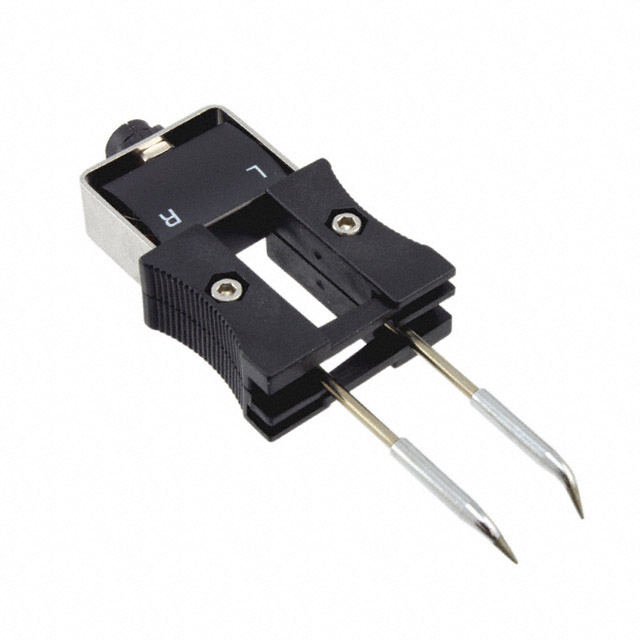

Apex Tool Group T0054465299N	0.7 mm	0.028 in	Chisel	0.4 mm	0.016 in	Tweezer	WMRT WMRT-MS WXMT

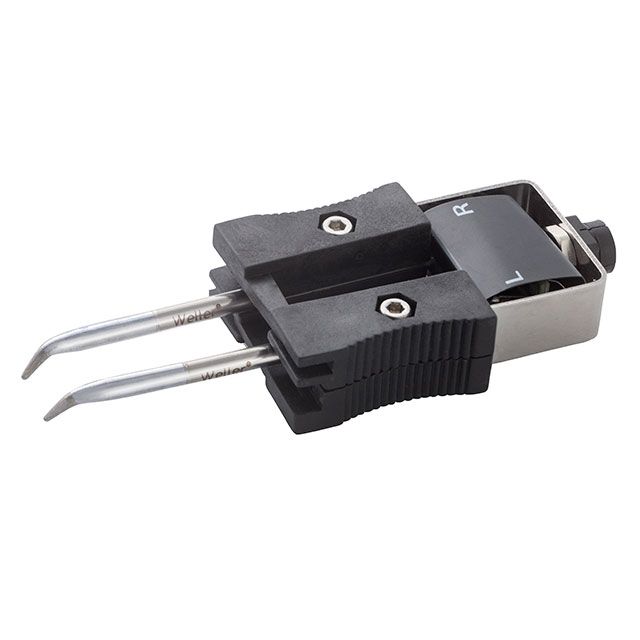

Apex Tool Group T0054465799N			Chisel 45°	0.4 mm	0.016 in	Soldering	WMRT WMRT-MS	0.028 in	0.7 mm

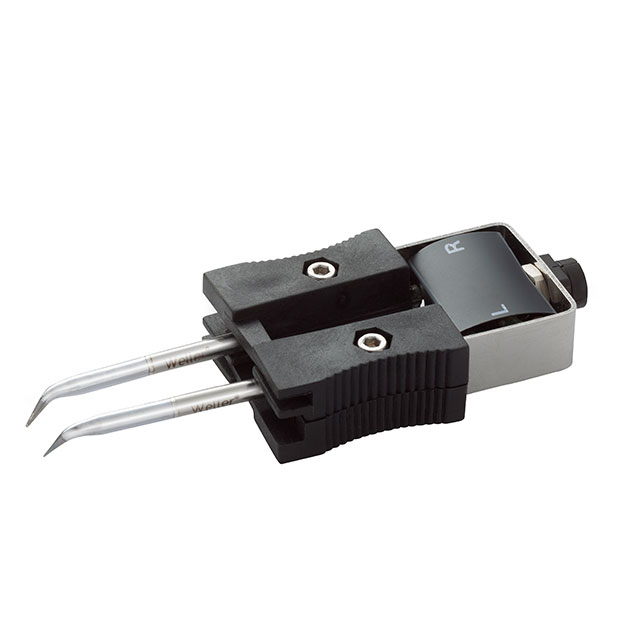

Apex Tool Group T0054465599N			Conical 45°			Soldering	WMRT WMRT-MS	0.016 in	0.4 mm

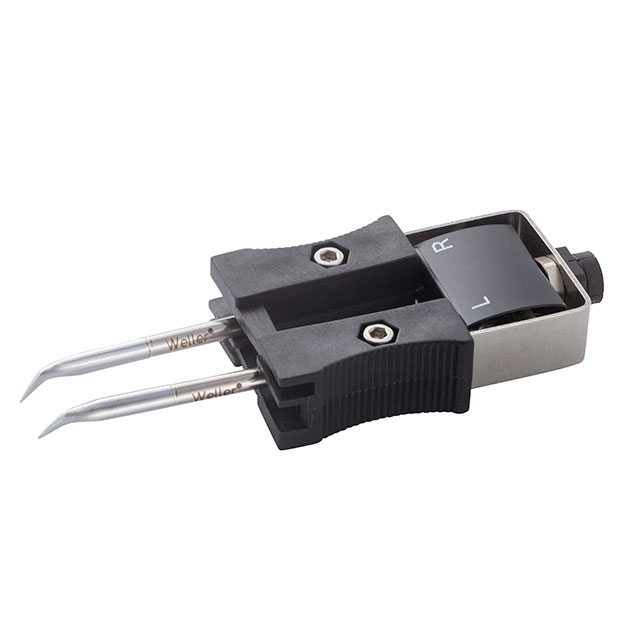

Apex Tool Group T0054465671N			Conical 45°			Soldering	WMRT WMRT-MS	0.008 in	0.2 mm
Apex Tool Group T0054465699N			Conical 45°			Tweezer	WMRT WMRT-MS WXMT	0.008 in	0.2 mm

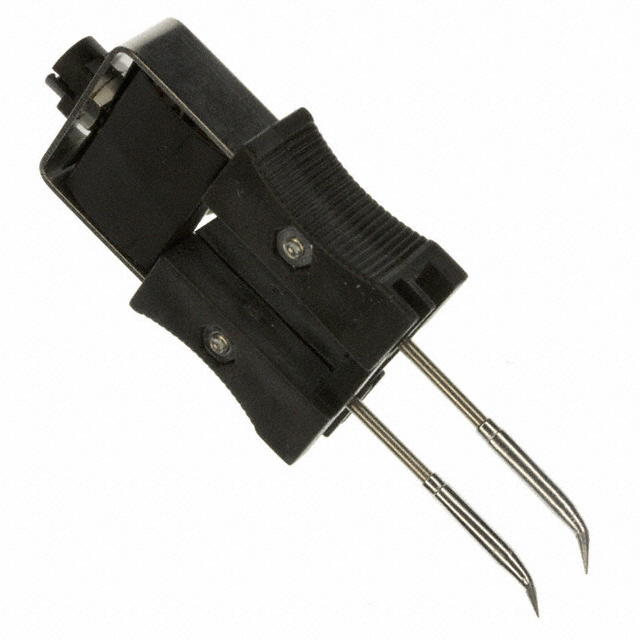

Apex Tool Group T0054465199N			Conical			Tweezer	WMRT WMRT-MS WXMT	0.016 in	0.4 mm

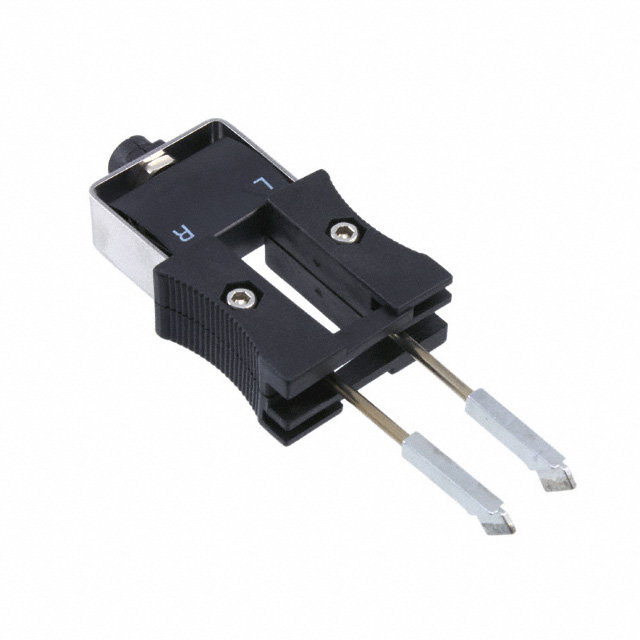

Apex Tool Group T0054465499N			Chisel	1 mm		Tweezer	WMRT WMRT-MS WXMT			0.039 in	6 mm	0.236 in

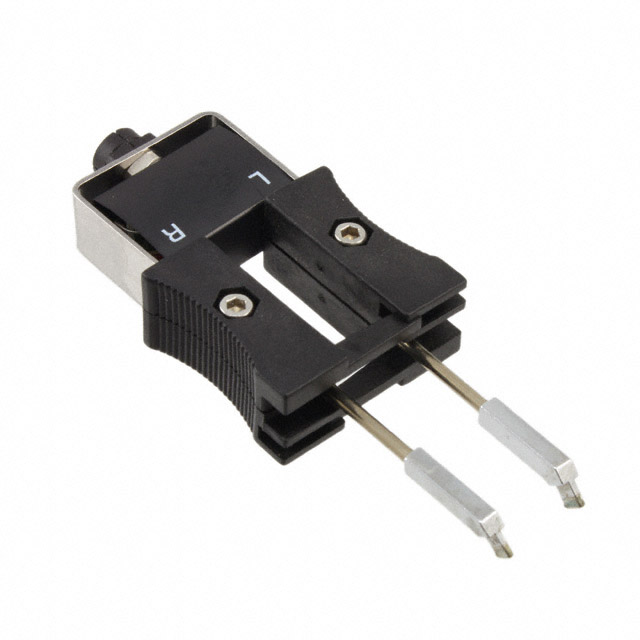

Apex Tool Group T0054465399N	3 mm		Chisel	1 mm		Tweezer	WMRT WMRT-MS WXMT			0.039 in			0.118 in

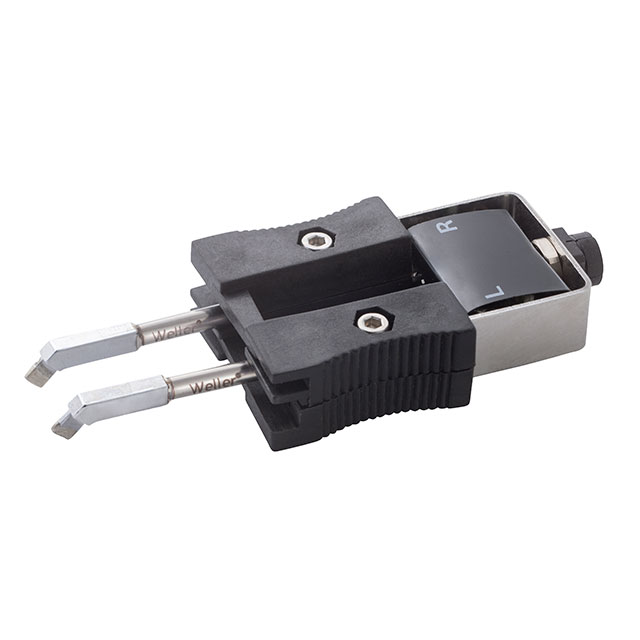

Apex Tool Group T0054465899N	1 mm		Pencil			Soldering	WMRT WMXT					0.039 in		17 mm	0.669 in
