AS22-M570 Series

Catalog

ROTARY ENCODR INCREMENT 2000PPR

Part	Termination Style	Encoder Type	Actuator Type	Orientation	Output Type	Pulses per Revolution	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Broadcom Limited AS22-M570-4T14	Connector	Incremental	Hole for Shaft	User Selectable	Differential Voltage	2000	Chassis Mount	5.5 V	4.5 V

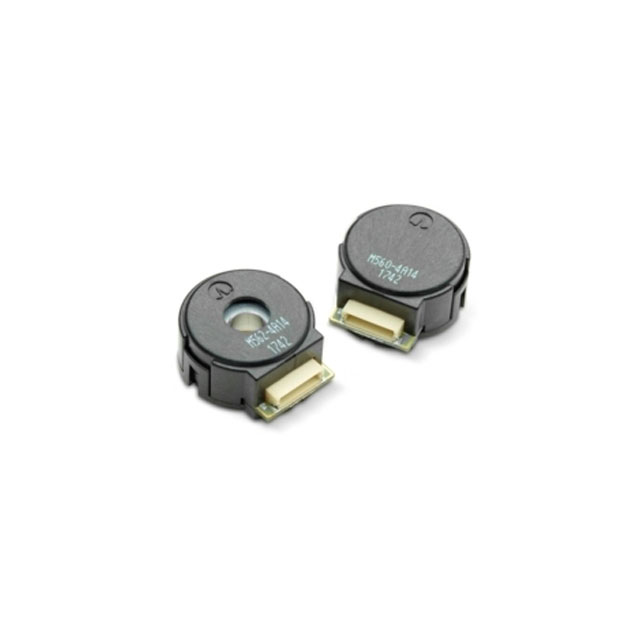

Broadcom Limited AS22-M570-4B14	Connector	Incremental	Hole for Shaft	User Selectable	Differential Voltage	1000	Chassis Mount	5.5 V	4.5 V
Broadcom Limited AS22-M570-4A14	Connector	Incremental	Hole for Shaft	User Selectable	Differential Voltage	500	Chassis Mount	5.5 V	4.5 V
Broadcom Limited AS22-M570-4J14	Connector	Incremental	Hole for Shaft	User Selectable	Differential Voltage	1024	Chassis Mount	5.5 V	4.5 V
Broadcom Limited AS22-M570-4U14	Connector	Incremental	Hole for Shaft	User Selectable	Differential Voltage	2048	Chassis Mount	5.5 V	4.5 V
