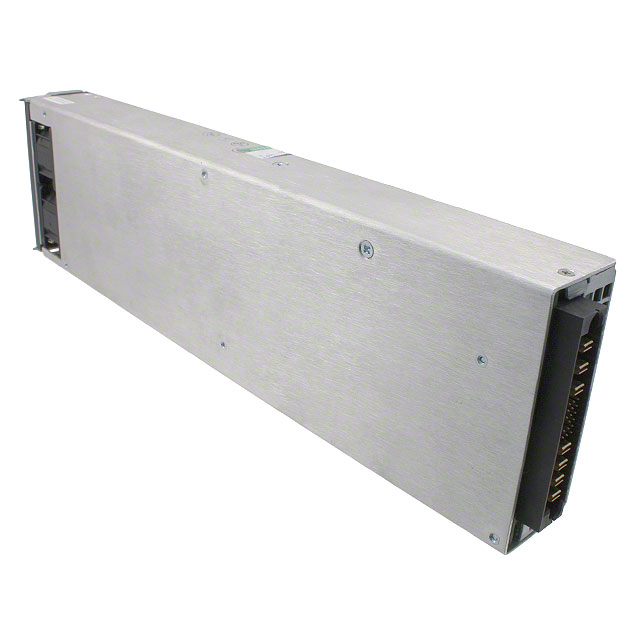

CAR2548 Series
Manufacturer: OmniOn Power™
Beta
⌘K
AC/DC CONVERTER 48V 2500W
| Part | Voltage - Isolation | Efficiency | Number of Outputs | Power (Watts) | Current - Output 1 | Mounting Type | Minimum Load Required | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Features | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 3000 V | 92 % | 1 | 2500 W | 52 A | Rack Mount | Front End | 14.25 " | 362 mm | 101.6 mm | 40.9 mm | 4 " | 1.61 " | 70 °C | -10 °C | 48 V | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | ITE (Commercial) | |
OmniOn Power™ | 3000 V | 92 % | 1 | 2500 W | 52 A | Rack Mount | Front End | 14.25 " | 362 mm | 101.6 mm | 40.9 mm | 4 " | 1.61 " | 70 °C | -10 °C | 48 V | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | ITE (Commercial) | |
OmniOn Power™ | 3000 V | 92 % | 1 | 2500 W | 52 A | Rack Mount | Front End | 14.25 " | 362 mm | 101.6 mm | 40.9 mm | 4 " | 1.61 " | 70 °C | -10 °C | -48 V | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | ITE (Commercial) | |
OmniOn Power™ | 3000 V | 92 % | 1 | 2500 W | 52 A | Rack Mount | Front End | 14.25 " | 362 mm | 101.6 mm | 40.9 mm | 4 " | 1.61 " | 70 °C | -10 °C | -48 V | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | ITE (Commercial) | |
OmniOn Power™ | 3000 V | 92 % | 1 | 2500 W | 52 A | Rack Mount | Front End | 14.25 " | 362 mm | 101.6 mm | 40.9 mm | 4 " | 1.61 " | 70 °C | -10 °C | 48 V | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | ITE (Commercial) | |
OmniOn Power™ | 3000 V | 92 % | 1 | 2500 W | 52 A | Rack Mount | Front End | 14.25 " | 362 mm | 101.6 mm | 40.9 mm | 4 " | 1.61 " | 70 °C | -10 °C | 48 V | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | ITE (Commercial) |
